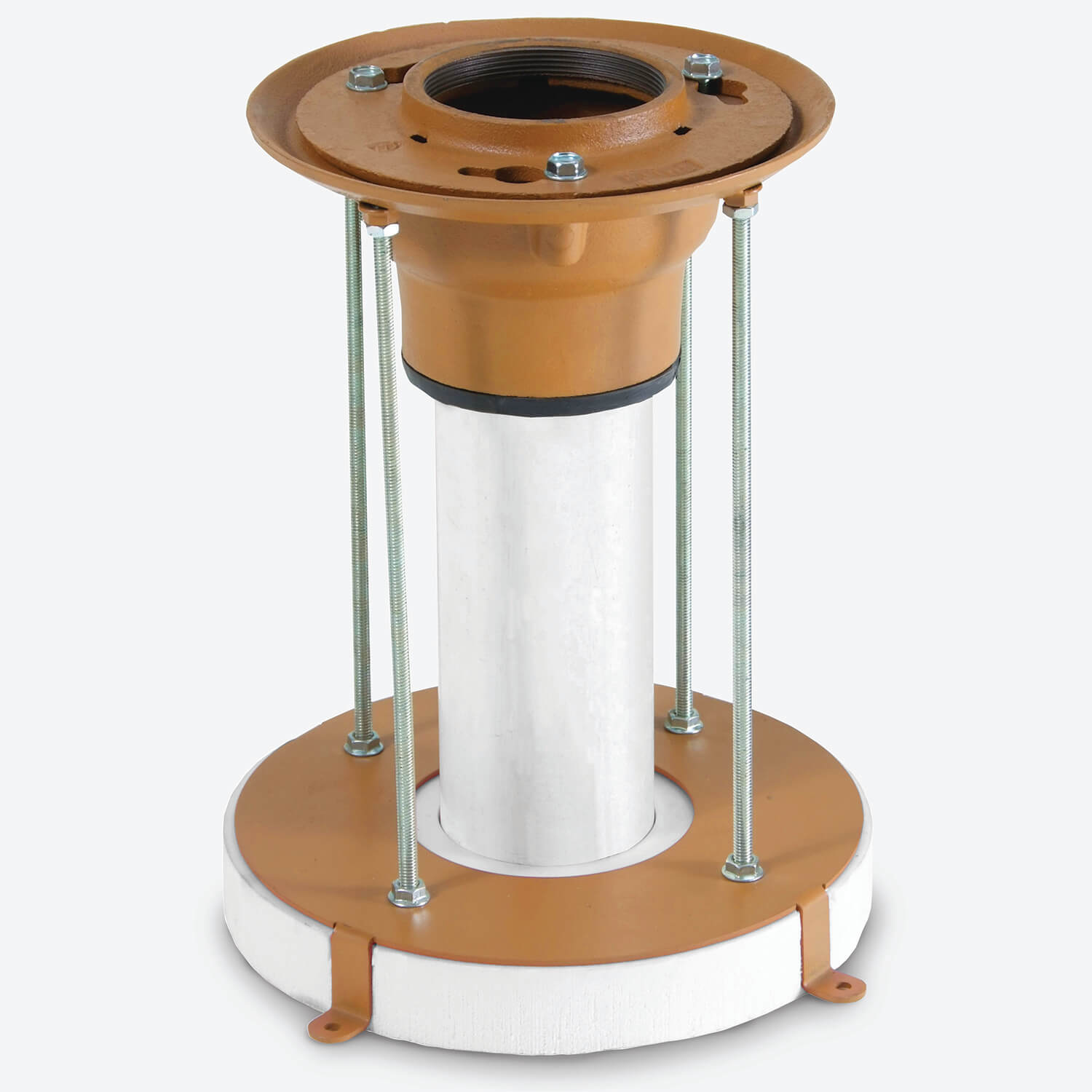

2038Shower Drain with FormIt® Installation Device

Keeps the drain in place before and during the pour, provides quick height and level adjustments

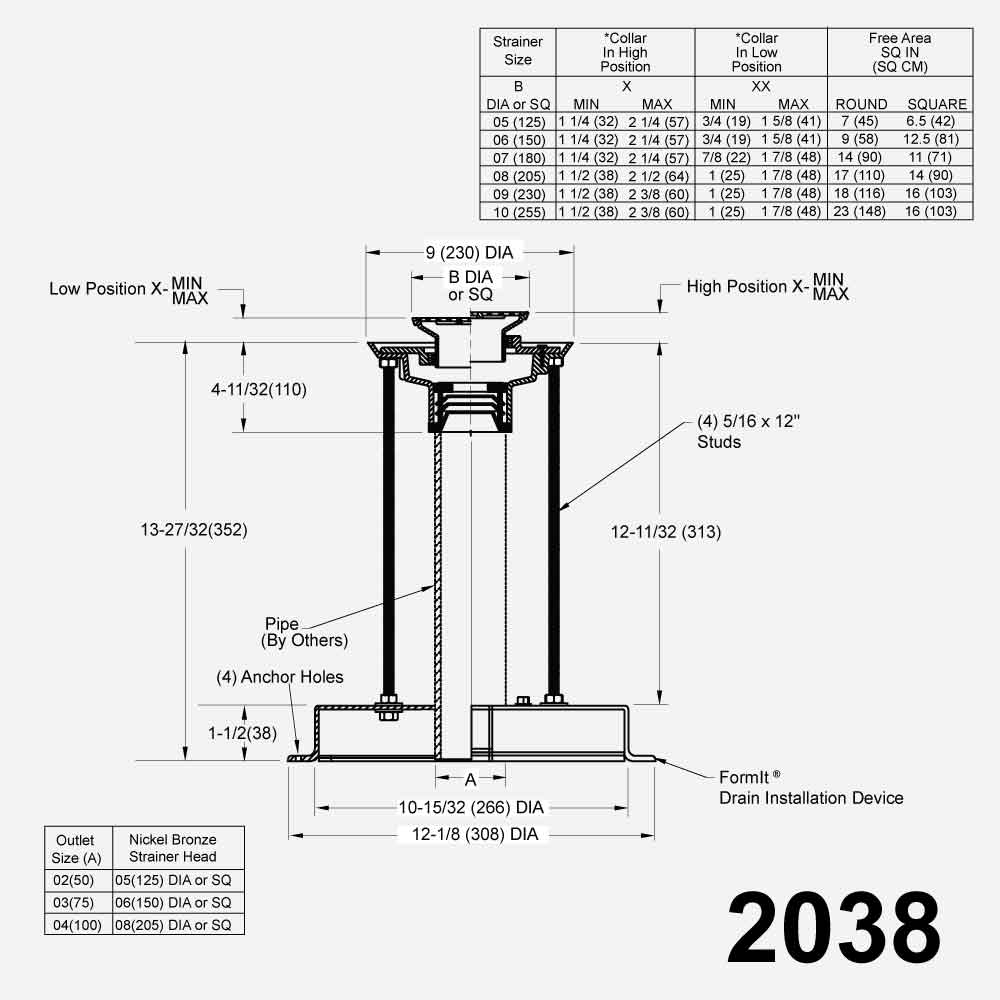

This 9" shower drain was developed to save contractor installation time and speed construction. Secured by four screws, the FormIt® drain assembly, the drain, a removable foam form, and a carriage are screwed in place to decking so they don't shift when concrete is poured, eliminating the need to reset misaligned drains. Once the concrete sets, the foam is easily removed leaving an open path for connection to the waste line. The strainer top can then be made level with adjacent flooring from the topside after finish flooring is installed.

Pro Tip: We designed this labor-saving floor drain stabilizer assembly with multi-story building construction in mind. Multiple floors mean multiple drains and an increased risk of some of those drains falling over or being knocked out of position prior to and during the pour. Simply mount this assembly directly onto the “fly-away” form and you eliminate the need to spend time and manpower going from floor to floor resetting misaligned drains.
