Figure Number: 3482

3482Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Extra Deep Receptor and ARC Rectangular Non-Traffic Top

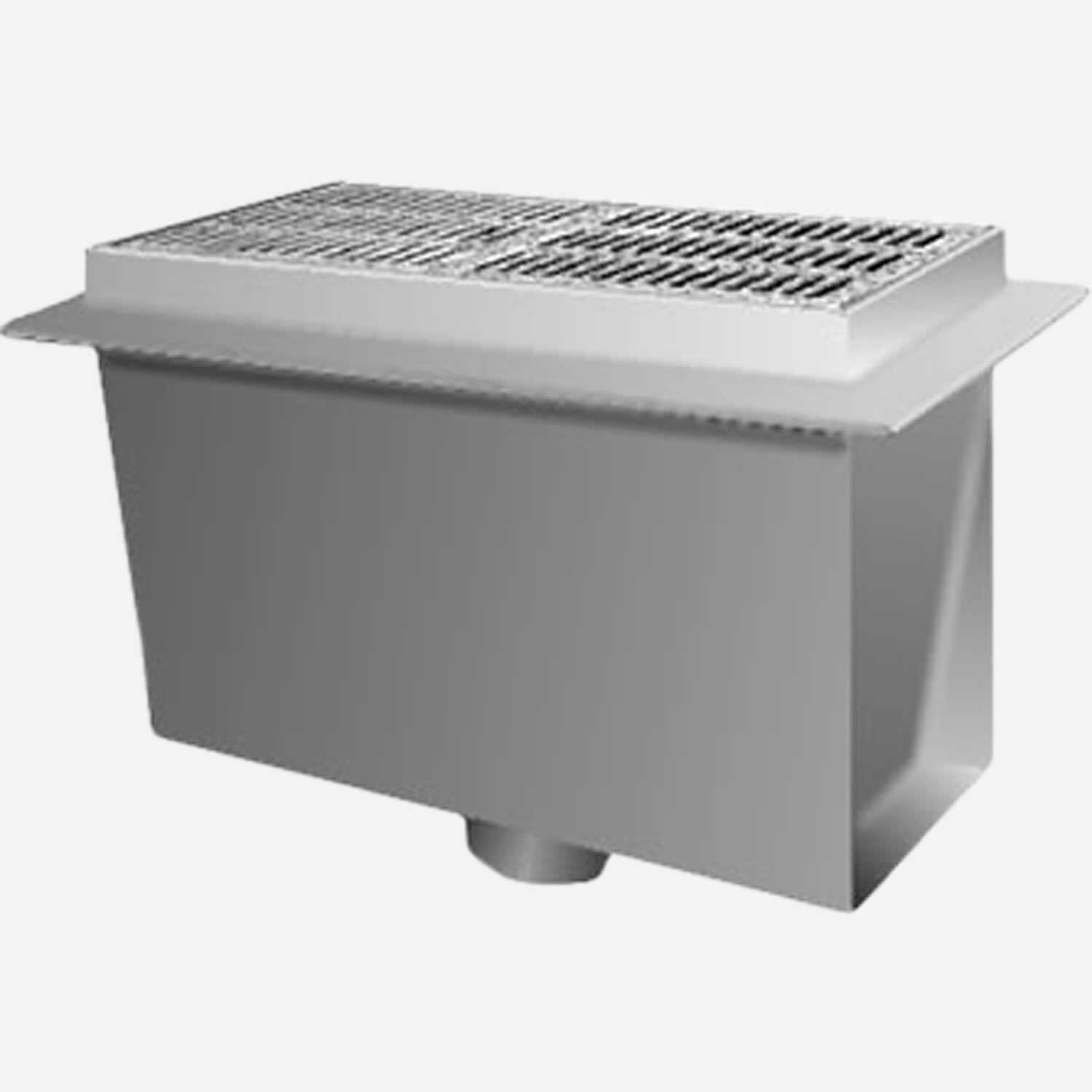

Engineered for long service life in commercial food handling facilities, schools, and hospitals, our 12” by 24” Sani-Ceptor® fabricated steel floor drain is specially coated for acid resistance where the highest standard of sanitation is required. Designed to fit under counters and near walls away from foot or other traffic, the extra deep 17” drain body has an integral flange which accepts an optional flashing clamp permitting installation in many construction types. Covered by a loose set grate, this drain is available with an aluminum dome bottom strainer or stainless steel sediment bucket to keep drain lines debris free.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Flashing Clamp -C, Acid Resistant Coated Flat Bottom Strainer -FBS, Acid Resistant Coated 1/2 Grate (Suffix -12), (2) 3/8” (10) Tappings -TAP, Vandal Proof Screws -U
  • Optional Materials
    All Galvanized -G, All Duco Coated Receptor -CI
  • Product Type
    Sanitary Floor, Area and Indirect Waste Drain
Technical Drawings
3482 Drain CAD DrawingSani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic 24" x 12" Top - 17" Depth Receptor [With Dome Bottom Strainer 3482C | Caulk Outlet; 3482Y | No-Hub Outlet; With Sediment Bucket 3483C | Caulk Outlet; 3483Y | No-Hub Outlet]DWG55 KB
3482 Drain Revit DrawingSani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic 24" x 12" Top - 17" Depth Receptor] With Dome Bottom Strainer 3482C | Caulk Outlet; 3482Y | No-Hub Outlet; With Sediment Bucket 3483C | Caulk Outlet; 3483Y | No-Hub Outlet]RFA468 KB
Literature / Videos
Article: Considerations to be Addressed When Selecting Sanitary Floor DrainsArticle: Considerations to be Addressed When Selecting Sanitary Floor DrainsPDF270 KB
Specifications for Sanitary Floor DrainsSpecifications for Sanitary Floor DrainsDOC327 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Sanitary Floor DrainsSani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data PDF599 KB
Order Guidelines for Sanitary Floor DrainsOrder Guidelines for Sanitary Floor DrainsPDF115 KB
Parts Order Guide for Sanitary Floor DrainsPDF2 MB
Can't find what you are looking for? Get in touch

With Dome Bottom Strainer
3482C | Caulk Outlet
3482Y | No-Hub Outlet

With Sediment Bucket
3483C | Caulk Outlet
3483Y | No-Hub Outlet

SUFFIX FOR OPTIONAL TOP GRATES/COVERS FOR INDIRECT WASTE APPLICATIONS
-10 | Less Grate
-12 | 1/2 Grate
-13 | 3/4 Grate
-14 | Grate with 2-1/2" Square Center Hole
-41 | Solid Cover
-42 | 1/2 Solid Cover
-43 | 3/4 Solid Cover
-44 | Solid Cover with 2-1/2" Square Center Hole
