Figure Number: 9678-100
Contact a Representative

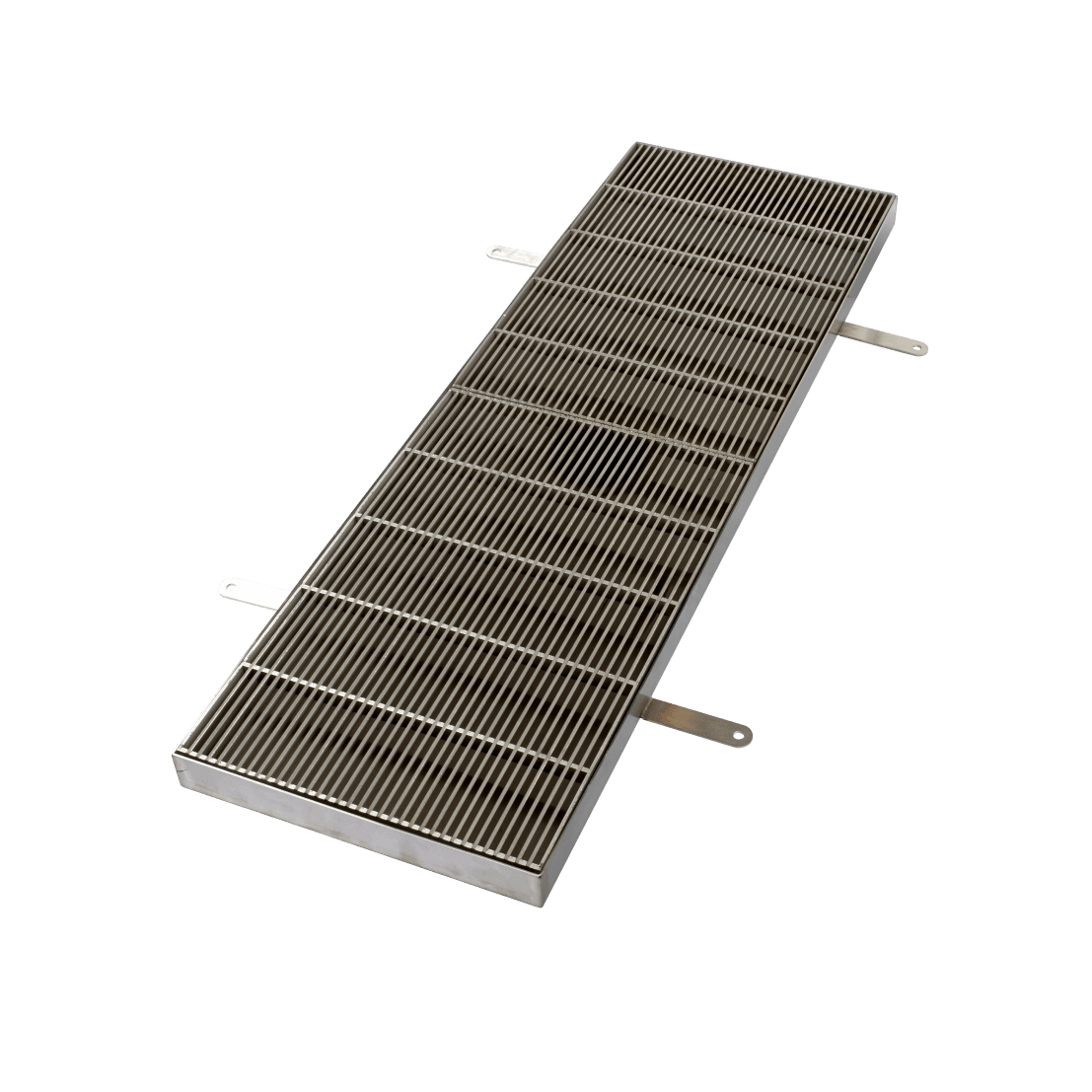

9678-100'Threshold' Stainless Steel Linear Drain - 100 GPM

This stainless steel, linear drain effectively prevents water from cascading floor to floor during a fire emergency. The ADA compliant, heel proof drain and grate is intended for use in front of elevators, in elevator lobbies, stairways, and similar applications to receive and drain water with flow rates up to 100 GPM. At 2" deep, it does not disturb post-tension slabs. This drain complies with California building code 403.6.1, 403.6.2, 3007.4, 3008.4, and San Francisco Fire Code, Section 511.1.4.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Less Anchor Straps - LAS, Bronze Painted Finish on Grates -BPFG, Inside Black Finish -BPF, 6" No Hub Vertical Outlet, Black Powder Coated Interior, DX Flange -DX, Additional Anchor Straps, Specify Outlet Position, Anchor Straps 12 Req’d -AS, 1/2" NPT Trap Primer Connection -TP, (2) 3/8” (10) Tappings -TAP
SubmittalSubmittal 9678-100 Stainless Steel Threshold Drain
View
Literature / Videos
Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)PDF497 KB
Trench Drain Chemical Resistance Guidelines (pdf)The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.PDF154 KB
Threshold Drain Flow Capacity (pdf)Threshold Drain Flow Capacity (pdf)PDF5 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB

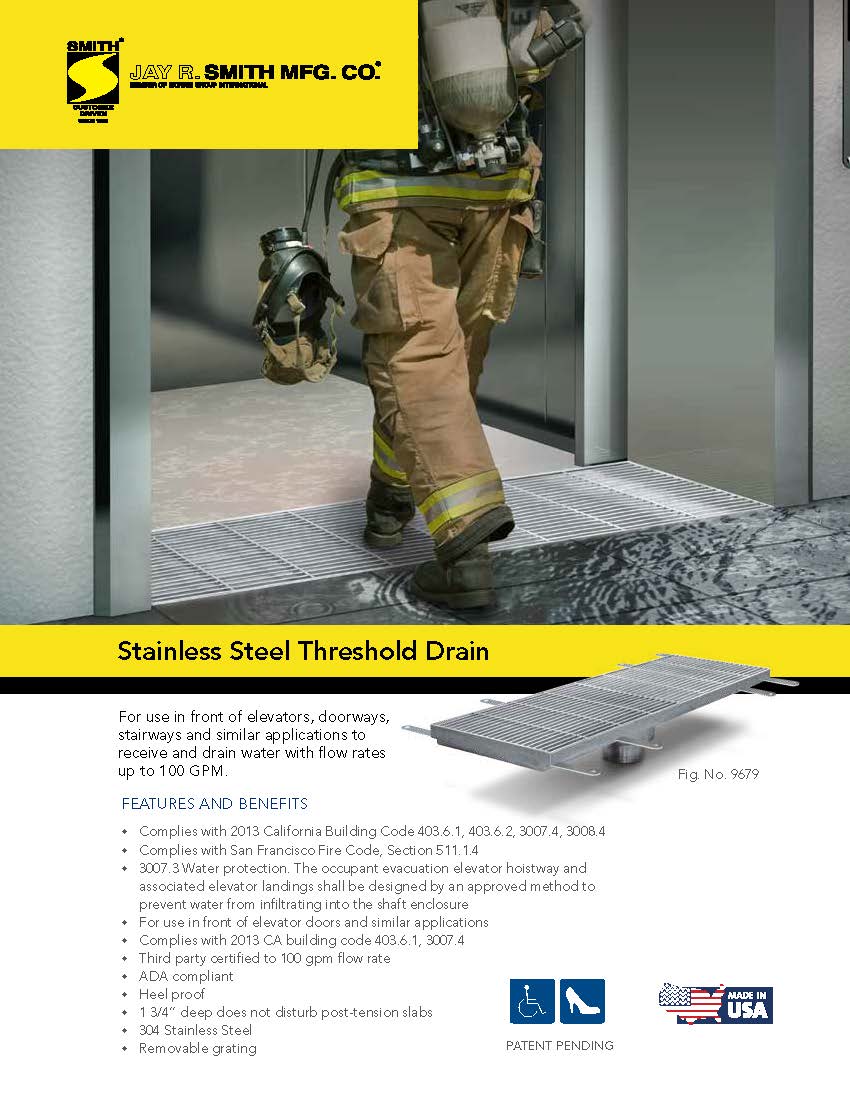

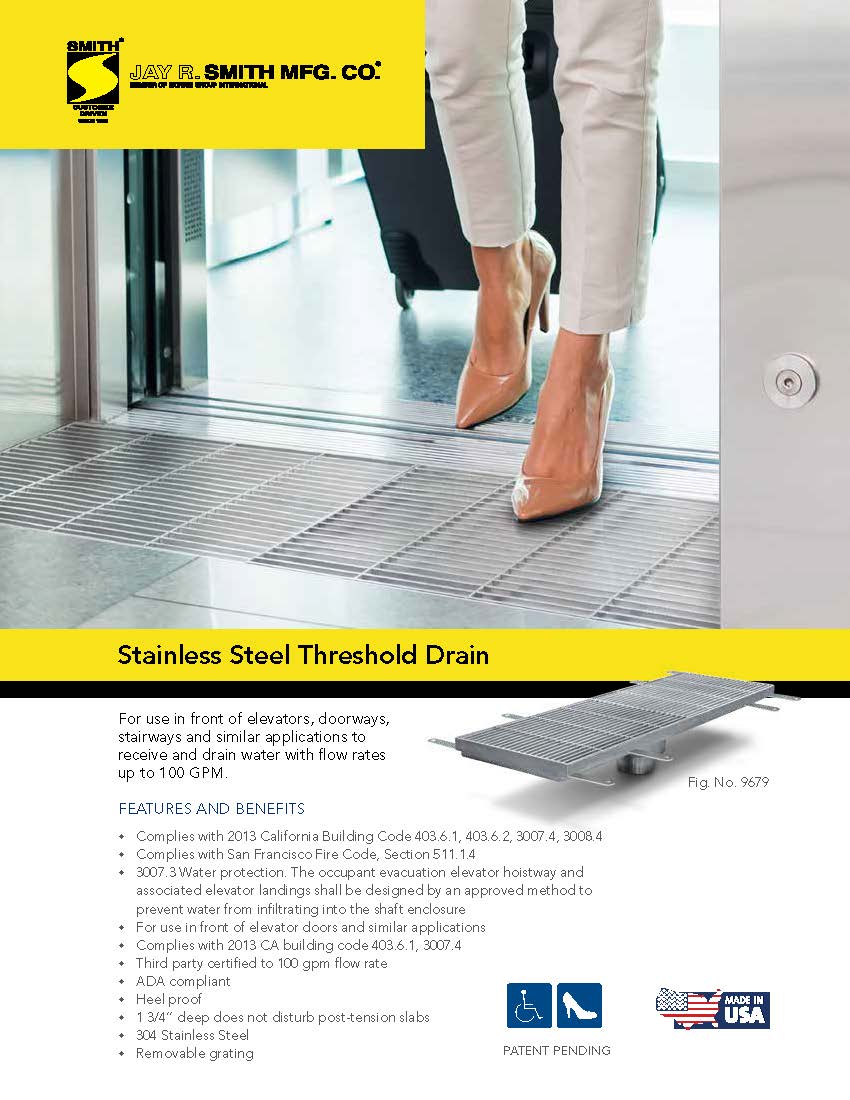

Stainless Steel Threshold Drain Heel Proof Grate Flyer (pdf)Stainless Steel Threshold Drain Heel Proof Grate Flyer (pdf)PDF527 KB
