Figure Number: 1600 Series
Contact a Representative

1600 SeriesCornice - Parapet - Canopy - Gutter Drains

These 6" (150) diam. corrosion resistant Duco coated cast iron gutter drains are designed for installation where a drain is required for connecting to the downspout leader. They are available with flat, low dome or high dome bronze strainers and with bottom, 45° and 90° threaded outlets. A bronze flashing clamp attaches the drain to the gutter lining and is designed to allow easy strainer removal and replacement while leaving the attachment undisturbed.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    4"(100) Deep Body -B4 (Fig. 1610, 1620, 1630 only), Vandal Proof -U - Screws, Stainless Steel Mesh Over Dome -SSM, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron Body -G, Nickel Bronze Top - NB, Polished Bronze Top - PB, Bronze Body -BB
  • Product Type
    Roof Drain
SubmittalSubmittal 1600 Series Drain
View
Technical Drawings
1600 Series Drain CAD DrawingGutter Drains - Bottom Outlet [1610T | ADA Flat Strainer; 1620T | Low Dome; 1630T | High Dome]; 45° Outlet [1640T | ADA Flat Strainer; 1650T | Low Dome; 1660T | High Dome]; Side Outlet [1670T | ADA Flat Strainer; 1680T | Low Dome] DWG292 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
Can't find what you are looking for? Get in touch

Typical models are shown below

1610T

BOTTOM THREADED OUTLET

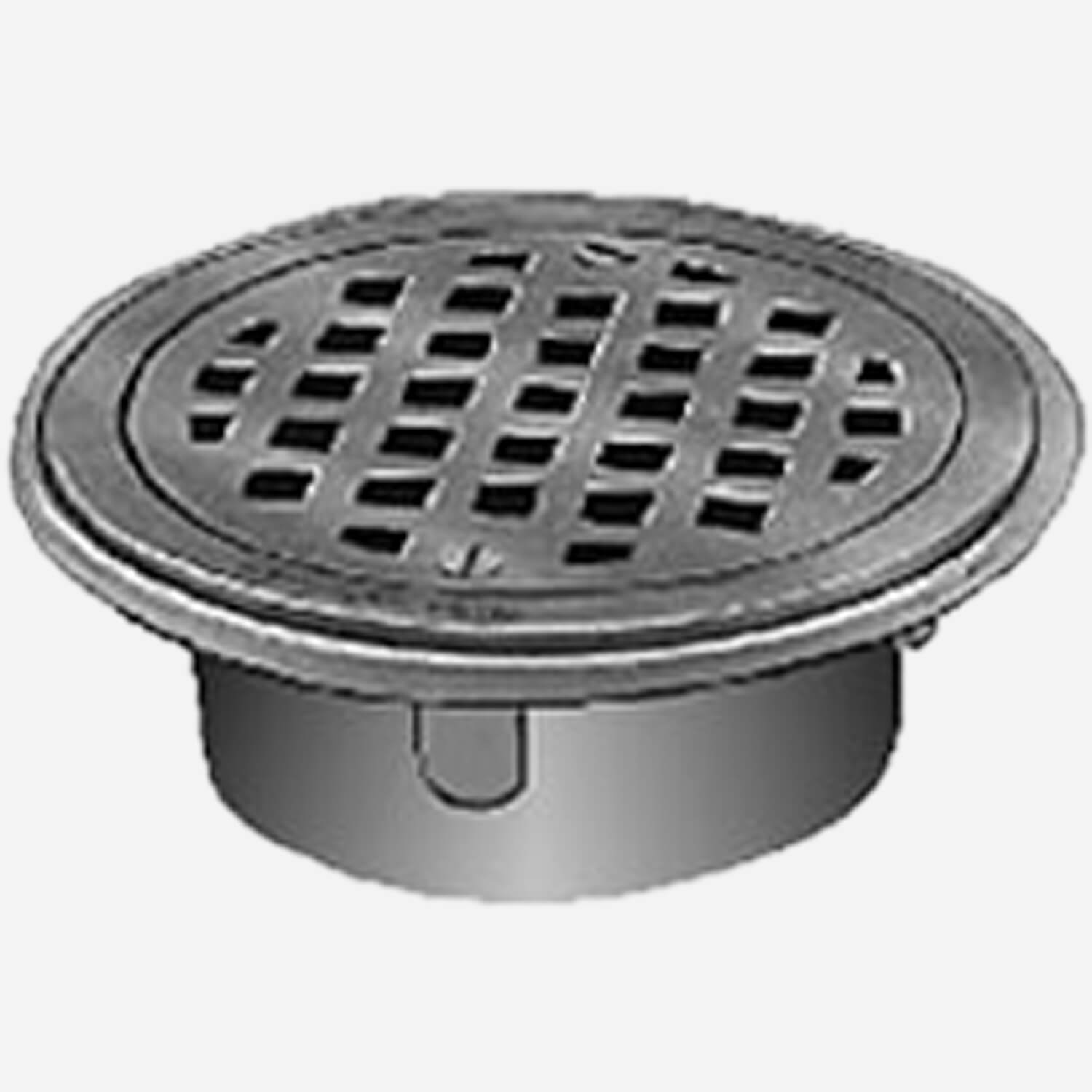

Figure 1610T | ADA Flat Strainer (shown)
Figure 1620T | Low Dome Strainger
Figure 1630T | High Dome Strainer

1650T

45° THREADED OUTLET
Figure 1640T | ADA Flat Strainer

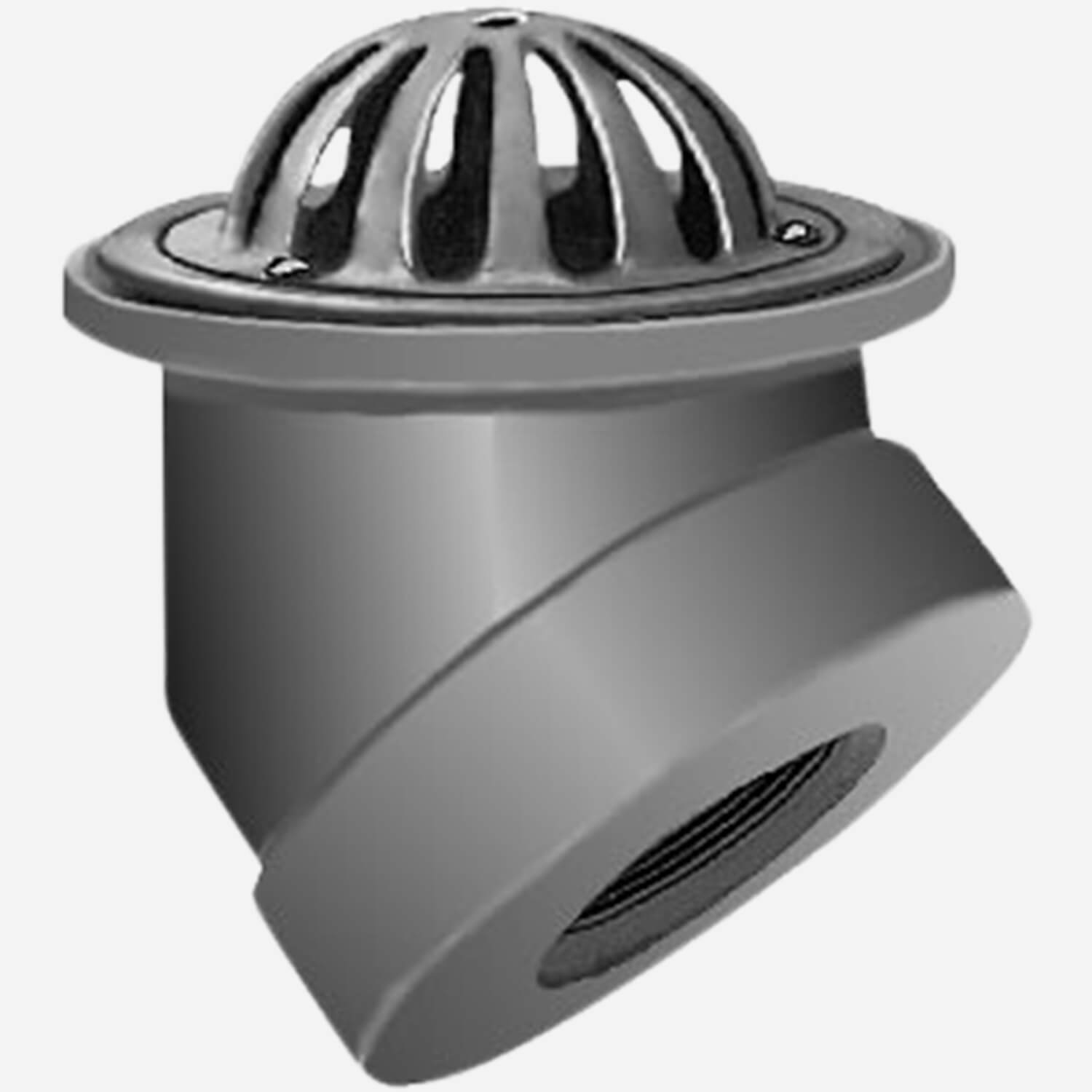

Figure 1650T | Low Dome Strainer (shown)
Figure 1660T | High Dome Strainer

1690T

SIDE THREADED OUTLET
Figure 1670T | ADA Flat Strainer
Figure 1680T | Low Dome Strainger

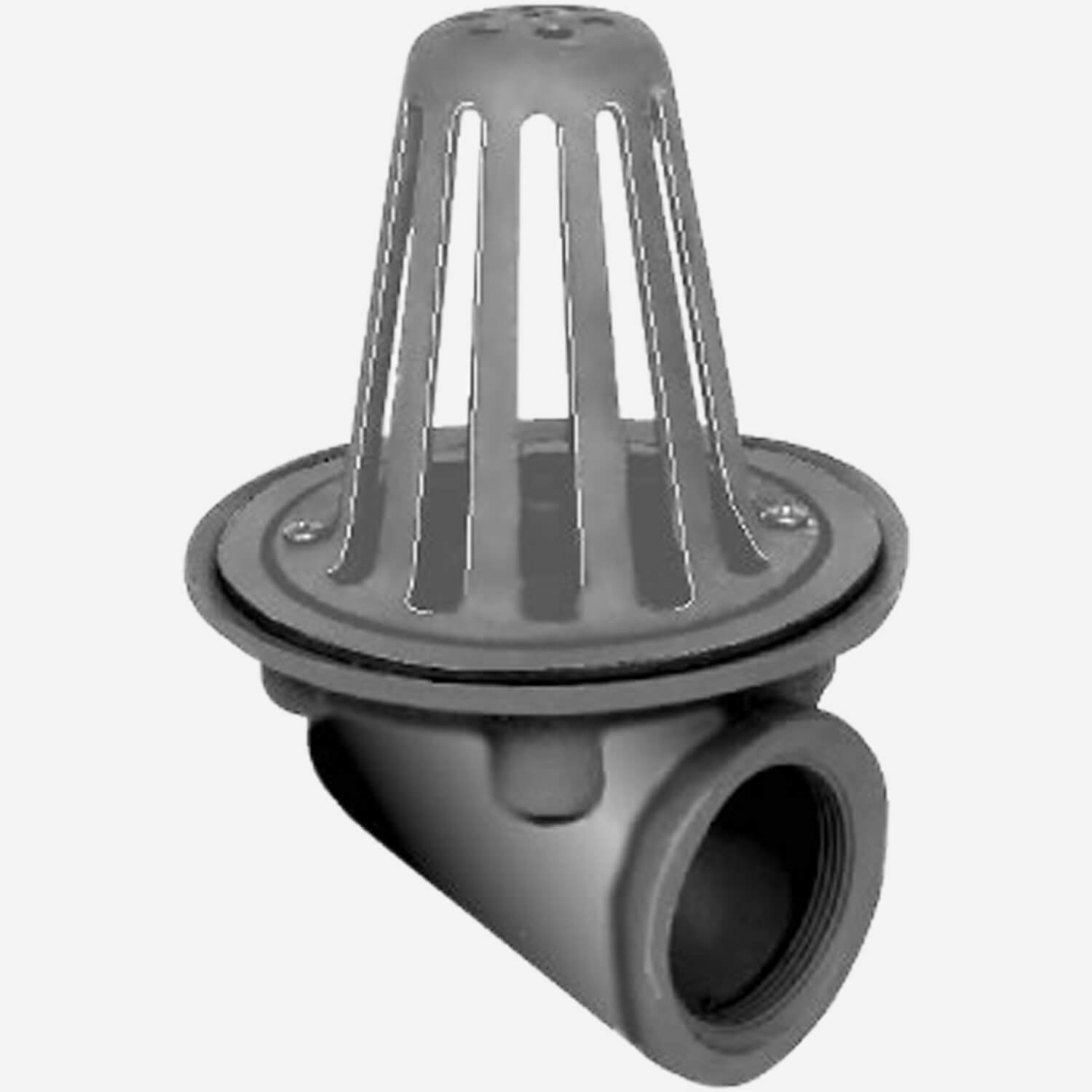

Figure 1690T | High Dome Strainer (shown)
