Figure Number: 9872
Contact a Representative

987212" Wide High Capacity Pre-Sloped Fiberglass Trench Drain System

These 12” wide, high capacity, pre-sloped, fiberglass trench drains reduce installation time and labor. They are ideal for industrial plants, warehousing, bottling plants, food service, and loading docks due to their durability, high strength, light weight, and corrosion-resistance.

Trench Drain Features

  • 9' long, high capacity channel
  • Polyester fiberglass construction
  • Sloped radius bottom surface
  • Duco coated welded steel frame support system with concrete anchors (one pair every 18 inches)
  • Supplied with secured load class "E" ductile iron slotted grate

Accessory Components

  • Catch basins
  • Universal end caps
  • Universal outlet caps
  • 4”, 6” and 8” bottom outlets provide a high degree of flexibility when designing the system
  • Custom outlets are available upon customer request.

Extra Heavy Duty Grate

  • Load Class E: 135,000 lbs - 2,788 psi
  • For commercial solid tire traffic patterns, forklifts and impacts from steel struts or metal wheels

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Bottom Outlet - 4, 6, 8", Horizontal Outlet Inlet 4" (802 thru 812 Channel), Horizontal Outlet Inlet 6" (803 thru 812 Channel), Horizontal Outlet Inlet 8" (805 thru 812 Channel), Universal Shallow Closing End Cap, Universal Deep Closing End Cap, 880 Catch Basin, 660 Catch Basin, Plastic Bucket 880 Catch Basin, Plastic Bucket 660 Catch Basin, (2) 3/8” (10) Tappings -TAP
  • Product Type
    Drainage System
Installation InstructionsInstall Guide (Technical) for Fiberglass Trench Drain
View
SubmittalSubmittal 9872 Trench Drain (pdf)
View
Literature / Videos
MasterSpec: 221319.13, Sanitary Drains (doc)Floor drains, Floor sinks, Trench drains, Channel drainage systems. DOC98 KB
MasterSpec: 221319.13, Sanitary Drains (pdf)Floor drains, Floor sinks, Trench drains, Channel drainage systems. PDF144 KB
Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf)PDF497 KB
Specifications for Trench DrainsSpecifications for Trench DrainsDOC159 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
Trench Drain Flyer (pdf)Trench Drain Flyer (pdf)PDF2 MB
Smith Trench Drain Brochure (pdf)Your complete trench drain source. Solutions and materials PDF13 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Case Study Smith/ACO Trench Drains Custom Drainage Application for Automotive CenterCase Study Smith/ACO Trench Drains Custom Drainage Application for Automotive CenterPDF62 KB
Case Study University of Cincinnati Walkway Application Smith/ACO Trench DrainsCase Study University of Cincinnati Walkway Application Smith/ACO Trench DrainsPDF404 KB

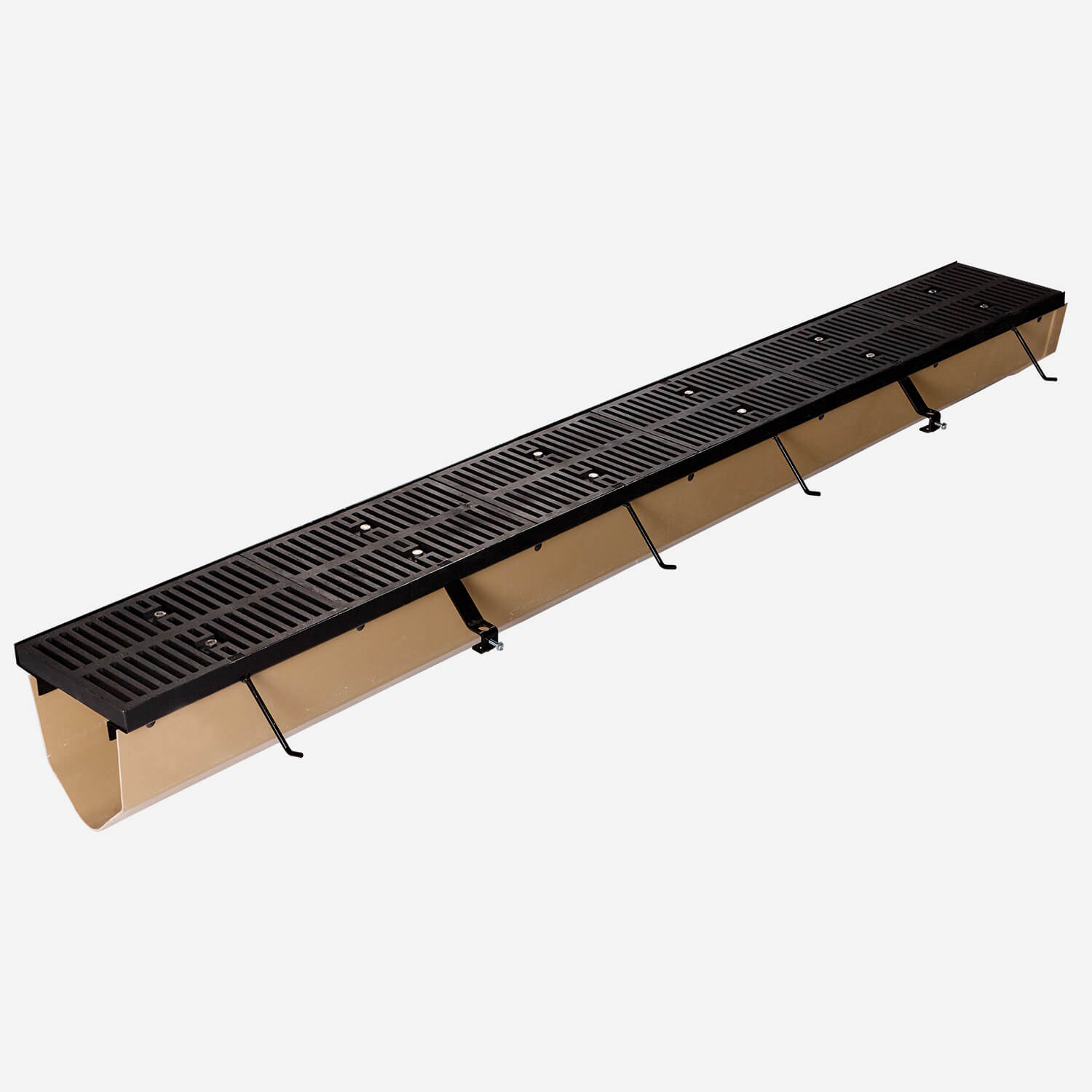

9872 trench drain (hi res image)12" Wide High Capacity Pre-Sloped Fiberglass Trench Drain SystemJPG276 KB

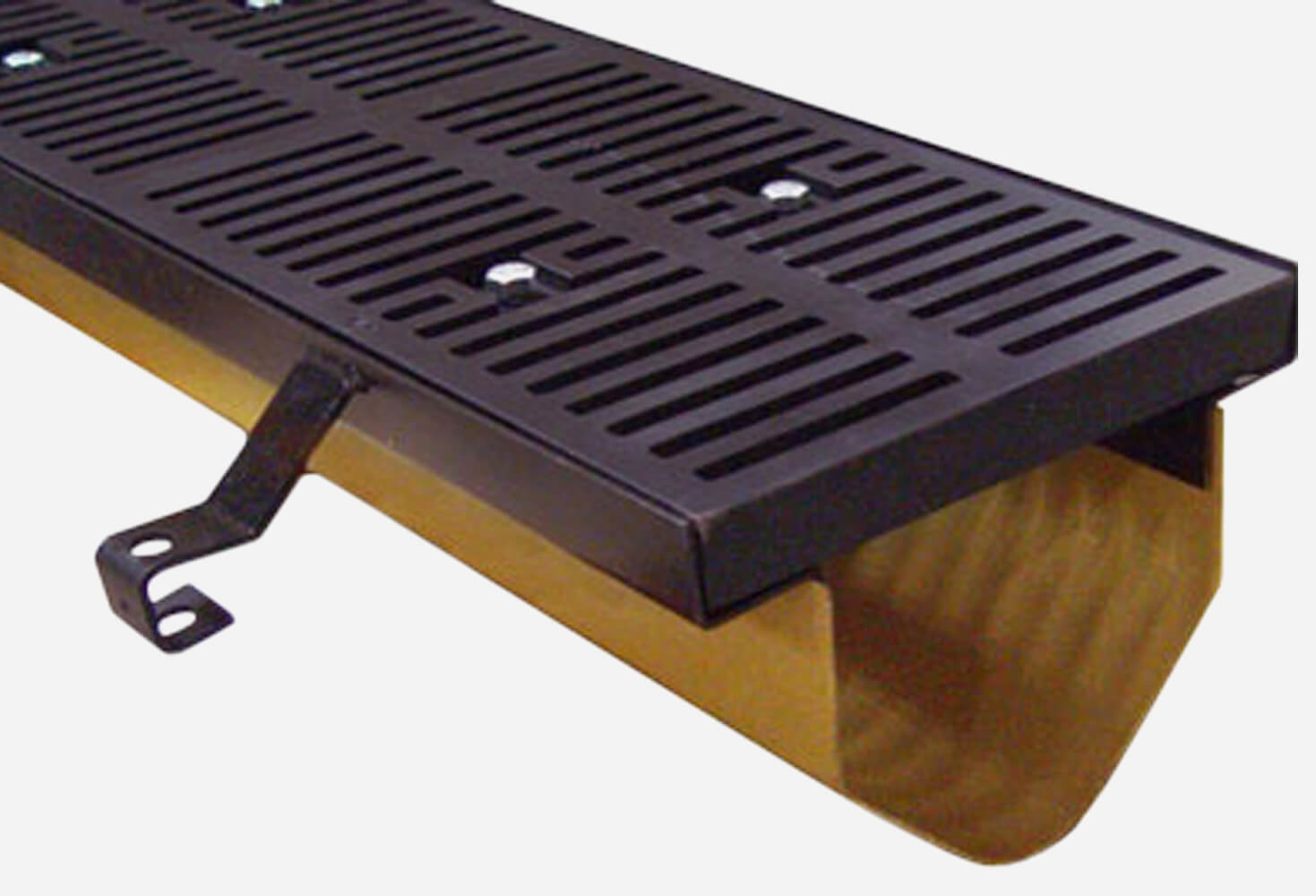

9872-M Grate in 9872 Trench Drain (hi res)Slotted Ductile Iron Grate (Extra Heavy Duty Grate for 9872 Drainage System) in 9872 Trench DrainJPG85 KB
