Figure Number: 2694DA-CTS
Contact a Representative

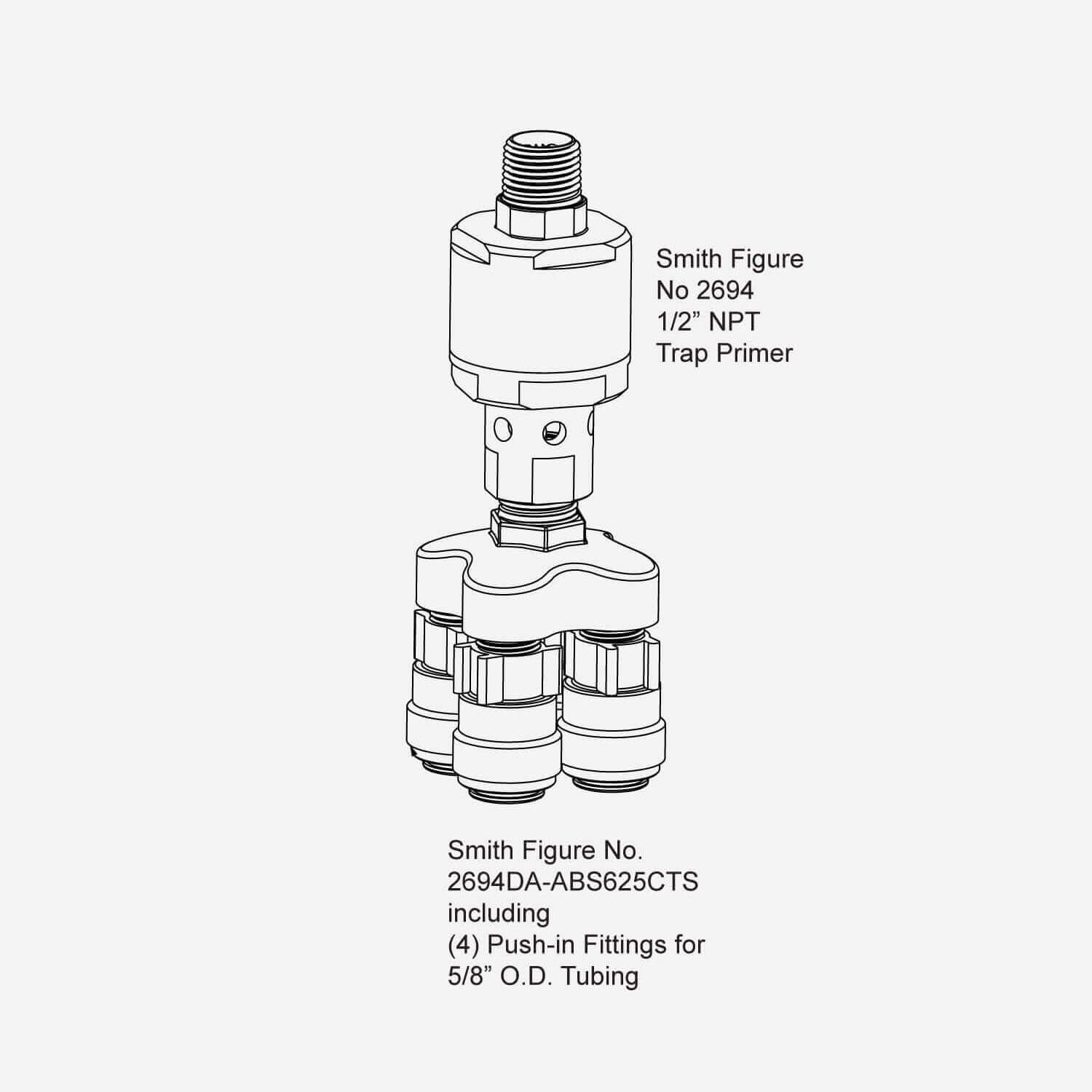

2694DA-CTSCloverleaf Style Trap Priming Distribution Unit with Push-in Fittings

Distribution units connect to trap primers and divide the flow of water evenly in order to prime up to four traps with one trap primer. The Trap Priming Distribution Unit simply and effectively primes up to four floor drains with only one Trap Priming Valve. Unit must be installed level. This distribution is a Cloverleaf Style. It is available in lead-free cast brass or ABS.

The Cloverleaf Style Distribution Unit features:

  • 1/4” Male Sweat, 1/2” Female Sweat & 1/2" NPT Female inlet connections available
  • Flexible branches
  • Copper construction
  • Connects to 2 to 4 trapped drains

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
SubmittalSubmittal 2694DA-CTS Distribution Unit
View
Technical Drawings
DWG 2694DA-CTS Distribution UnitCloverleaf Style Trap Priming Distribution Unit with Push-in FittingsDWG261 KB
RFA 2694DA-CTS Distribution UnitCloverleaf Style Trap Priming Distribution Unit with Push-in FittingsRFA564 KB
Literature / Videos
Smith Fluid Controls Brochure (pdf)Brochure - Trap Primers, Distribution Units and other AccessoriesPDF3 MB
Smith Fluid Controls FlyerFlyer - Trap Primer, Distribution Units and other AccessoriesPDF2 MB
Fluid Controls with Chris RylantFluid Controls with Chris RylantVideo
Fluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringFluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringVideo
Fluid Controls Distribution Units Overview with Chris LevinsFluid Controls Distribution Units Overview with Chris Levins Video
Fluid Controls - Trap Primers & Distribution Units with Chris LevinsFluid Controls - Trap Primers & Distribution Units with Chris LevinsVideo
Can't find what you are looking for? Get in touch
2694DA-625CTS
Lead-Free Cast Brass Body

2694DA-ABS625CTS
ABS Body
