Figure Number: 4250-4264
Contact a Representative

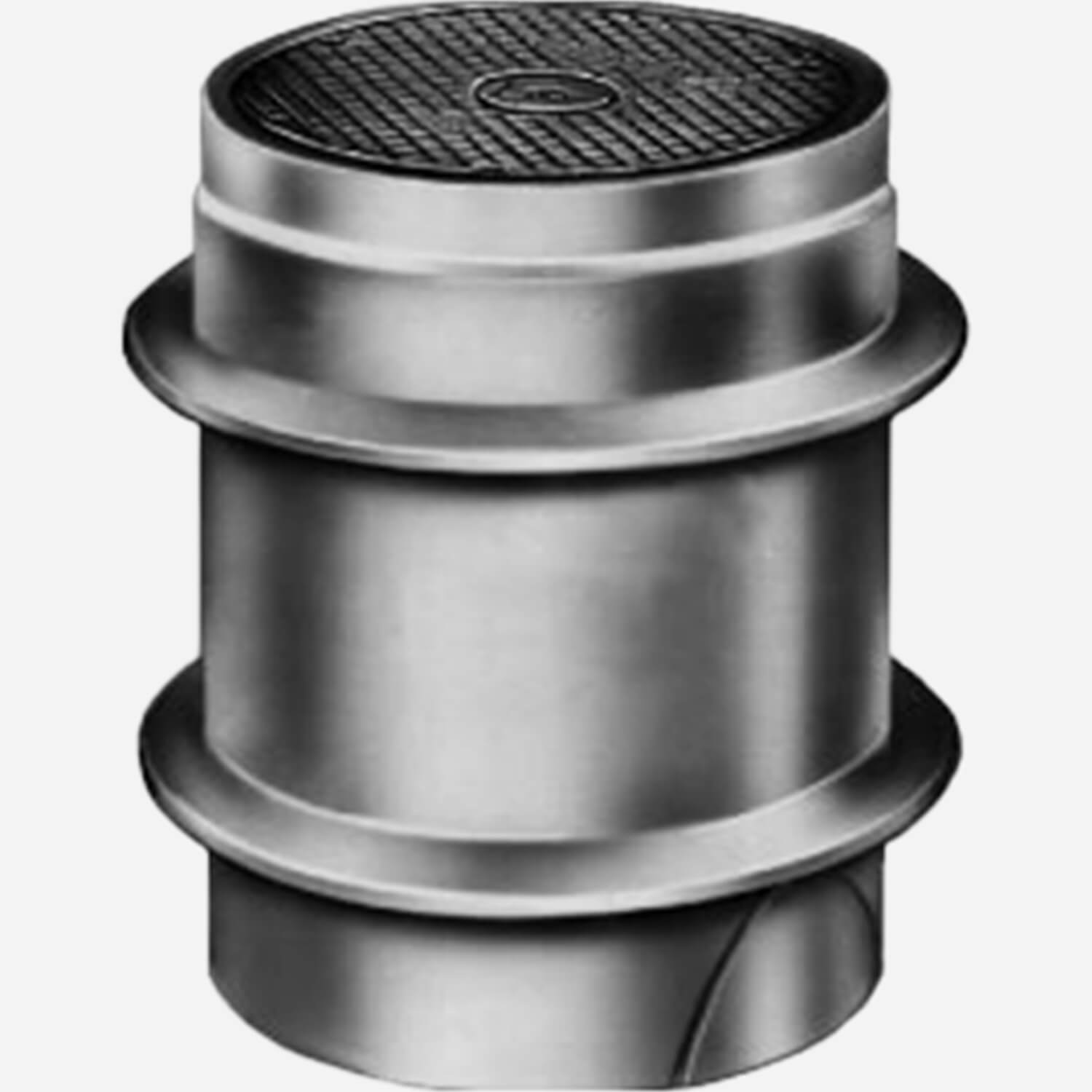

4250-4264Unfinished Floor Cleanouts with Round Flanged Housing and Heavy Duty Cast Iron Cover

The 11" (279 mm) diameter double-flanged housing of this device supports an 8" (200) diameter cleanout and ensures no loading is transmitted to connected pipes. The upper flange suspends the housing and cleanout in areas surfaced with concrete, black top or earth fill. The bottom flange is to be set in a ring of concrete poured below ground in areas surfaced with asphalt or earth fill. Both jacket and cleanout are made of Duco coated cast iron. A secured cast iron cover tops the device. The cleanout’s taper thread plug is a bronze.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Cover Cast with Words "Cleanout" -CO, "Gas Shut-Off" -GSO, "Water Shut-Off" -WSO, Vandal Proof -U - Top, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G
  • Product Type
    Cleanout
SubmittalSubmittal 4250 Cleanout (pdf)
View
Technical Drawings
4250 Cleanout (dwg)Unfinished Floor Cleanouts with Round Flanged Housing and Heavy Duty Cast Iron Cover [No Hub Outlet 4250S, 4251S, 4253S, 4254S; Inside Caulk Outlet 4255C, 4256C, 4258C, 4259C; Speedi-Set 4261L, 4262L, 4263L, 4264L]DWG190 KB
DWG 4253 CleanoutDWG 4253 CleanoutDWG199 KB
4250-4260 Series Cleanout (rfa)Unfinished Floor Cleanouts with Round Flanged Housing and Heavy Duty Cast Iron Cover [No Hub Outlet 4250S, 4251S, 4253S, 4254S; Inside Caulk Outlet 4255C, 4256C, 4258C, 4259C; Speedi-Set 4261L, 4262L, 4263L, 4264L]RFA664 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Cleanouts Flyer (pdf)Flyer for CleanoutsPDF847 KB
Specifications for CleanoutsSpecifications for CleanoutsDOC216 KB
Technical Data for CleanoutsTechnical Data for CleanoutsPDF906 KB
Order Guidelines for CleanoutsOrder Guidelines for CleanoutsPDF120 KB
Parts Order Guide for CleanoutsParts Order Guide for CleanoutsPDF910 KB
Can't find what you are looking for? Get in touch

NO HUB OUTLET
4250S | Gasket Seal - ABS Plug
4251S | Gasket Seal - Bronze Plug
4253S | Taper Thread - Bronze Plug
4254S | Taper Thread - ABS Plug

INSIDE CAULK OUTLET
4255C | Gasket Seal - ABS Plug
4256C | Gasket Seal - Bronze Plug
4258C | Taper Thread - Bronze Plug
4259C | Taper Thread - ABS Plug

SPEEDI-SET®
4261L | Gasket Seal - ABS Plug
4262L | Gasket Seal - Bronze Plug
4263L | Taper Thread - Bronze Plug
4264L | Taper Thread - ABS Plug
