Figure Number: 3038
Contact a Representative

30388-1/2" Square Enameled Floor Sink with FormIt® Drain Installation Device

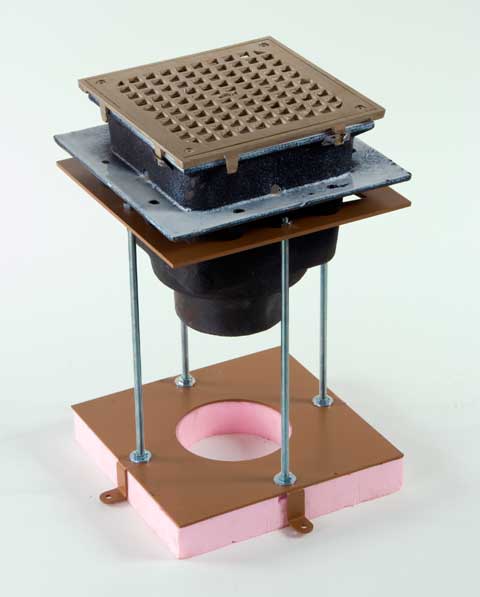

This 8-1/2" (216 mm) square floor sink was developed to save contractor installation time and speed construction. The assembly comprises the cast iron sink, acid-resistant enamel coating, a removable foam form, and a carriage. This sink is topped with a nickel bronze cover and protects drain lines with its aluminum dome bottom strainer.

Secured by four screws, this FormIt® sink assembly is screwed to decking so it doesn't shift when concrete is poured. Once the concrete sets, the foam is easily removed leaving an open path for connection to the waste line. The need to reset misaligned drains is eliminated.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Aluminum Flat Bottom Strainer -FBS, Flashing Clamp -C, Sediment Bucket -B, Vandal Proof -U - (Nickel Bronze Tops Only), NB Rim and 1/2 Grate (Suffix) -12, NB Rim and 3/4 Grate (Suffix) -13, Y NO-HUB, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    All Duco Cast Iron Receptor -CI, All Galvanized Receptor -G
  • Product Type
    Sanitary Floor, Area and Indirect Waste Drain
  • Benefit
    Labor Saving
SubmittalSubmittal 3038 Drain (pdf)
View
Technical Drawings
3038 Series Drain Revit Drawings (rfa)8-1/2" Square Enameled Floor Sink with FormIt® Drain Installation DeviceRFA572 KB
Literature / Videos
Submittal 3038-DID Drain (pdf)FormIt® Drain Installation Device only for 8-1/2" Square Enameled Floor SinkPDF455 KB
Article: Considerations to be Addressed When Selecting Sanitary Floor DrainsArticle: Considerations to be Addressed When Selecting Sanitary Floor DrainsPDF270 KB
Jay R. Smith Contractor Labor Savings and Prefabrication BrochureContractor Labor Saving Products Brochure (pdf)Contractor Labor Saving Products Brochure (pdf)PDF6 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Sanitary Floor DrainsSpecifications for Sanitary Floor DrainsDOC327 KB
3038 Drain (hi-res jpg)8-1/2" Square Enameled Floor Sink with FormIt® Drain Installation DeviceJPG19 KB
Order Guidelines for Sanitary Floor DrainsOrder Guidelines for Sanitary Floor DrainsPDF115 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Can't find what you are looking for? Get in touch

8-1/2" Size Floor Sink with Installation Device [submittal]
3038Y | No-Hub Outlet
3038Y-B | No-Hub Outlet with Bucket

Specify pipe size 02(50), 03(75), or 04(100)

3038-DID | FormIt® Drain Installation Device Only [submittal]
for 8" (203 mm) and 8-1/2" (216 mm) Top Size Floor Sinks
compatible with Figures 3040, 3100, 3410, 3413.
