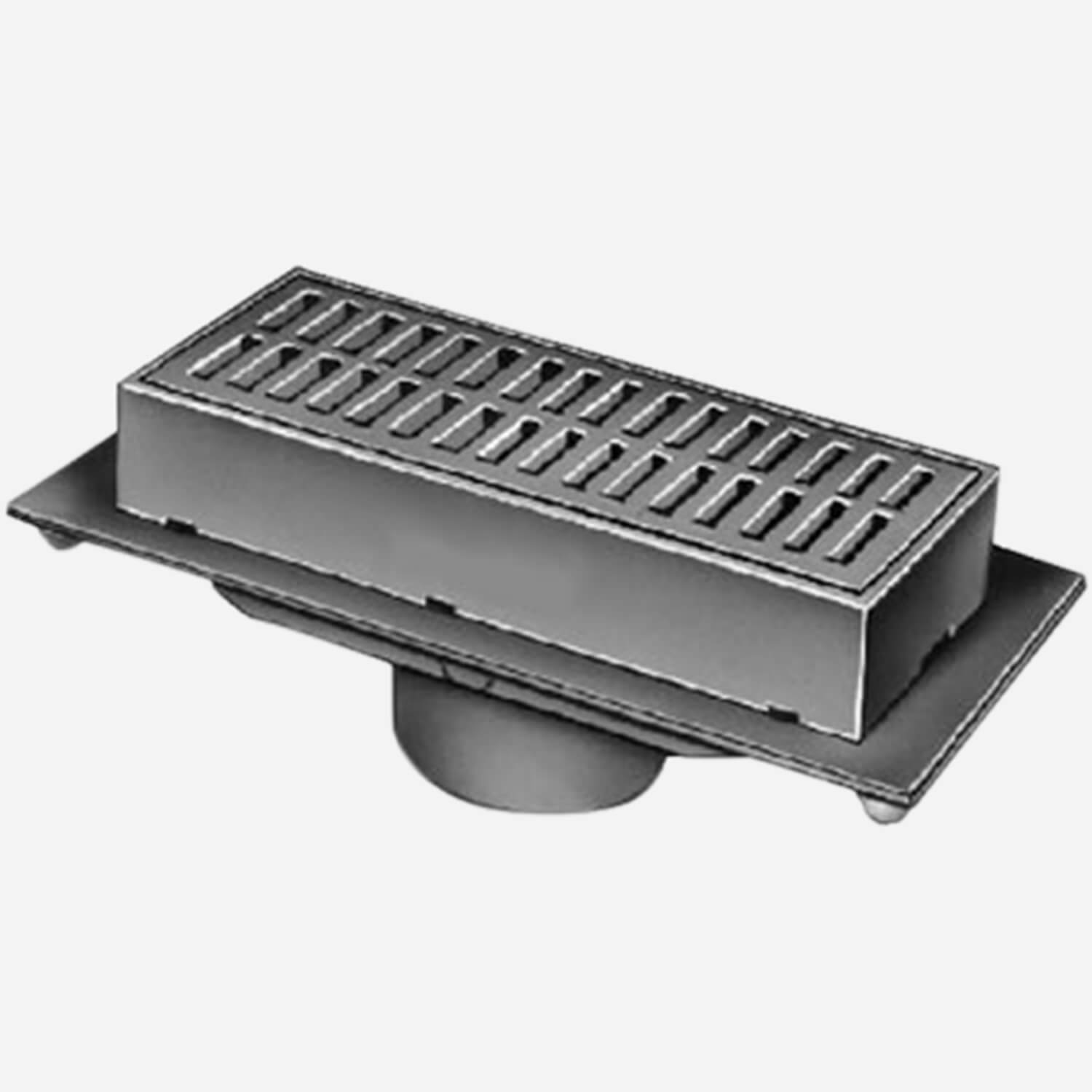

2585Cast Iron Gutter Drain

This rectangular drain is engineered to clear large volumes of water from narrow spaces like gutters and trenches. Topped by a secured cast grate, it is also available with a flashing clamp.

Two Sizes are available:
Figure 2585 - Overall Size: 15-3/4"(400) side to side x 8-1/4"(210) front to back x 5-3/4" (145) height
Figure 2586 - Overall Size: 18-3/4"(475) side to side x 11-1/2"(290) front to back x 5-3/4" (145) height

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Flashing Clamp -C, Less Grate -LG, Vandal Proof Grate - U, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
SubmittalSubmittal 2585 Floor Drain (pdf)
View
Technical Drawings
2585 Floor Drain (dwg)Floor Drain - Gutter - Overall Size: 15-3/4"(400) side to side x 8-1/4"(210) front to back x 5-3/4" (145) height [Figure 2585C | Caulk Outlet; Figure 2585T | Threaded Outlet; Figure 2585Y | No-Hub Outlet]DWG30 KB
2586 Floor Drain (dwg)Floor Drain - Gutter - Overall Size: 18-3/4"(475) side to side x 11-1/2"(290) front to back x 5-3/4" (145) height [Figure 2586C | Caulk Outlet; Figure 2586T | Threaded Outlet]DWG23 KB
2585, 2586 Floor Drain (rfa)Floor Drain - Gutter - Overall Size: 15-3/4"(400) side to side x 8-1/4"(210) front to back x 5-3/4" (145) height [2585C, 2585T, 2585Y] ; Overall Size: 18-3/4"(475) side to side x 11-1/2"(290) front to back x 5-3/4" (145) height [2586C, 2586T]RFA592 KB
Literature / Videos
Submittal 2586 Floor Drain (pdf)Floor Drain - Gutter - Overall Size: 18-3/4"(475) side to side x 11-1/2"(290) front to back x 5-3/4" (145) height [Figure 2586C | Caulk Outlet; Figure 2586T | Threaded Outlet]PDF441 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Can't find what you are looking for? Get in touch

Figure 2585C | Caulk Outlet
Figure 2585T | Threaded Outlet
Figure 2585Y | No-Hub Outlet
Outlet Pipe Size: 2" (50), 3" (75), or 4" (100)

Overall Size: 15-3/4"(400) side to side x 8-1/4"(210) front to back x 5-3/4" (145) height overall size
Top Size: 13-1/4"(335) side to side x 5-3/4"(145) front to back
Secure Grate Size: 12 1/2"(324) side to side x 5"(125) front to back
Free Area: 21.5 square inches (139 square centimeters)
[submittal]

Figure 2586C | Caulk Outlet
Figure 2586T | Threaded Outlet
Outlet Pipe Size: 3" (75), 4" (100), 5" (125) or 6" (150)

Overall Size: 18-3/4"(475) side to side x 11-1/2"(290) front to back x 5-3/4" (145) height
Top Size: 15-1/4"(390) side to side x 7-3/4"(195) front to back
Secure Grate Size 14-1/2(370) side to side x 7"(180) front to back
Free Area: 31 square inches (200 square centimeters)
[submittal]
