Figure Number: 5518-R
Contact a Representative

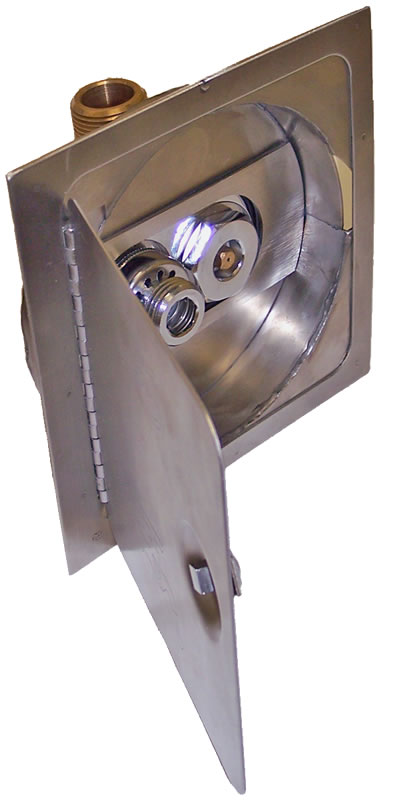

5518-RCored Hole Narrow Wall, Mild Climate Hydrant and Stainless Steel Box

Specifically designed with tilt-up concrete buildings in mind, this hydrant box will cut your wall hydrant installation labor time by at least 75 percent. For installation in interior or exterior walls of a building where a concealed hose connection is desired and there is no danger of freezing. The hydrant features an integral-type vacuum breaker. The stainless steel recessed box conceals the nozzle and operating mechanism. The locking cover prevents unauthorized use.

FOR IRRIGATION PURPOSES ONLY

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Cylinder Lock -CL, Cover Cast with Words "Water" -W, (2) 3/8” (10) Tappings -TAP
  • Product Type
    Hydrant
  • Compliance/Certifications
    NSF/ANS/CAN 61, NSF/ANSI/CAD 372
Installation InstructionsInstall Guide 5518, 5518-R Hydrant (pdf)
View
SubmittalSubmittal 5518-R Hydrant (pdf)
View
Technical Drawings
5518-R Hydrant CAD DrawingRound Cored Hole Narrow Wall, Mild Climate Hydrant and Stainless Steel BoxDWG242 KB
Literature / Videos
MasterSpec: 221119, Domestic Water Piping Specialties (doc)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsDOC262 KB
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsPDF208 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
Specifications for HydrantsSpecifications for HydrantsDOC178 KB
5518-R Hydrant (hi res jpg)Round Cored Hole Narrow Wall, Mild Climate Hydrant and Stainless Steel BoxJPG36 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
Smith Hydrant Overview Chris Rylant (video)Overview of Smith HydrantVideo
