Figure Number:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Expansion Joint (Specify Fig. 1710) - (Fig. 1010 Only), Extension -E - (Specify Height), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1010 Only), LXH Speedi-Set® Extra Heavy - 02(50), 03(75), 04"(100) Sizes Only (Fig. 1010 Only), NO-HUB Adaptor - Fig. 1020 Only (Specify Fig. 2646Y), Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Longer Center Screw - (Specify Length) -LS, Roof Deck Plate -RDP
  • Optional Materials
    Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron Dome -CIDG, Galvanized Cast Iron -G - Body & Collar, Rough Bronze Dome -RBD, Stainless Steel -SS - (Specify Fig. 9780)
  • Product Type
    Roof Drain
SubmittalSubmittal 1010, 1020 Roof Drain (pdf)
View
Technical Drawings
1020 Roof Drain [dwg]Large General Purpose Roof Drain - Low Profile Dome, Side Outlet [1020C | Caulked Side Outlet; 1020T | Threaded Side Outlet; (shown 02, 03, 04 pipe size vs 05, 06 pipe size)] also shown 1010C | Caulked Bottom Outlet and 1010Y | No-Hub Bottom Outlet DWG221 KB
1010DEK Sleeve and Plate (dwg)Top Mount Drain Elevator Sleeve and Deck Plate for Large General-Purpose Roof Drain; Used to elevate the Figure 1010 type roof drains on top side of roof deck to compensate for insulation thickness [1010DEK | Cast Iron Sleeve and Deck Plate]DWG484 KB

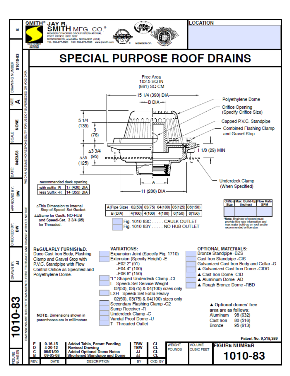

1010-E-W Roof Drain (dwg)Large Drain for Insulated “Built-Up Membrane Roof [1010C-E-W | Caulk Bottom Outlet; 1010Y-E-W | No-Hub Bottom Outlet] DWG125 KB
1010-83 Roof Drain [dwg]15-1/4" Flow Regulating Roof Drain [1010-83C | Caulked Bottom Outlet; 1010-83Y | No-Hub Bottom Outlet] DWG158 KB
1010-DEP Roof Drain (dwg)Large General-Purpose Roof Drain – 15-1/4” Diameter Low-Profile Dome with Deck Extension Plate [1010C-DEP | Caulk Bottom Outlet; 1010T-DEP | Threaded Bottom Outlet; 1010Y-DEP | No-Hub Bottom Outlet]DWG86 KB
1010 Roof Drain (dwg)Large General Purpose Roof Drain - Low Profile Dome [1010C | Caulked Bottom Outlet; 1010Y | No-Hub Bottom Outlet] DWG271 KB
1010 Roof Drain (rfa)Large General Purpose Roof Drain - Low Profile Dome [1010C | Caulked Bottom Outlet; 1010Y | No-Hub Bottom Outlet; 1020C | Caulked Side Outlet; 1020T | Threaded Side Outlet] RFA272 KB
Literature / Videos
Submittal 1010DEK Sleeve and Plate (pdf)Top Mount Drain Elevator Sleeve and Deck Plate for Large General-Purpose Roof Drain; Used to elevate the Figure 1010 type roof drains on top side of roof deck to compensate for insulation thickness [1010DEK | Cast Iron Sleeve and Deck Plate]PDF494 KB
Submittal 1010-E-W Roof Drain (pdf)Large Drain for Insulated “Built-Up Membrane Roof [1010C-E-W | Caulk Bottom Outlet; 1010Y-E-W | No-Hub Bottom Outlet] PDF274 KB
Submittal 1010-R Plate (pdf)Roof Drain Sump Receiver Plate 1010-R | 24" x 24" Plate PDF146 KB
Submittal 1010-83 Roof Drain (pdf)15-1/4" Flow Regulating Roof Drain [1010-83C | Caulked Bottom Outlet; 1010-83Y | No-Hub Bottom Outlet]PDF369 KB
Submittal 1010-E, 1020-E Roof Drain (pdf)Large General-Purpose Roof Drain – Low-Profile Dome [Fig. 1010C-E | Bottom Caulk Outlet; Fig. 1010Y-E | Bottom No-Hub Outlet; Fig. 1020C-E | Side Caulk Outlet; Fig. 1020Y-E | Side No-Hub Outlet] PDF753 KB
Submittal 1010-DEP Roof Drain (pdf)Large General-Purpose Roof Drain – 15-1/4” Diameter Low-Profile Dome with Deck Extension Plate [1010C-DEP | Caulk Bottom Outlet; 1010T-DEP | Threaded Bottom Outlet; 1010Y-DEP | No-Hub Bottom Outlet] PDF2 MB

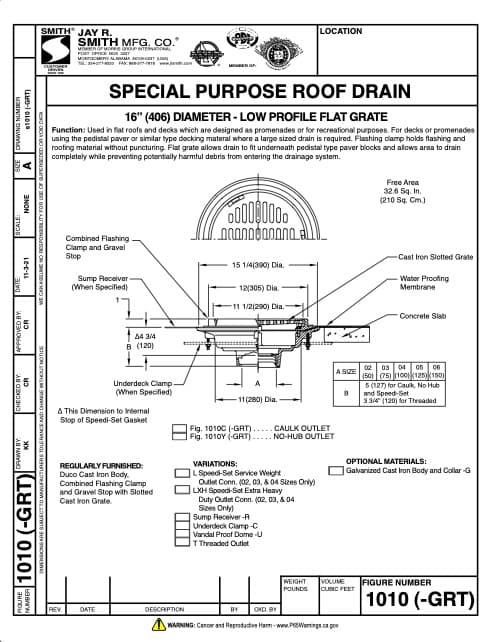

Submittal 1010-GRT Roof Drain (pdf)Large Roof Drain - 16” Diameter Low-Profile Flat Grate [1010C-GRT | Caulk Bottom Outlet; 1010Y-GRT | No-Hub Bottom Outlet]PDF708 KB
Canadian Submittal 1010-E-C2 Roof Drain (pdf)Large General-Purpose Roof Drain – Low-Profile Dome, Secondary Flashing Clamp, Four 1/4“ Seepage Openings [Fig. 1010C-E-C2 | Caulk Outlet; Fig. 1010Y-E-C2 | No-Hub Outlet]PDF774 KB
Submittal 1010-E-R-C Roof Drain (pdf)Large General-Purpose Roof Drain – Low-Profile Dome with Extension Installation suggested with Waterproof Membrane by Others [1010C-E-R-C | Caulk Bottom Outlet; 1010Y-E-R-C | No-Hub Bottom Outlet]PDF730 KB
Submittal 1010-LPD Roof Drain (pdf)Large General-Purpose Roof Drain – 2-1/2” High Cast Iron Low-Profile Dome [1010C-LPD | Caulk Bottom Outlet; 1010Y-LPD | No-Hub Bottom Outlet]PDF441 KB
Submittal 1010-LPDM Roof Drain (pdf)Large Low Profile Dome Roof Drain with Stainless Steel Mesh Dome Cover [1010C-LPDM | Caulk Bottom Outlet; 1010Y-LPDM | No-Hub Bottom Outlet]PDF664 KB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Jay R. Smith Contractor Labor Savings and Prefabrication BrochureContractor Labor Saving Products Brochure (pdf)Contractor Labor Saving Products Brochure (pdf)PDF6 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
Specifications for Roof DrainsSpecifications for Roof DrainsDOC230 KB
1010 Roof Drain (hi res jpg)Large General Purpose Roof Drain - Low Profile Dome [1010C | Caulked Bottom Outlet; 1010Y | No-Hub Bottom Outlet] JPG74 KB
Technical Data for Roof DrainsTechnical Data for Roof DrainsPDF2 MB
Engineering Newsletter: Vol. 3, Issue 2 (March 2013)Fig. Nos. 1010 and 1080 Large-Capacity Roof DrainsPDF2 MB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Order Guidelines for Roof DrainsOrder Guidelines for Roof DrainsPDF120 KB
Canadian Submittal 1010-E-C2-W Roof Drain (pdf)Large General-Purpose Roof Drain – Low-Profile Dome, Secondary Flashing Clamp, Extension with Two Rows of 1/4” Seepage Openings [1010C-E-C2-W | Caulk Outlet; 1010Y-E-C2-W | No-Hub Outlet] PDF611 KB
