1015Large General Purpose Roof Drains with Adjustable Extension

Easily Adjusts to Accommodate Variations in Insulation Depth

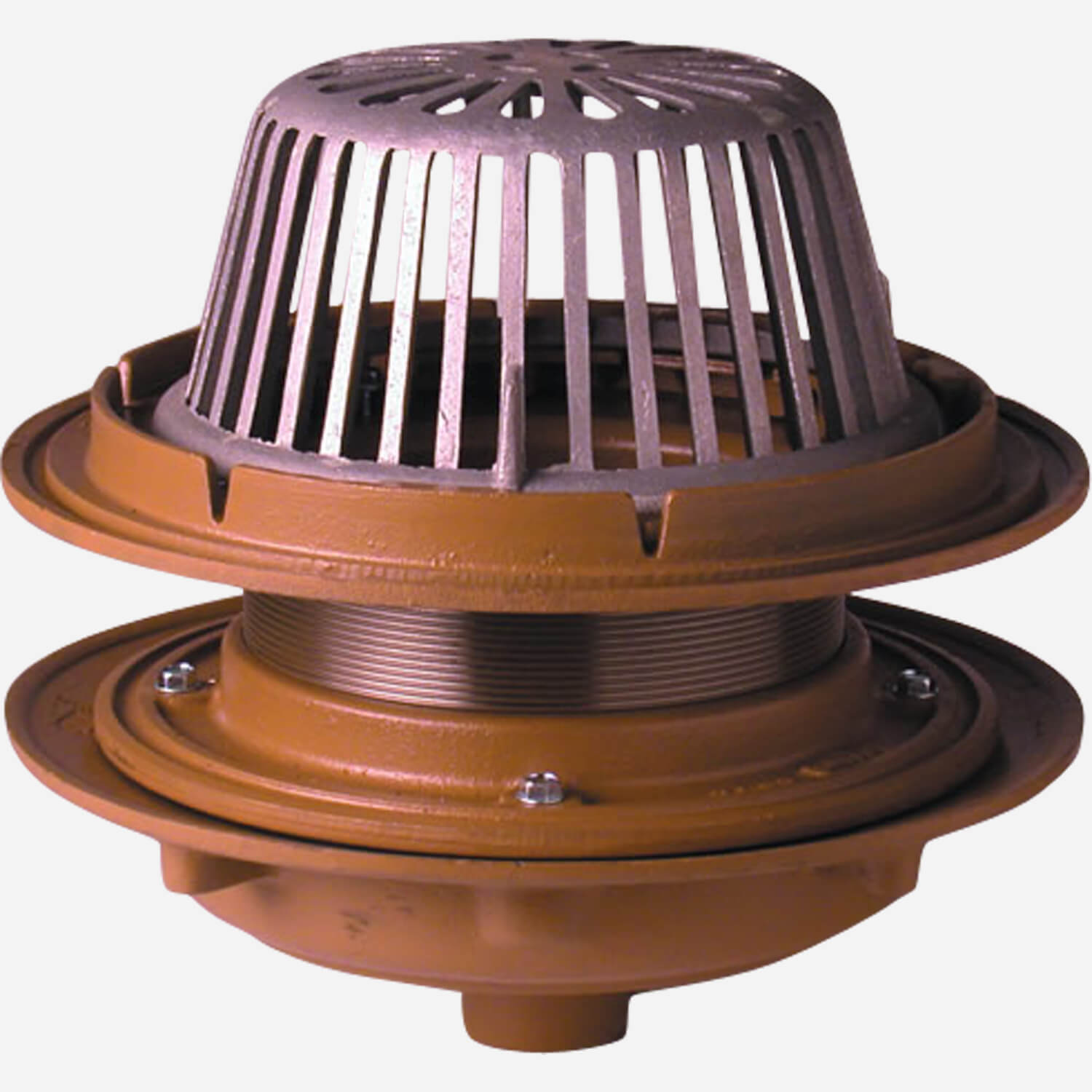

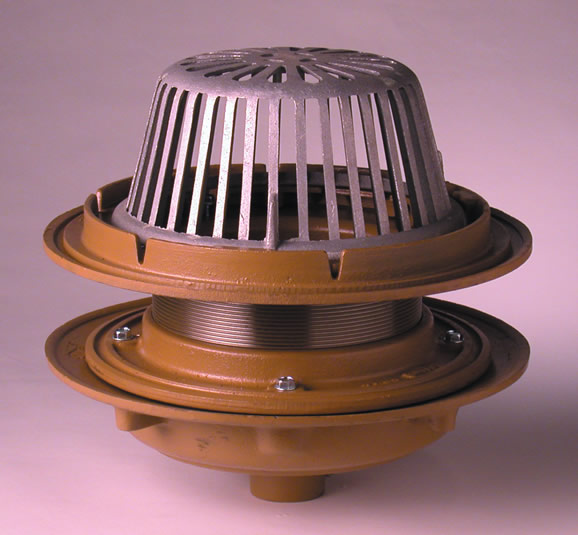

This general purpose drain is adjustable on-site to accommodate roofs of any construction between 1-1/4" (32) and 4" (100) thick with up to 2-3/4" (70) of insulation. The combination flange clamp and gravel stop of this 15-1/4" (390) diam. adjustable roof drain spins around a threaded extension sleeve to conform to varying roof thicknesses. The drain body and flange assembly are made of Duco coated cast iron. It is protected by a polyethylene dome strainer.

Pro Tip: Every bit of savings counts on a big job. When you choose an adjustable roof drain you eliminate the need to order multiple extensions in varying heights. Contractors appreciate the fact that this roof drain can accommodate the inevitable inconsistencies in roof insulation thickness. Simply spin the adjustable extension to fit insulation from 1-1/4 to 4 inches (32 to 102 mm) thickness.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Shows specifications for standard configuration. Configuration options may change specifications.

Variations
Expansion Joint (Specify Fig. 1710), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, Side Outlet Drain (Specify Fig. 1025), T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP
Optional Materials
Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron -G, Rough Bronze Dome -RBD
Product Type
Roof Drain
Benefit
Labor Saving

SubmittalSubmittal 1015 Roof Drain (pdf)

View

Technical Drawings

1015 Roof Drain (dwg)	General Purpose Roof Drain with Adjustable Extension [1015C \| Caulk Bottom Outlet; 1015Y \| No-Hub Bottom Outlet]	DWG56 KB
1015-08 Roof Drain (dwg)	General Purpose Roof Drain Specifically for 8" Pipe Size with Adjustable Extension [1015C-16 \| Caulk Bottom Outlet; 1015Y-16 \| No-Hub Bottom Outlet]	DWG338 KB
1015-39 Roof Drain (dwg)	General Purpose Roof Drain with Adjustable Extension, Stainless Steel Mesh Secured to Dome [1015C-39 \| Caulk Bottom Outlet; 1015Y-39 \| No-Hub Bottom Outlet]	DWG91 KB
1015-E Roof Drain (dwg)	General Purpose Roof Drain with Specified Height Extension [1015C-E \| Caulk Bottom Outlet; 1015Y-E \| No-Hub Bottom Outlet]	DWG105 KB
1015-RDP Roof Drain (dwg)	General Purpose Roof Drain with Adjustable Extension, Deck Plate [1015C-RDP \| Caulk Bottom Outlet; 1015Y-RDP \| No-Hub Bottom Outlet]	DWG65 KB
Canadian 1015-85 Roof Drain (dwg)	General Purpose Roof Drain with Adjustable Extension, High Profile Cast Iron Dome with Weir Opening [1015C-85 \| Caulk Bottom Outlet; 1015Y-85 \| No-Hub Bottom Outlet]	DWG503 KB
1015 Roof Drain (rfa)	General Purpose Roof Drain with Adjustable Extension [1015C \| Caulk Bottom Outlet; 1015Y \| No-Hub Bottom Outlet]	RFA448 KB

Literature / Videos

Submittal 1015-08 Roof Drain (pdf)	General Purpose Roof Drain Specifically for 8" Pipe Size with Adjustable Extension [1015C-16 \| Caulk Bottom Outlet; 1015Y-16 \| No-Hub Bottom Outlet]	PDF598 KB
Submittal 1015-39 Roof Drain (pdf)	General Purpose Roof Drain with Adjustable Extension, Stainless Steel Mesh Secured to Dome [1015C-39 \| Caulk Bottom Outlet; 1015Y-39 \| No-Hub Bottom Outlet]	PDF2 MB
Submittal 1015-E Roof Drain (pdf)	General Purpose Roof Drain with Specified Height Extension [1015C-E \| Caulk Bottom Outlet; 1015Y-E \| No-Hub Bottom Outlet]	PDF694 KB
Submittal 1015-RDP Support (pdf)	General Purpose Roof Drain with Adjustable Extension, Deck Plate [1015C-RDP \| Caulk Bottom Outlet; 1015Y-RDP \| No-Hub Bottom Outlet]	PDF729 KB
Submittal 1015-C2 Support (pdf)	General Purpose Roof Drain with Adjustable Extension, Wide Flange Body, Threaded Ring Used as Secondary Flashing Clamp [1015C-C2 \| Caulk Bottom Outlet; 1015Y-C2 \| No-Hub Bottom Outlet; 1015T-C2 \| Thread Bottom Outlet]	PDF633 KB
Contractor Labor Saving Products Brochure (pdf)	Contractor Labor Saving Products Brochure (pdf)	PDF6 MB
MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	PDF8 MB
MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	PDF712 KB
Specifications for Roof Drains	Specifications for Roof Drains	DOC230 KB
1015 Roof Drain (hi res jpg)	General Purpose Roof Drain with Adjustable Extension [1015C \| Caulk Bottom Outlet; 1015Y \| No-Hub Bottom Outlet]	JPG52 KB
Technical Data for Roof Drains	Technical Data for Roof Drains	PDF2 MB
Parts Order Guide for Roof Drains	Parts Order Guide for Roof Drains	PDF5 MB
Order Guidelines for Roof Drains	Order Guidelines for Roof Drains	PDF120 KB
Quote Worksheet Smith Drainage Systems	Quote Worksheet Smith Drainage Systems	PDF36 KB
Canadian Submittal 1015-85 Roof Drain (pdf)	General Purpose Roof Drain with Adjustable Extension, High Profile Cast Iron Dome with Weir Opening [1015C-85 \| Caulk Bottom Outlet; 1015Y-85 \| No-Hub Bottom Outlet]	PDF631 KB
