Figure Number: 9960-M
Contact a Representative

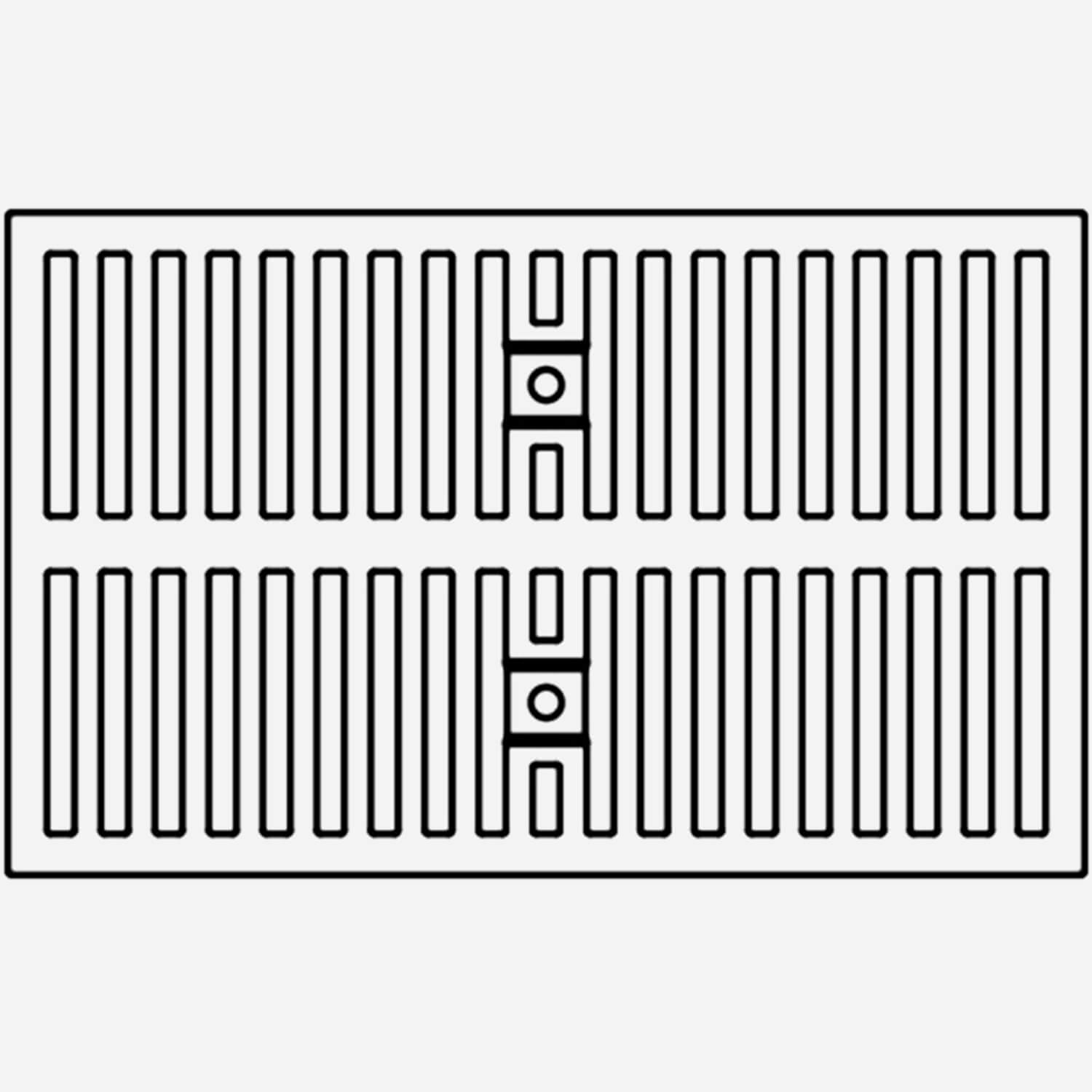

9960-MExtra Heavy Duty Ductile Iron Slotted Grate (Load Class E: Extra Heavy Duty Grate)

This half-meter, extra heavy duty, ductile iron slotted grate is designed for use with Smith 9960 12" wide Zip Trench® polypropylene trench drain system. It is ideal for commercial solid tire traffic patterns, forklifts and impacts from steel struts or metal wheels.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
SubmittalSubmittal 9960-M Grate
View
Technical Drawings
9960-M Drain Grate CAD DrawingExtra Heavy Duty Ductile Iron Slotted Grate (Load Class E: Extra Heavy Duty Grate) For use in 12” wide 9960 trench drainsDWG398 KB
Literature / Videos
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Trench Drain Chemical Resistance Guidelines (pdf)The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications.PDF154 KB
