Figure Number: 4140-4154

4140-4154Tile Floor Cleanouts with Round Nickel Bronze Tops and Tile Recess

This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after the floor is poured and floor coverings such as asphalt, vinyl tile or linoleum are installed. Its 6” (150) diam. nickel bronze top is recessed 1/8” (3) to receive an inlay of the floor material for an unobtrusive appearance. Constructed of Duco coated cast iron, this cleanout is designed to support foot and medium load wheeled traffic. It is available with 2", 3" and 4" outlets.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Flashing Flange -F, Flashing Flange and Clamp -F-C, Vandal Proof -U - Top, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Polished Bronze Top - PB
  • Product Type
    Cleanout
Technical Drawings
DWG 4140 CleanoutDWG 4140 CleanoutDWG77 KB
DWG 4145 CleanoutDWG 4145 CleanoutDWG90 KB
DWG 4151 CleanoutDWG 4151 CleanoutDWG109 KB
RFA 4140 CleanoutRFA 4140 CleanoutRFA300 KB
Literature / Videos
Submittal 4145 CleanoutSubmittal 4145 CleanoutPDF930 KB
Submittal 4151 CleanoutSubmittal 4151 CleanoutPDF2 MB
Specifications for CleanoutsSpecifications for CleanoutsDOC216 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Cleanouts Flyer (pdf)Flyer for CleanoutsPDF847 KB

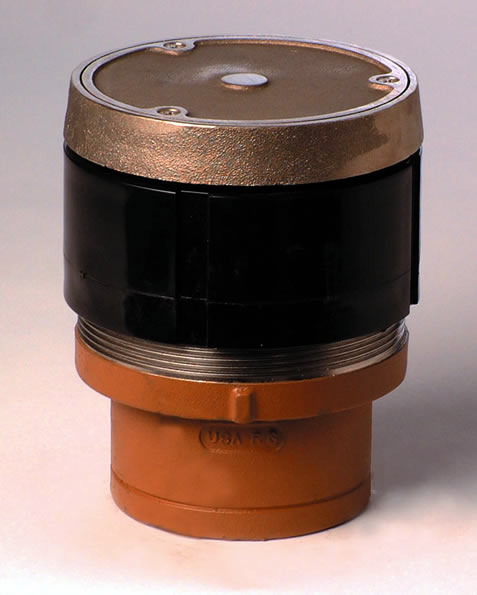

4140 - Round Nickel Bronze Top with Tile Recess (hi res jpg)JPG34 KB

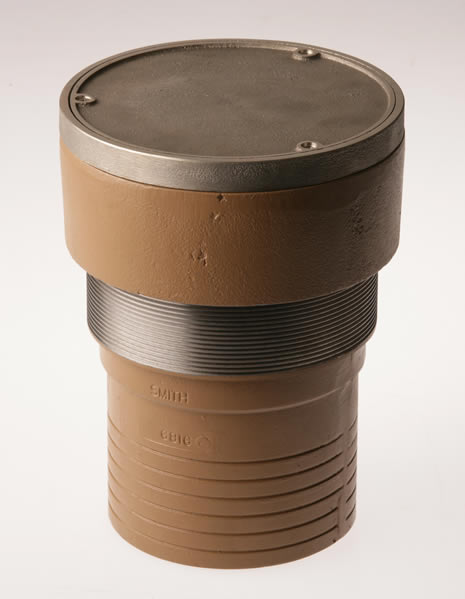

4143 - Round Nickel Bronze Top with Tile Recess (hi res jpg)JPG25 KB
4151 - Round Nickel Bronze Top with Tile Recess (hi res jpg)JPG30 KB
Technical Data for CleanoutsTechnical Data for CleanoutsPDF906 KB
Order Guidelines for CleanoutsOrder Guidelines for CleanoutsPDF120 KB
Parts Order Guide for CleanoutsParts Order Guide for CleanoutsPDF910 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
