Figure Number: 3540
Contact a Representative

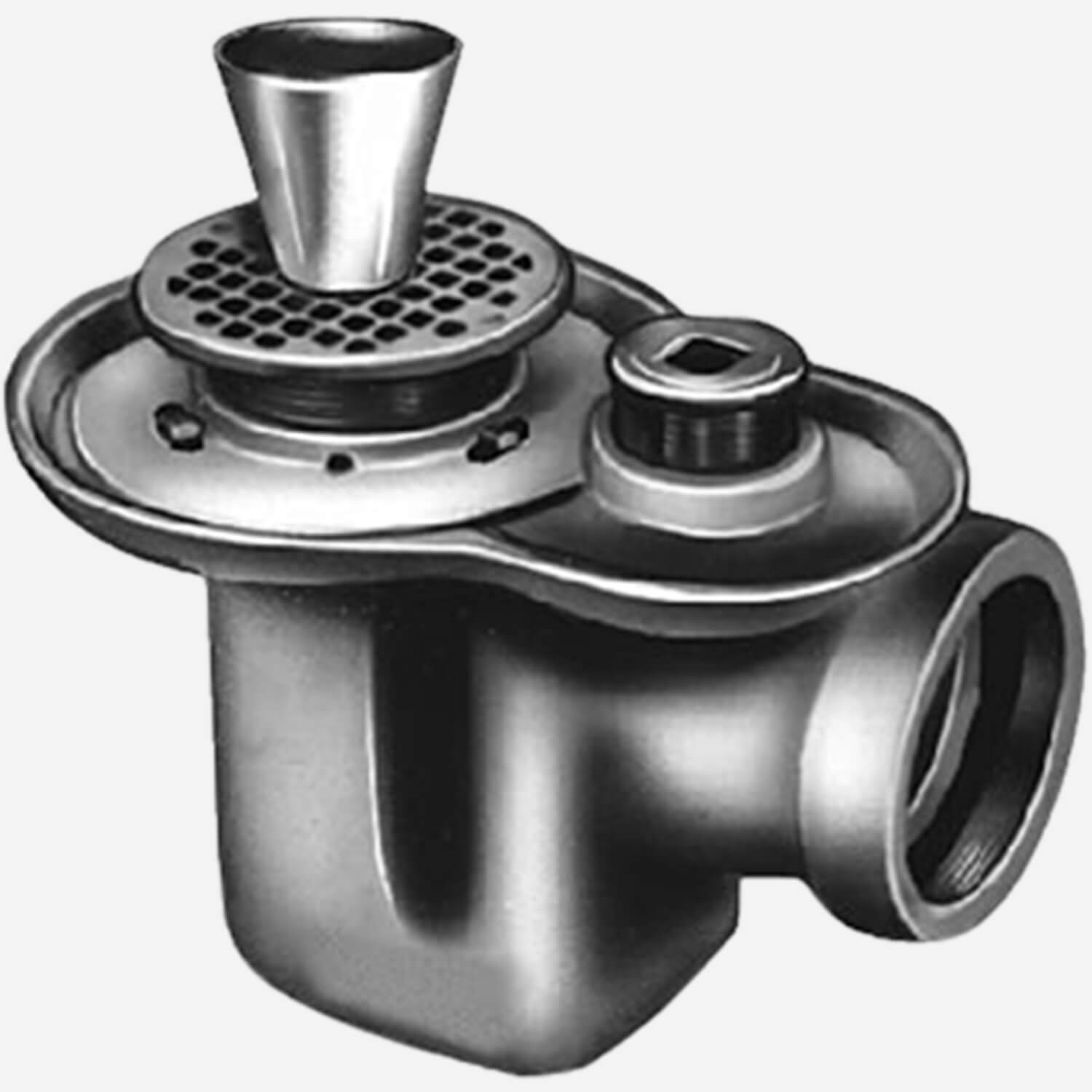

3540Deep Traps with Adjustable Strainer Heads

The 4” diam. funnel provided with this drain can be secured anywhere to the drain’s 5”, 6”, 7” and 8” round or square strainer head to catch wastewater from above (an indirect connection) while the remaining free area of that strainer and a second strainer head clear the surrounding floor area. The second head also permits access to the integral trap for maintenance should the need arise. Both threaded heads rotate to adjust to the level of adjacent flooring. The Duco coated cast iron drain has an integral flashing collar for a watertight seal with flooring materials.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    High Auxiliary Inlet -NH15,1 1/2(38) or 2 1/2"(64) -NH25, Low Auxiliary Inlet -NL, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Backwater Valve -V, Ball Float Backwater Valve -BFV, Sediment Bucket -B, Vandal Proof Grate - U, 6"(150) Dia. Funnel (Fig. 3581), 6(150) x 2 1/2(64) x 1"(25) High Oval Funnel (Fig. 3590), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Cast Bronze Body -BB, Chrome Plated Strainer -CP, Galvanized -G - Body, Nickel Bronze -NB - See Strainers, Polished Bronze Strainer -PB (See Strainers)
  • Product Type
    Sanitary Floor, Area and Indirect Waste Drain
SubmittalSubmittal 3540, 3541 Drain
View
Technical Drawings
3540, 3541 Drain CAD DrawingFunnel-Ceptor® Indirect Waste Drain with Adjustable Strainer Heads Deep Trap with Floor Cleanout [3540T | Threaded Outlet; 3541S | Spigot Outlet] Round Top (A) and Square Top (B) AvailableDWG42 KB
Literature / Videos
Article: Considerations to be Addressed When Selecting Sanitary Floor DrainsArticle: Considerations to be Addressed When Selecting Sanitary Floor DrainsPDF270 KB
Specifications for Sanitary Floor DrainsSpecifications for Sanitary Floor DrainsDOC327 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Sanitary Floor DrainsSani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data PDF599 KB
Order Guidelines for Sanitary Floor DrainsOrder Guidelines for Sanitary Floor DrainsPDF115 KB
Parts Order Guide for Sanitary Floor DrainsPDF2 MB
Can't find what you are looking for? Get in touch

3540T | Threaded Outlet
3541S | Spigot Outlet

Round Top (A) and Square Top (B) Available

  • 3541 With Spigot Outlet
