Figure Number: 9660-10N

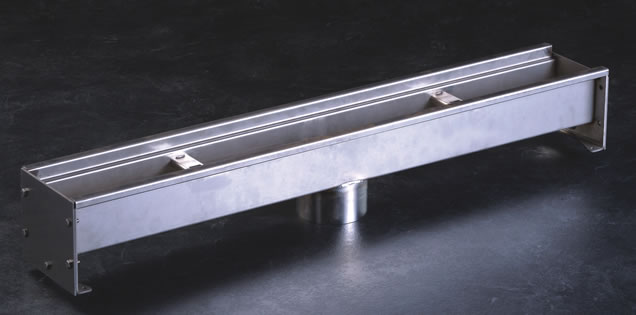

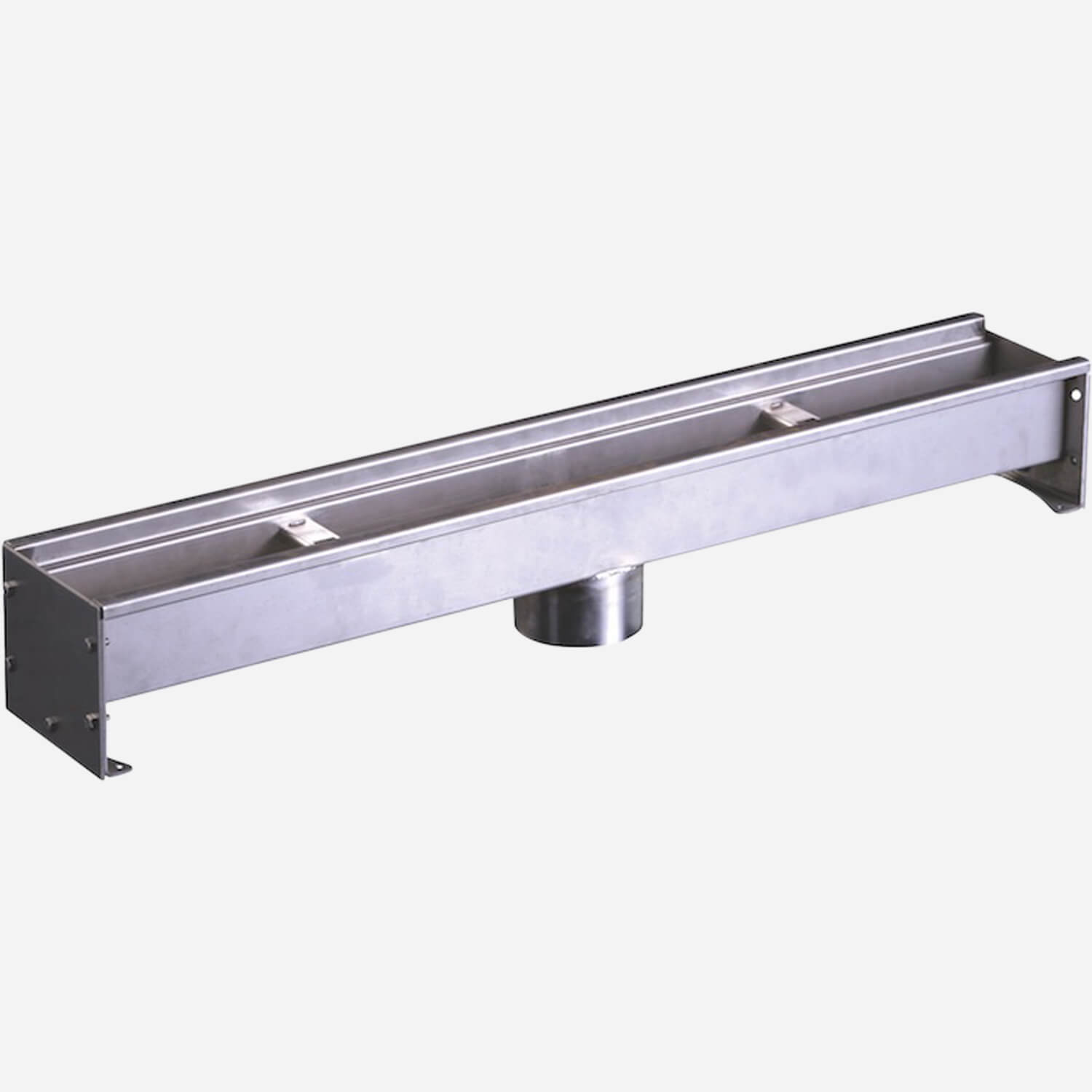

9660-10N6" Wide Neutral Stainless Steel Modular Trench Drain

Used in kitchens or other areas where a trough drain is required and where sanitation is of prime concern. This 16-gauge Type 304 stainless steel channel drain is 39.38” long, 6.38” wide and has a 4” wide throat with bolting end plates. Available with 4” center outlet for trough drain configuration. Complete with dome bottom strainer, leveling studs and stainless steel 9870-466-SBG bar grate.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Buttweld Outlet -BW, Grating Options See Below, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Type 316 Stainless Steel -316SS Trench Body, -SBG Grate Only
  • Product Type
    Drainage System
