Figure Number: 3460 and 3470

3460 and 3470Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Shallow and Deep Receptor and ARC Rectangular Non-Traffic Top

Engineered for long service life in food handling facilities, schools, and hospitals away from foot or other traffic, the shallow 4” by 8” top and deep 6” by 8” top Sani-Ceptor® cast iron floor drains are specially coated for acid resistance where the highest standard of sanitation is required. Designed to fit under counters and near walls, their drain bodies have an integral flange which accept an optional flashing clamp permitting installation in many construction types. Covered by loose set grates, these drains are available with aluminum dome strainers or sediment buckets to keep drain lines debris free.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Acid Resistant Coated 1/2 Grate (Suffix -12), Aluminum Flat Bottom Strainer -FBS, Flashing Clamp -C, Less Flange - (Specify Fig. 3465, 3466, 3475, 3476), Polished Aluminum Dome Bottom Strainer -PDBS, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    All Duco Cast Iron Receptor and Grate -CI, All Galvanized Receptor and Grate -G
  • Product Type
    Sanitary Floor, Area and Indirect Waste Drain
Technical Drawings
3460, 3470 Drain CAD DrawingSani-Ceptor® Acid-Resistant Coated Floor and Indirect Waste Drain Non-Traffic Tops - 4" x 8" Top with Shallow Depth; 6" x 12" Top with Deep Depth Receptors [3460C, 3460Y, 3470C, 3470Y, 3461C, 3461Y, 3471C, 3471Y]DWG122 KB
Literature / Videos
Article: Considerations to be Addressed When Selecting Sanitary Floor DrainsArticle: Considerations to be Addressed When Selecting Sanitary Floor DrainsPDF270 KB
Specifications for Sanitary Floor DrainsSpecifications for Sanitary Floor DrainsDOC327 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Technical Data for Sanitary Floor DrainsSani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data PDF599 KB
Order Guidelines for Sanitary Floor DrainsOrder Guidelines for Sanitary Floor DrainsPDF115 KB
Parts Order Guide for Sanitary Floor DrainsPDF2 MB
Can't find what you are looking for? Get in touch

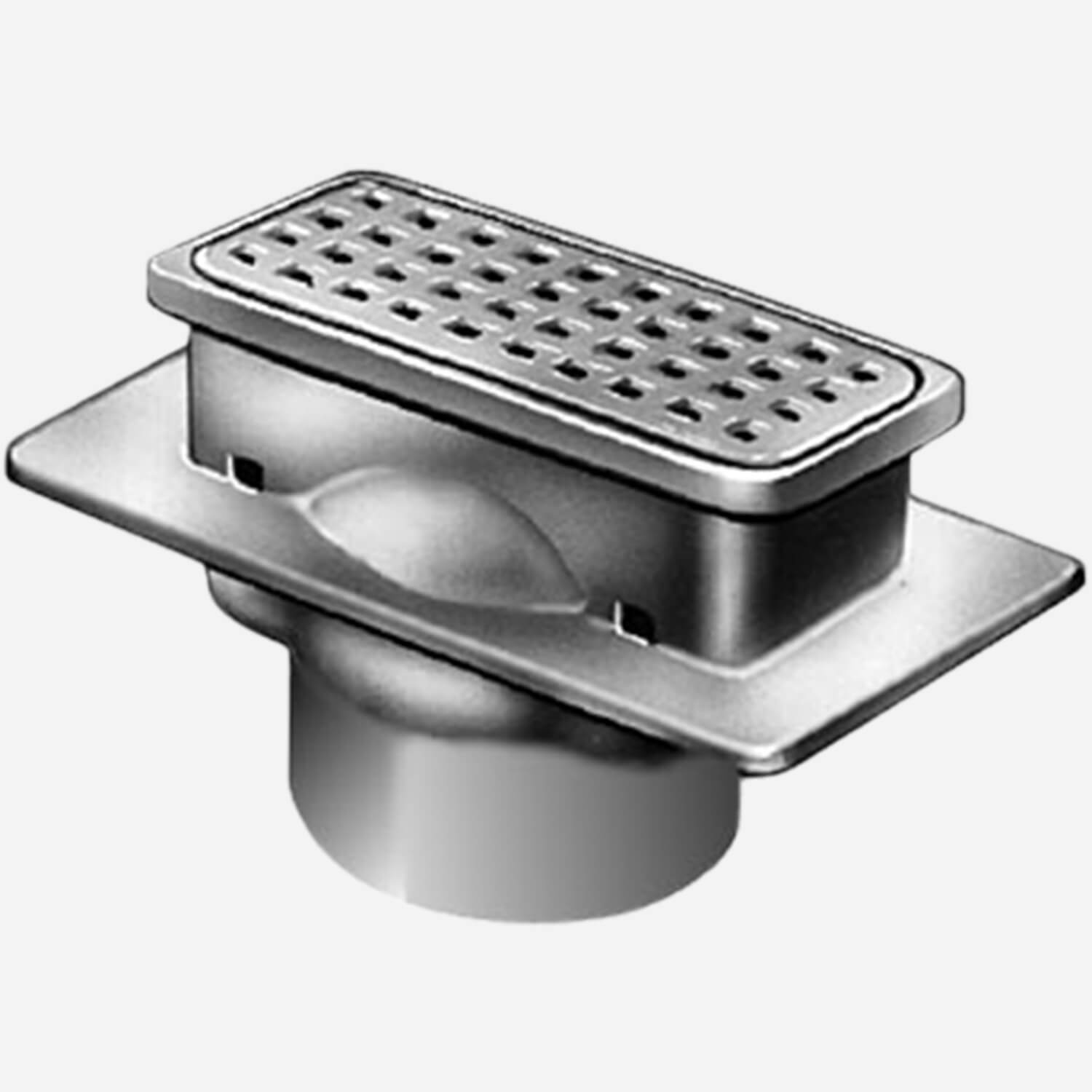

4" x 8" Rectangular Top Shallow Depth 3-1/4" Receptor
With Dome Bottom Strainer
3460C | Caulk Outlet
3460Y | No-Hub Outlet

With Sediment Bucket
3461C | Caulk Outlet
3461Y | No-Hub Outlet

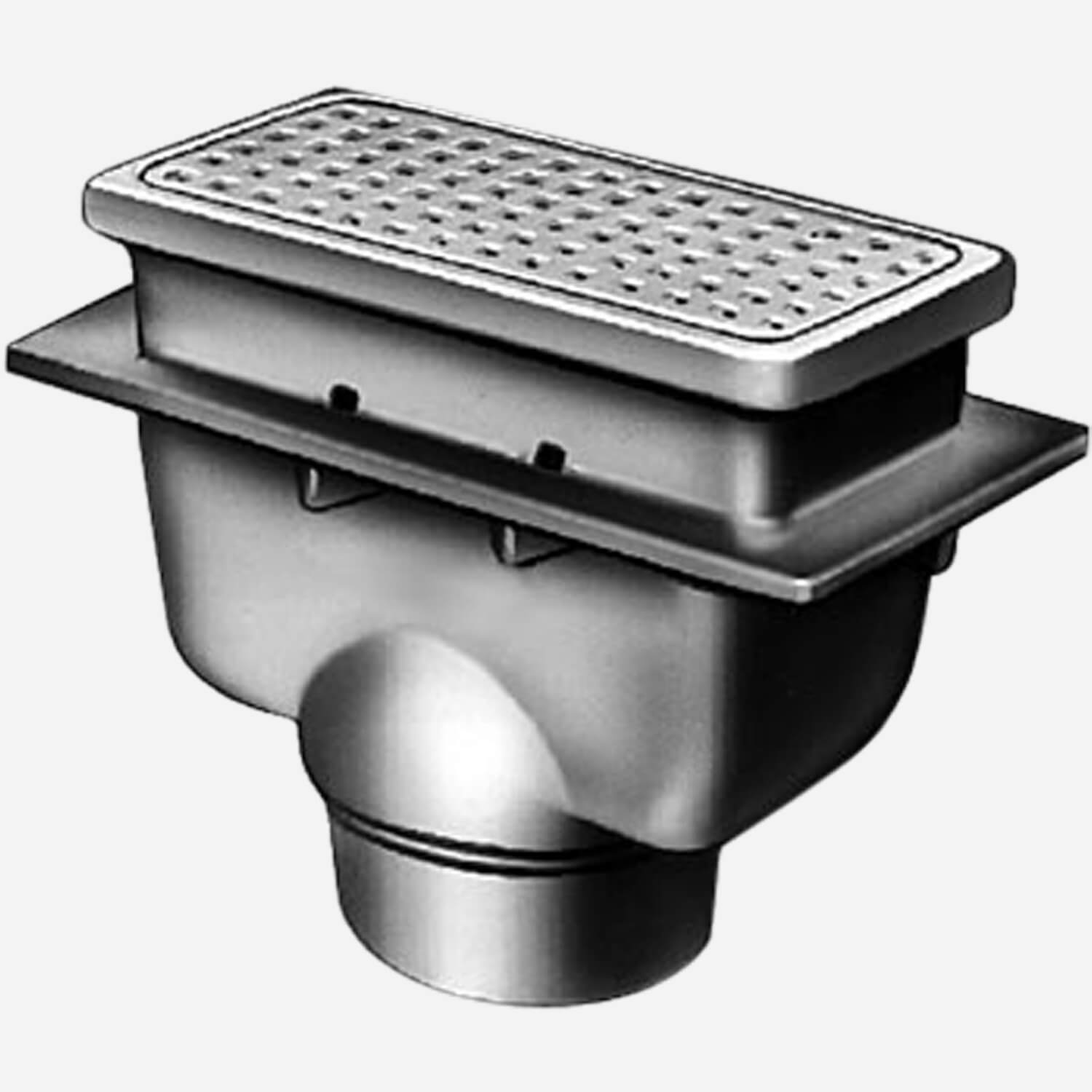

6" x 12" Rectangular Top Deep Depth 7-1/2 Receptor
With Dome Bottom Strainer
3470C | Caulk Outlet
3470Y | No-Hub Outlet

With Sediment Bucket
3471C | Caulk Outlet
3471Y | No-Hub Outlet
