Labor Saving & Prefabricated Fixture Supports

Labor Saver® fixture supports for water closets, lavatories, and toilets help you complete jobs faster and more efficiently. Each Labor Saver fixture support can save you 15-20 minutes on installation time per support. This adds up to hours over the course of a job! Labor Saver fixture supports come pre-assembled! Supports feature a one-piece, unitized construction, while the Quarterback Water Closet Support ships with legs and faceplate already attached.

labor saving, pre-assembled fixture supports from Jay R. Smith Mfg. Co.

Prefab_icon Enhanced Prefabrication

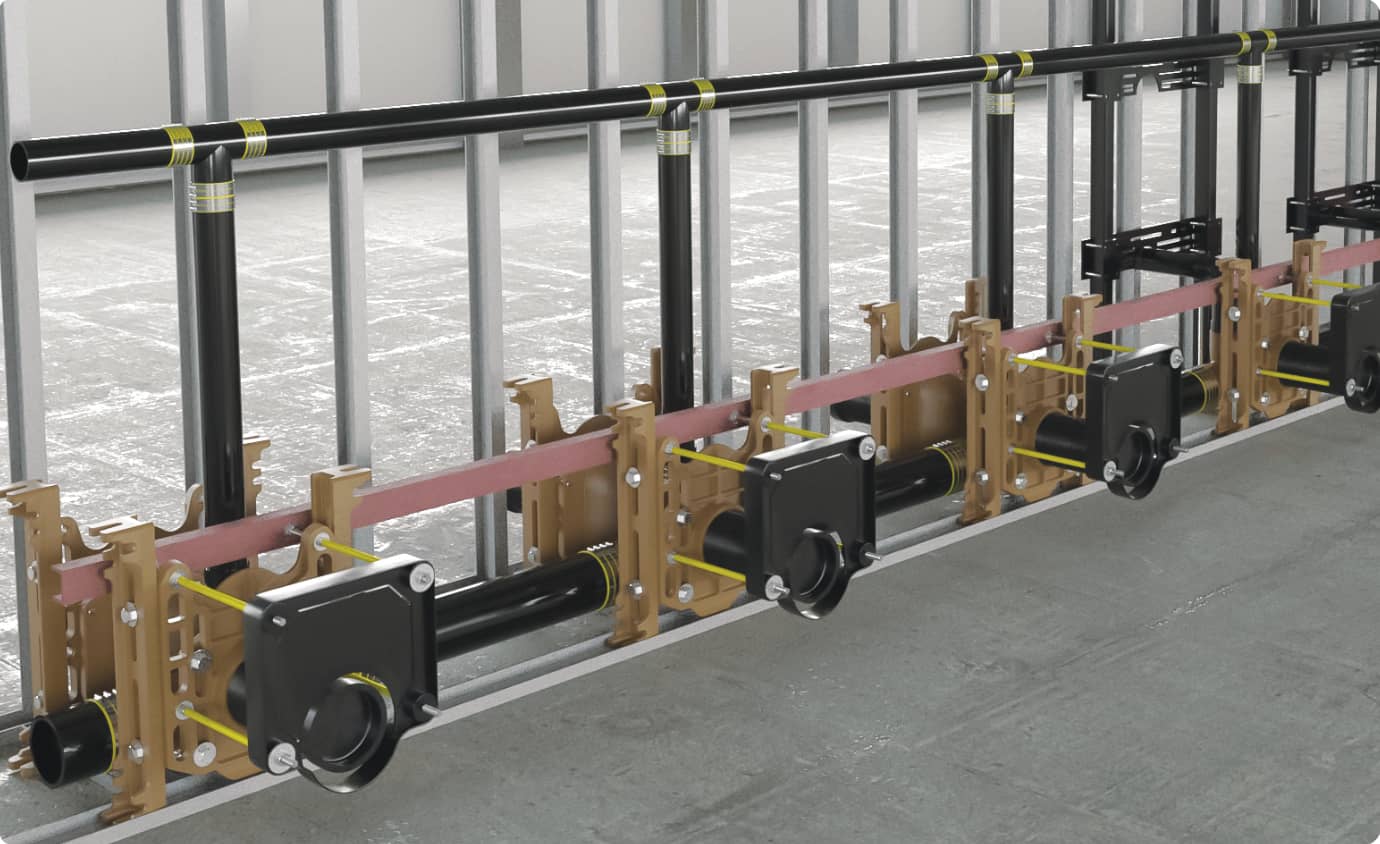

PROTIP - Prefabricate and pre-plumb a battery for quick install at the job site. With prefabrication, you can save time and money while requiring fewer installers. Labor Saver fixture supports feature numerous mounting points for battery prefabrication, easy access to key elements for install, and arrive partially assembled to speed up the process.

Fixture Supports Brochure

Save 15-20 minutes installation time for each support.
View Labor Saver® Fixture Supports Brochure today!

VALUE ADDED ELEMENTS - Labor Saver® fixture supports for water closets, lavatories, and toilets are stocked for shipment, meaning quicker order fulfillment and the ability to take on rush projects. Pre-assembly means no missing parts, fast installation at job sites, and less waste.

Save Money

Pre-Assembly

Quick Installation

Easy Maintenance

Designed for Contractors

Prefab_icon Enhanced Prefabrication Capabilities

  • Assemble any number of fixture supports.
  • Many options for battery prefabrication style.
  • All supports feature numerous attachment points for maximal flexibility.
  • Transport entire battery to job site as one piece.
Labor Saver Products Brochure

Learn how to save time and money
View Labor Saving Products Brochure today!

Prefab_icon Prefabrication Saves

  • Cut install by 15-20 minutes per support.
  • Prefabricate batteries ahead of the contractor site and transport to job site already assembled.
  • A quicker install with a smaller crew keeps you on budget.

Download ITM Files


Fixture Supports

Combine different styles of fixture supports into one battery for the easiest job site install. With flexible attachment points that support your workflow, it’s possible. The rigid, unitized steel frame construction of our Urinal Support with Hangar Plate (Figure No. 0617) and Lavatory Support with Concealed Arms (Figure No. 0710) minimizes installation time.

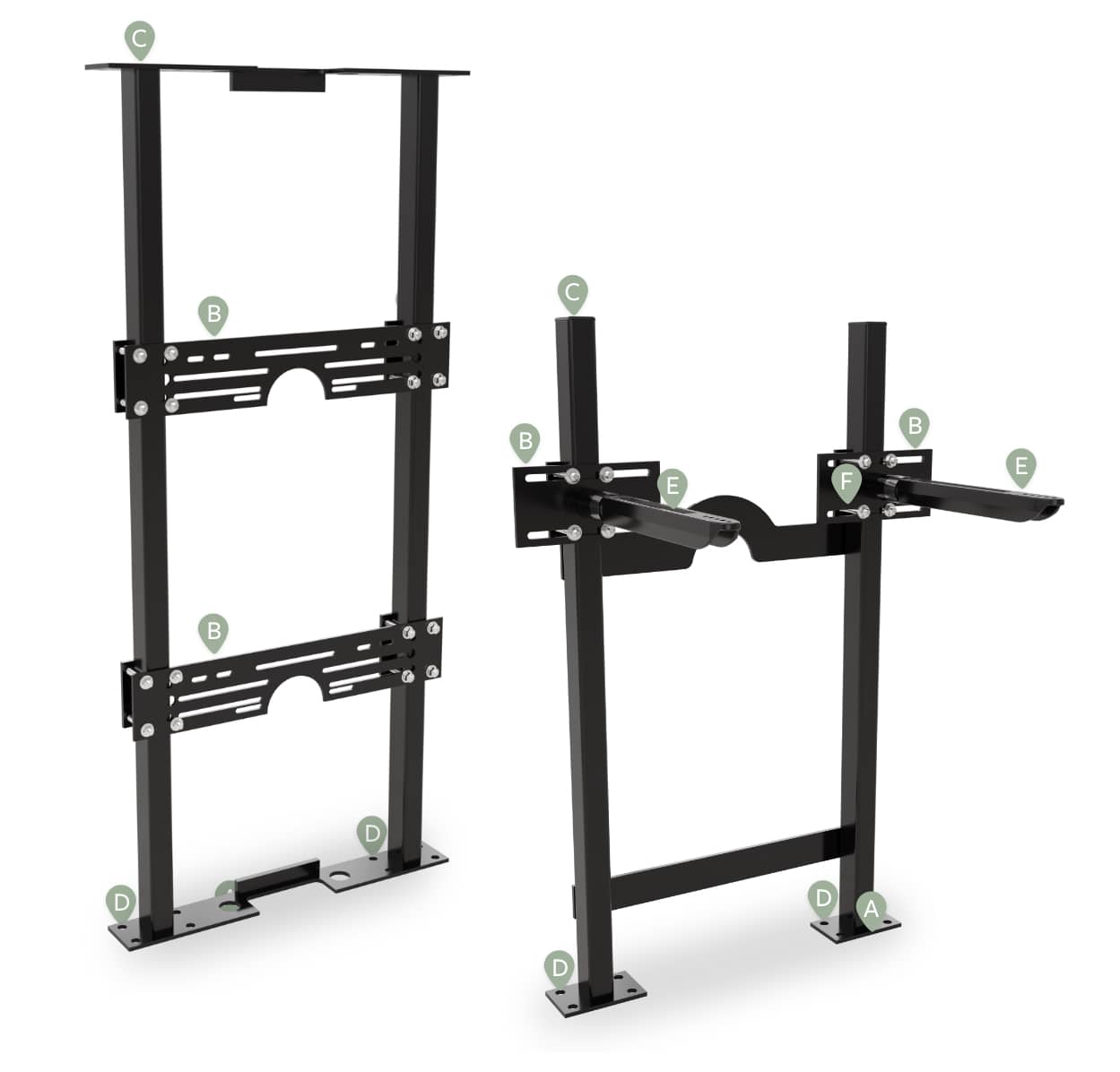

Smith Urinal Support with Hangar Plate (Figure No. 0617) and Lavatory Support with Concealed Arms (Figure No. 0710) combined to minimize installation time
Fixture Support Features
  1. Floor-mounted legs
  2. Easy field adjustment
  3. Suitable for narrow wall and metal stud configurations
  4. TAB option allows for two anchors per foot (Fig. No. 0710)
  5. Fixture-specific arms eliminate additional labor for lengthy in-field configuration and/or adjustment
  6. Height and side-to-side adjustment is done from the front of the support, using four nuts

Urinal Support with Hangar Plate (Fig. No. 0617) Product Page
Lavatory Support with Concealed Arms (Fig. No. 0710) Product Page

Water_Closet_video

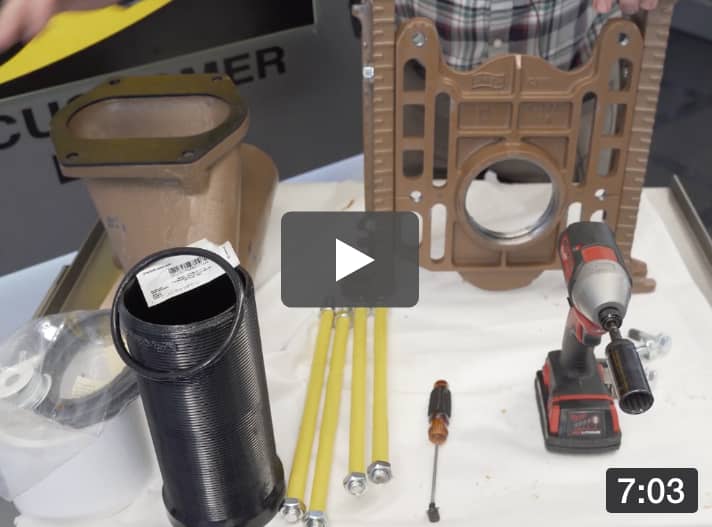

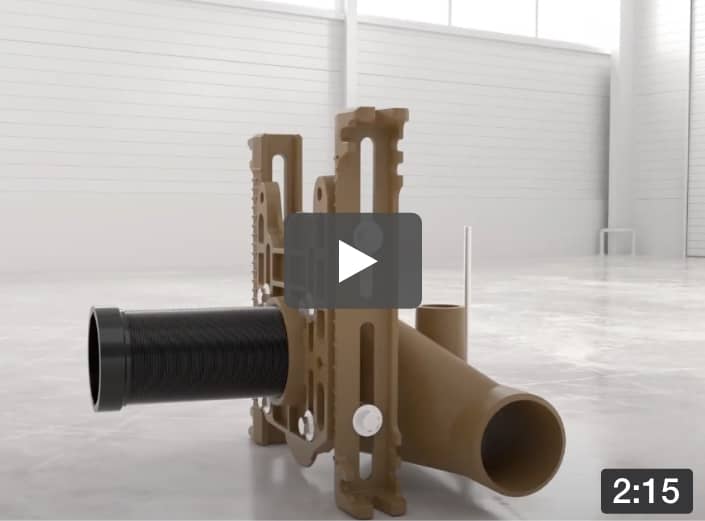

How to Assemble a Carrier

Watch this video to learn how to assemble a carrier!


Back to Top


Quarterback® Water Closet Support

Our Labor Saver® Quarterback® Water Closet Support (Figure No. 0211Y-M54) is designed for a better fit in a smaller chase area. Newly designed legs provide easy access to the securing bolts of the faceplate, allowing for height adjustment even with adjacent wall framing. The legs also have four additional securing slots, which can accommodate accessories to aid in installation, especially for prefabrication.

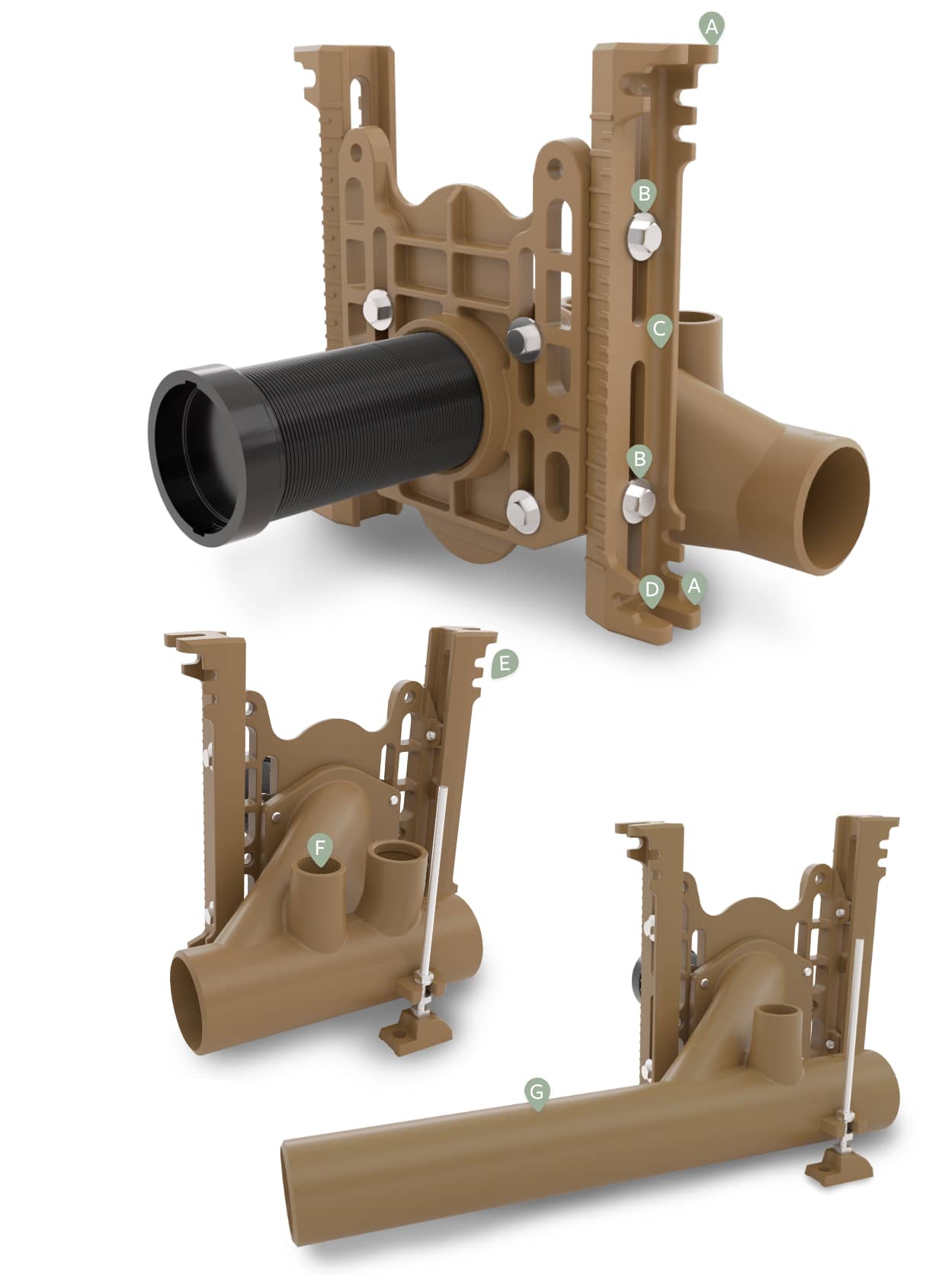

Smith Labor Saver® Quarterback® Water Closet Support (Figure No. 0211Y-M54) is designed for a better fit in a smaller chase area
Quarterback Water Closet Features
  1. Legs provide numerous mounting options for fixture support battery prefabrication or flush valve supply line support.
  2. Legs provide enough space for job-site adjustments between studs
  3. Easy access to faceplate bolts for quick adjustment during prefabrication
  4. Faceplate kit arrives with legs pre-secured to faceplate. Adjust-to-Wall and O-ring style faceplate kits available
  5. One anchor per leg for fast and easy installation (anchor is installed through notch in bottom of foot)
  6. Easy access to faceplate bolts for quick adjustment during prefabrication
  7. 36” long barrel fittings connect fixtures supports to each other, eliminating pipe connections and possible leak points.

Quarterback Water Closet Support (Fig. No. 0211Y-M54) Product Page

Water_Closet_video

Contractor Labor Saving Water Closet Support Prefabrication Process

See the prefabrication process in action, and get a taste of all the prefabrication options in this video!

Quarterback Water Closet Fixture Support

Back to Top


Battery Prefabrication Options

Fixture Support Battery Installation

Contractors who prefabricate batteries* in their own facilities can realize significant savings over installing one-by-one at the job site. Shown below are a variety of options for battery construction, but there are many other ways to prefabricate as well. Find the method that works best for you.

Angle Iron / Channel Foot Mount

Jay R. Smith Mfg. Co. Fixture Support Battery construction option: Angle Iron / Channel Foot Mount

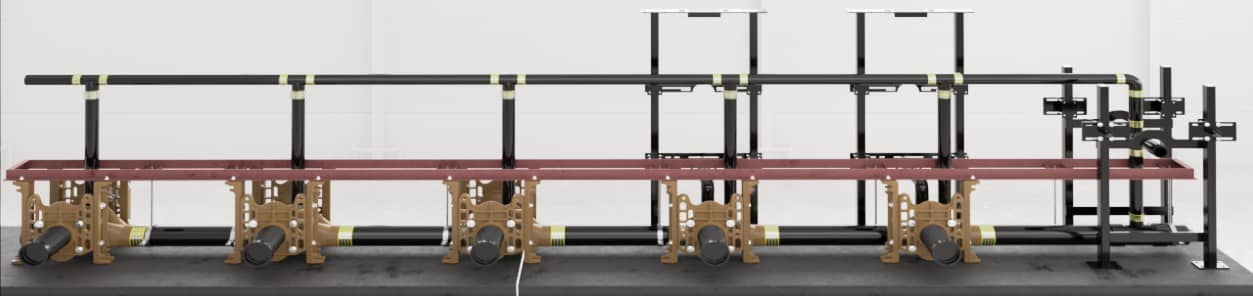

Iron Mounted Top Mount with Brackets

Jay R. Smith Mfg. Co. Fixture Support Battery construction option: Iron Mounted Top Mount with Brackets

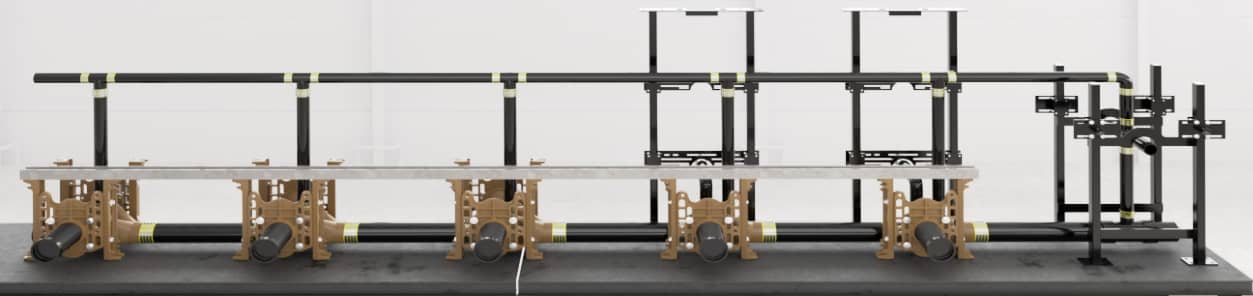

Channel Top Mount

Jay R. Smith Mfg. Co. Fixture Support Battery construction option: Channel Top Mount

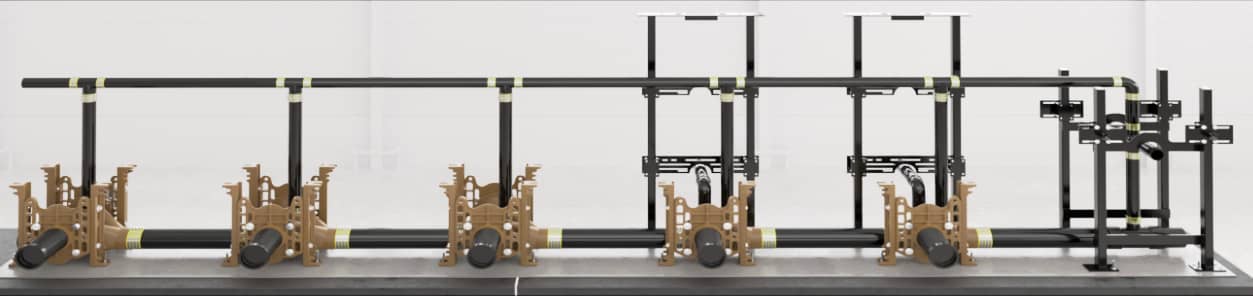

Sheet Floor Mount

Jay R. Smith Mfg. Co. Fixture Support Battery construction option: Sheet Floor Mount

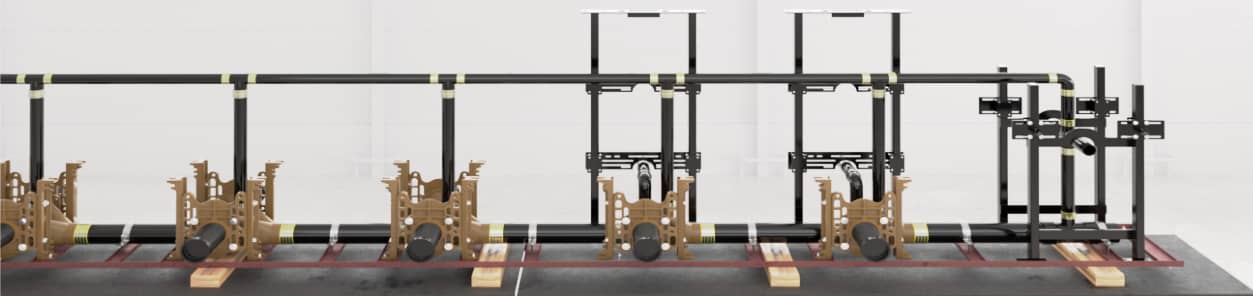

Angle Iron Foot Mount

Jay R. Smith Mfg. Co. Fixture Support Battery construction option: Angle Iron Foot Mount

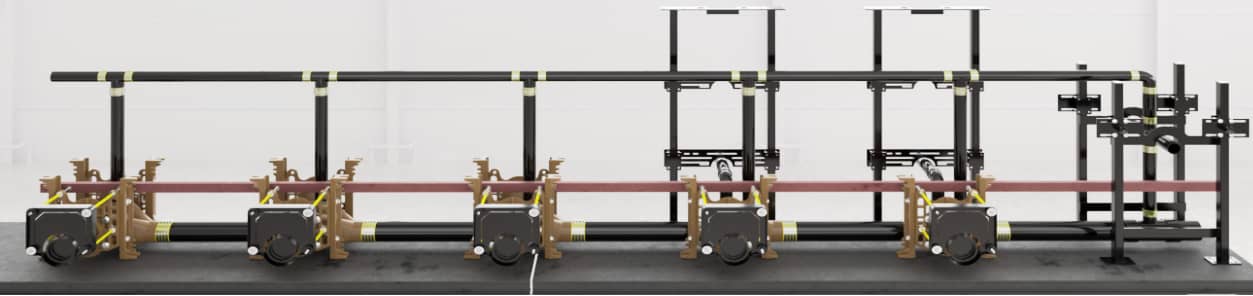

Angle Iron Top Rear Mount

Jay R. Smith Mfg. Co. Fixture Support Battery construction option: Angle Iron Top Rear Mount

*Batteries shown are for prefabrication and example only and are not methods for permanent anchoring.
