Model 4450 & 4452
Full Caliber Ferrule Taper Thread Plug with Round Cover

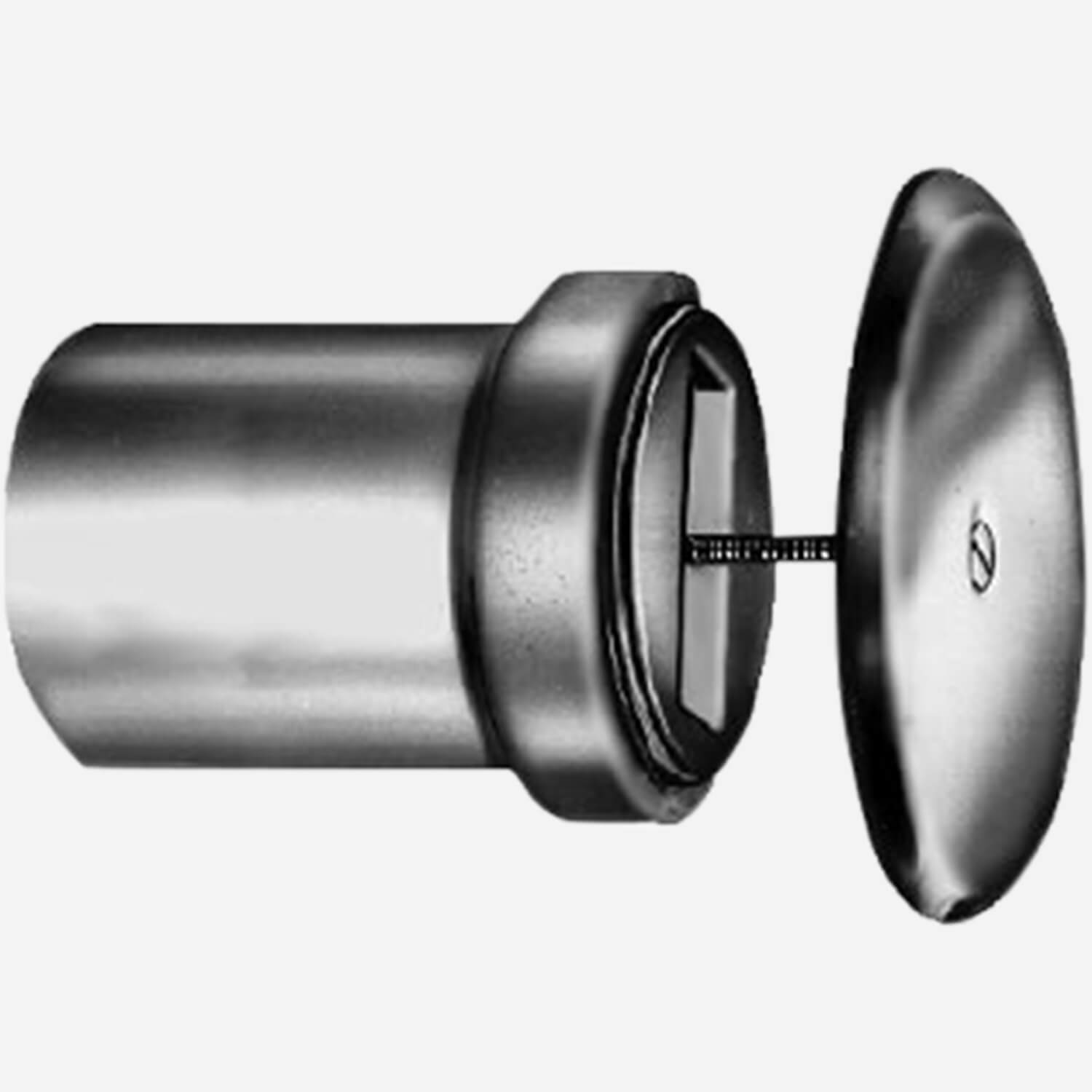

This Duco coated cast iron ferrule cleanout is installed in hub openings on drainage piping where a cleanout is required. The cast bronze tapered thread plug can be quickly and easily removed for cleaning. The plug size is equal to the size of the ferrule. A stainless steel round cover and screw (fig. 4452) is available to enhance its appearance on finished walls.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Caulk Ferrule Cleanout and Covers- Full Calibre Caulk Ferrule with Cast Bronze Taper Thread Plug [4450C | Countersunk Plug Only; 4452C |Countersunk Plug with Stainless Steel Round Cover and 1/4-20 x 2-1/2" Flat Head Machine Screw] | 502 KB | |||
 | | DWG 4450 Cleanout | 0 | 25 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Specifications for Cleanouts | 0 | 217 KB | ||
| | Technical Data for Cleanouts | 0 | 906 KB | ||
| | Order Guidelines for Cleanouts | 0 | 120 KB | ||
| | Parts Order Guide for Cleanouts | 0 | 910 KB |
Specifications
| Variations | Longer Center Screw -LS - 6"(150) Length, T-Handle Plug -TP Plug Tapped 1/4"(6)-20 Thread, Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Polished Bronze -PB - Cover, Prime Coated Steel Cover -PC |
| Product Type | Cleanout |
Models
Caulk Ferrule Cleanout and Covers-
Full Calibre Caulk Ferrule with Cast Bronze Taper Thread Plug, Stainless Steel Round Cover and Screw
Countersunk Plug Only
4450C02 | 2" Pipe Size
4450C03 | 3" Pipe Size
4450C04 | 4" Pipe Size
Countersunk Plug with Stainless Steel Round Cover
and 1/4-20 x 2-1/2" Flat Head Machine Screw
4452C02 | 2" Pipe Size, Plug with 4-1/4" Cover
4452C03 | 3" Pipe Size, Plug with 5-1/2" Cover
4452C04 | 4" Pipe Size, Plug with 7" Cover
