Model 4120-4131

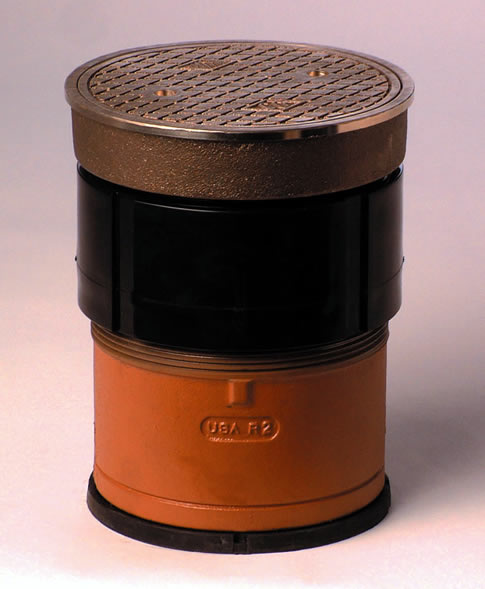

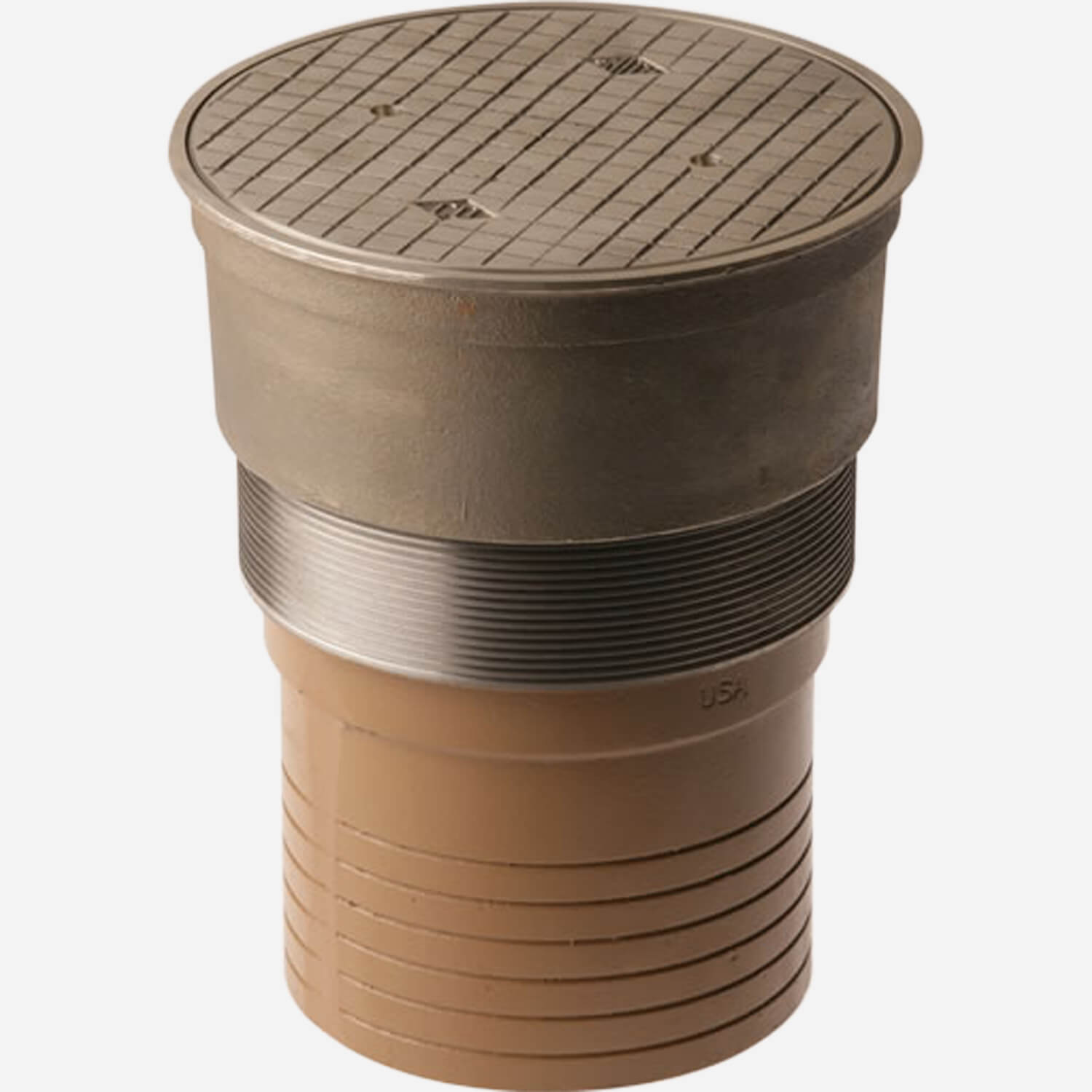

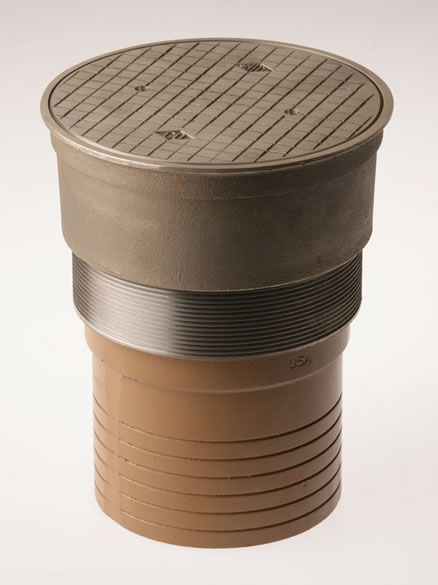

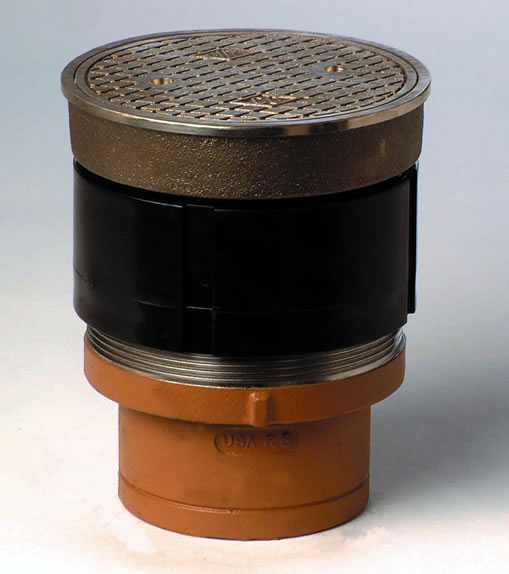

Finished Floor Cleanouts with Round Nickel Bronze Tops and Threaded Spanner Wrench Cover
This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after the floor is poured and floor coverings are installed. Constructed of Duco coated cast iron and topped with a 6” (180) diam. nickel bronze, threaded, watertight cover, it is engineered to support pedestrian traffic in hospitals, schools, institutional and industrial buildings. Cleanout is accessed with a spanner wrench.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Submittal 4120 Cleanout | 1 MB | |||
 | | DWG 4120 Cleanout | 0 | 79 KB | ||
| | DWG 4125 Cleanout | 0 | 94 KB | ||
| | DWG 4131 Cleanout | 0 | 112 KB | ||
 | | RFA 4120 Cleanout | 0 | 308 KB | ||
| | Submittal 4125 Cleanout | 0 | 945 KB | ||
| | Submittal 4131 Cleanout | 0 | 1 MB | ||
| | Specifications for Cleanouts | 0 | 217 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Flyer for Cleanouts | 0 | 847 KB | ||
 | | 0 | 39 KB | |||
| | 0 | 32 KB | |||
| | 0 | 38 KB | |||
| | 0 | 26 KB | |||
| | Technical Data for Cleanouts | 0 | 906 KB | ||
| | Order Guidelines for Cleanouts | 0 | 120 KB | ||
| | Parts Order Guide for Cleanouts | 0 | 910 KB | ||
| | Quote Worksheet Smith Drainage Systems | 0 | 39 KB |
Specifications
| Variations | Flashing Flange -F, Flashing Flange and Clamp -F-C, Spanner Wrench -SW, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Galvanized Cast Iron -G, Polished Bronze Top - PB |
| Product Type | Cleanout |
