Member of Morris Group International

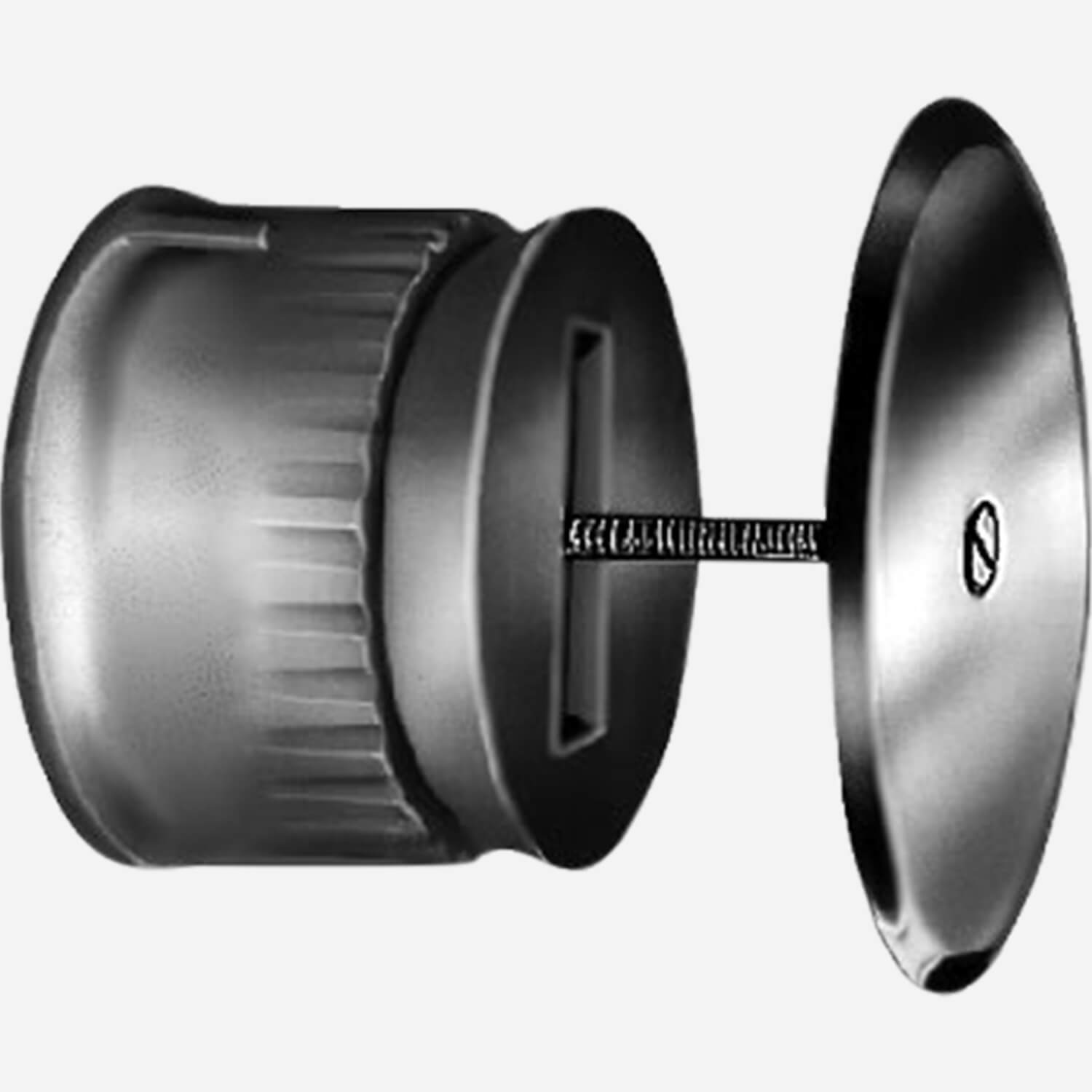

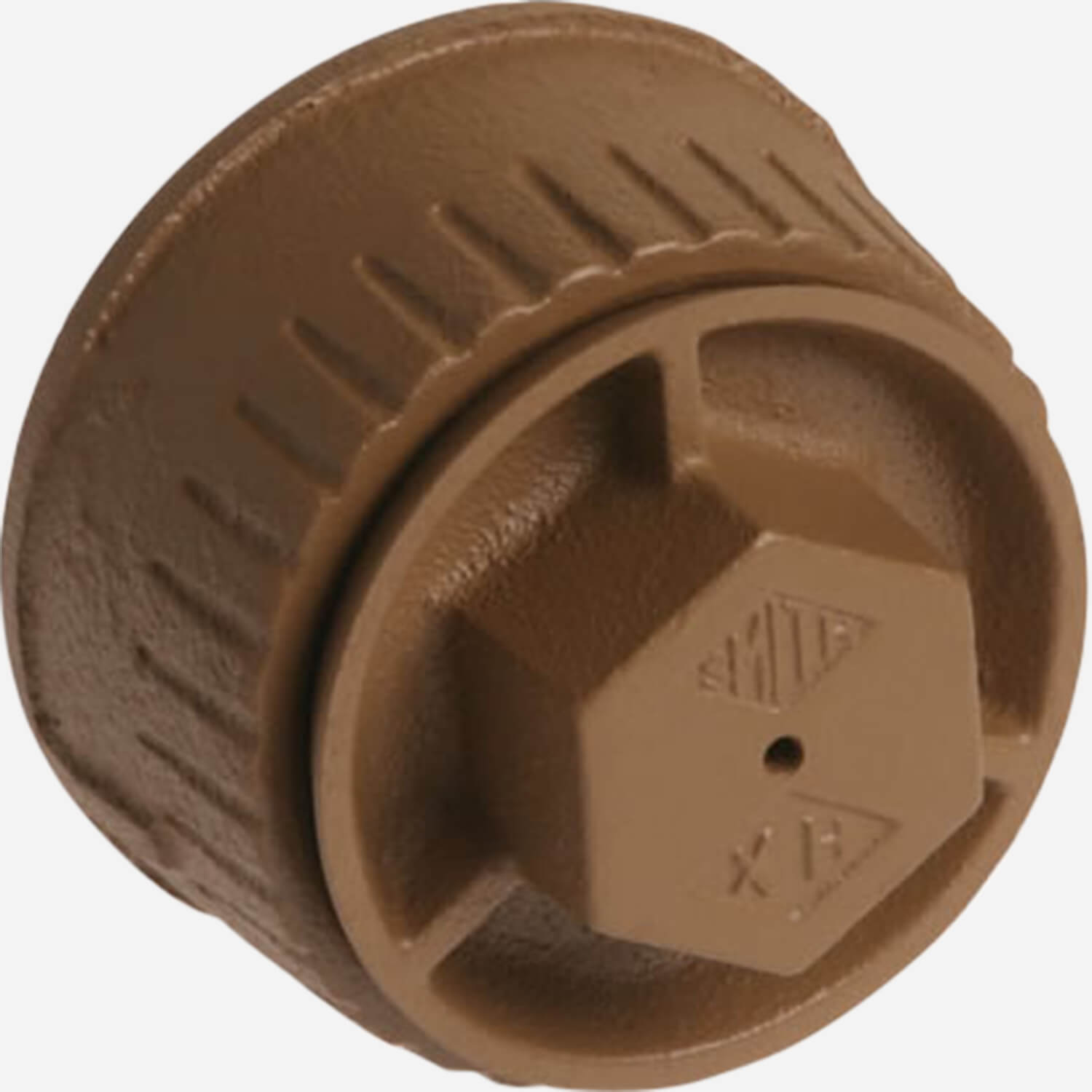

Model 4400 & 4402
Lead Seal Plug with Round Access Cover
These Duco coated cast iron ferrule cleanouts are installed in hub openings on drainage piping where a cleanout is required. The cast iron straight thread lead seal plug can be quickly and easily removed for cleaning. The ferrule is ribbed on the outside to prevent turning. A stainless steel cover is available if desired for finished walls when the ferrule is installed in vertical piping.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Caulk Ferrule Cleanout - Cast Iron Lead Countersunk Seal Plug [4400C | Plug only 4402C | Plug with Round Stainless Steel Cover and 1/4-20 x 2-1/2" Flat Head Machine Screw] | 923 KB | |||
 | | Caulk Ferrule Cleanout - Cast Iron Lead Countersunk Seal Plug [4400C | Plug only 4402C | Plug with Round Stainless Steel Cover and 1/4-20 x 2-1/2" Flat Head Machine Screw] | 0 | 36 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Specifications for Cleanouts | 0 | 217 KB | ||
| | Technical Data for Cleanouts | 0 | 906 KB | ||
| | Order Guidelines for Cleanouts | 0 | 120 KB | ||
| | Parts Order Guide for Cleanouts | 0 | 910 KB |
Specifications
| Variations | Longer Center Screw -LS - 6"(150) Length, T-Handle Plug -TP Plug Tapped 1/4"(6)-20 Thread, Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Cast Bronze Plug -BP, Polished Bronze -PB - Cover, Prime Coated Steel Cover -PC |
| Product Type | Cleanout |
Models
Caulk Ferrule Cleanout - Cast Iron Lead Countersunk Seal Plug
Plug Only
4400C02 | 2" Pipe Size
4400C03 | 3" Pipe Size
4400C04 | 4" Pipe Size
4400C05 | 5" Pipe Size
4400C06 | 6" Pipe Size
Plug with Stainless Steel Round Cover
and 1/4-20 x 2-1/2" Flat Head Machine Screw
4402C02 | 2" Pipe Size, Plug with 4-1/4" Cover
4402C03 | 3" Pipe Size, Plug with 5-1/2" Cover
4402C04 | 4" Pipe Size, Plug with 5-1/2" Cover
4402C05 | 5" Pipe Size, Plug with 7" Cover
4402C06 | 6" Pipe Size, Plug with 9-1/4" Cover
