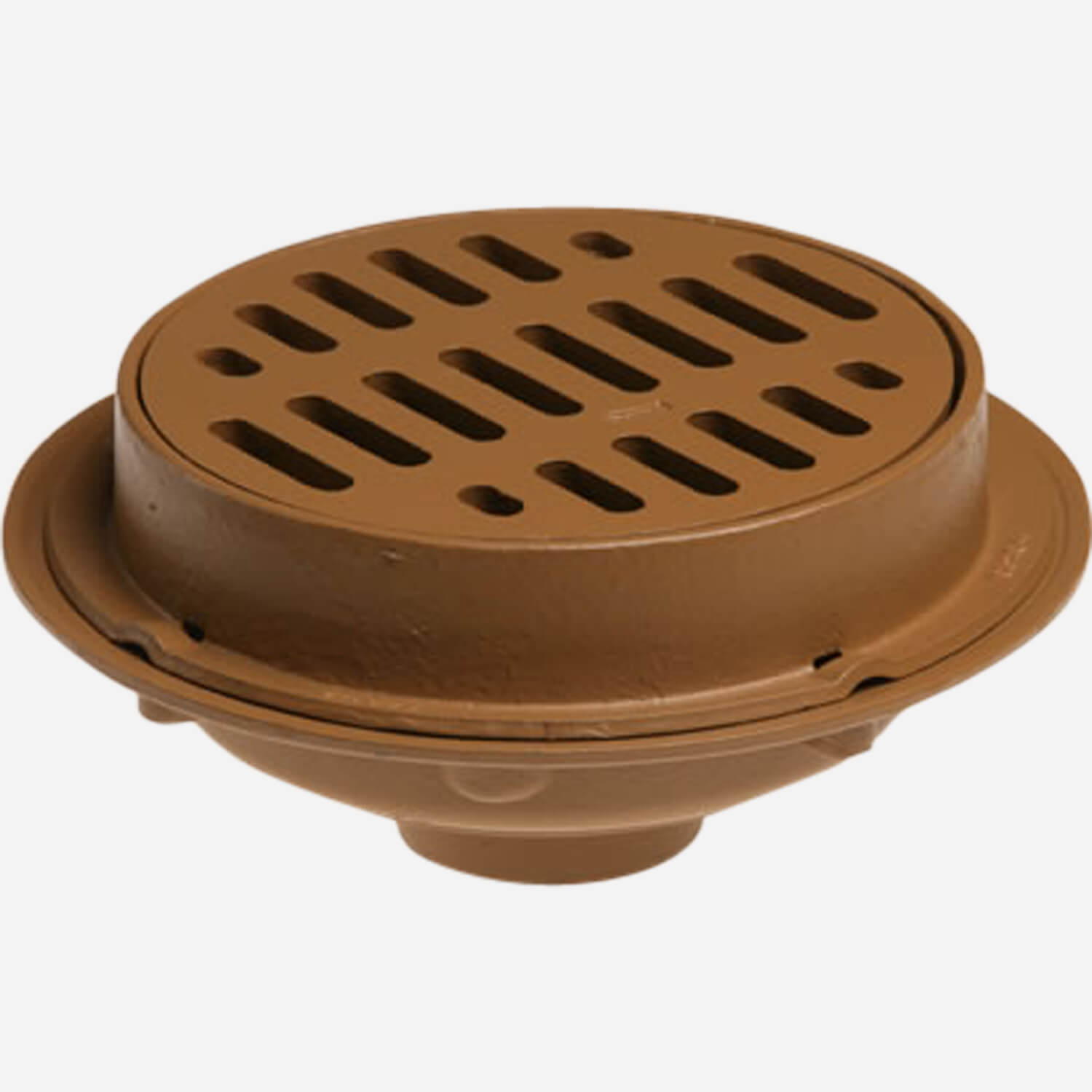

Model 2142
Medium Duty Floor Drains with 12" Top Solid Free-Standing Sediment Bucket
Designed to speed cleanout in areas where wastewater contains sediment and other debris, the solid, free-standing sediment. A handle is provided so the sediment bucket can be easily lifted through this floor drain's large 12" diam. grate. This medium duty floor drain and grate is made of Duco cast iron. Other configurations are available.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Floor Drain - 12" Round Top Solid Free-Standing Sediment Bucket [Bottom Outlets 2142C | Caulk; 2142T | Threaded; 2142Y | No-Hub; Side Outlets 2147C | Caulk; 2147T | Threaded] | 474 KB | |||
 | | Floor Drain - 12" Round Top Solid Free-Standing Sediment Bucket [Side Outlets 2147C | Caulk; 2147T | Threaded] Note: 2142 drain also shown on left side | 0 | 119 KB | ||
| | Floor Drain - 12" Round Top Solid Free-Standing Sediment Bucket [Bottom Outlets 2142C | Caulk; 2142T | Threaded; 2142Y | No-Hub] | 0 | 88 KB | ||
 | | Floor Drain - 12" Round Top Solid Free-Standing Sediment Bucket [Bottom Outlets 2142C | Caulk; 2142T | Threaded; 2142Y | No-Hub] | 0 | 600 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
 | | Floor Drain - 12" Round Top Solid Free-Standing Sediment Bucket [Bottom Outlets 2142C | Caulk; 2142T | Threaded; 2142Y | No-Hub] | 0 | 21 KB | ||
| | Technical Data for Floor Drains | 0 | 637 KB | ||
| | Parts Order Guide for Floor Drains | 0 | 6 MB | ||
| | Order Guidelines for Floor Drains | 0 | 120 KB |
Specifications
| Variations | Flat Bottom Strainer -FBS, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., NO-HUB Adaptor, Seepage Holes in Bucket -FP (Frost Proof), Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof Grate - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB |
| Product Type | Floor Drain |
Models
2142C | Caulk Bottom Outlet;
2142T | Threaded Bottom Outlet
2142Y | No-Hub Bottom Outlet

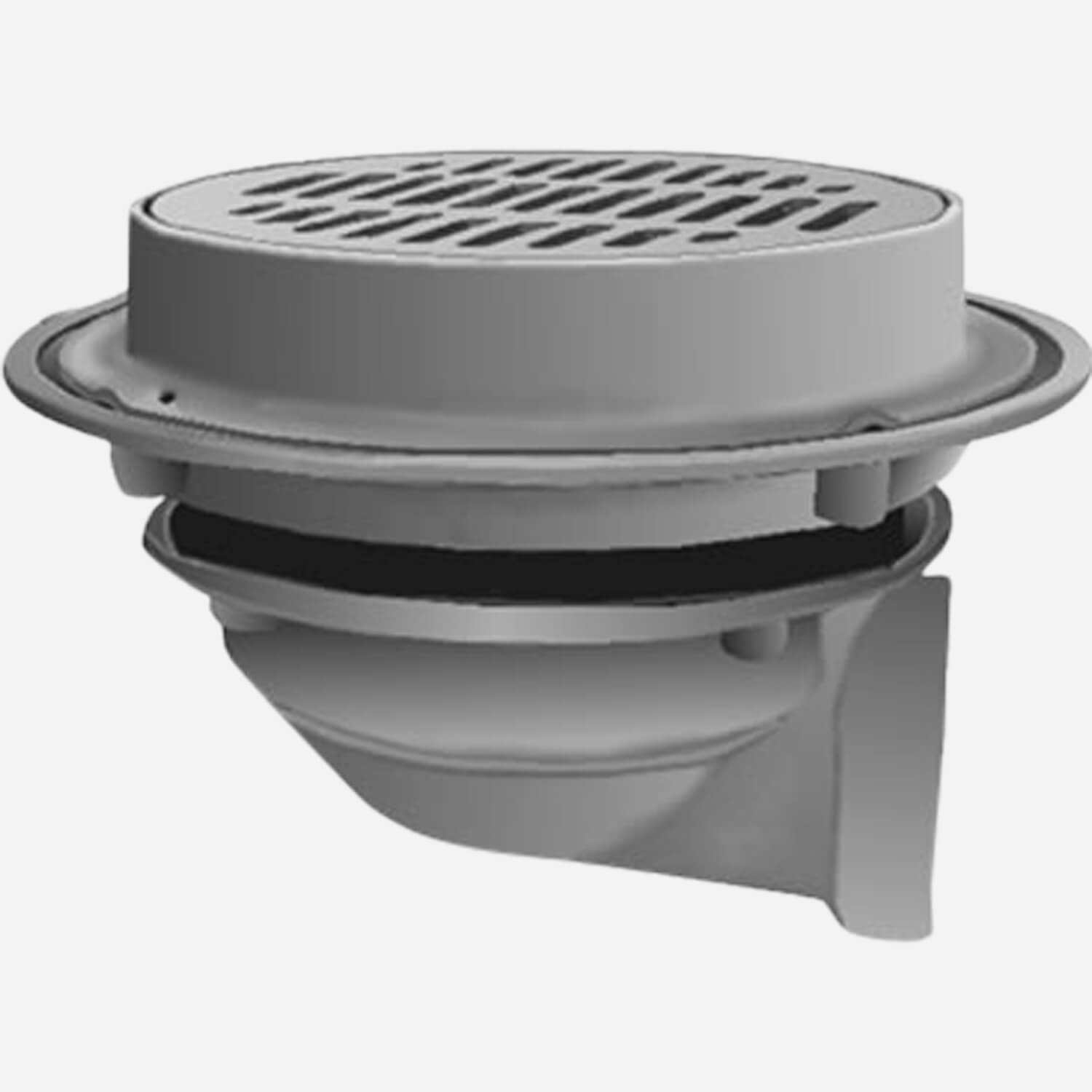

2147C | Caulk Side Outlet
2147T | Threaded Side Outlet
