Model 2230

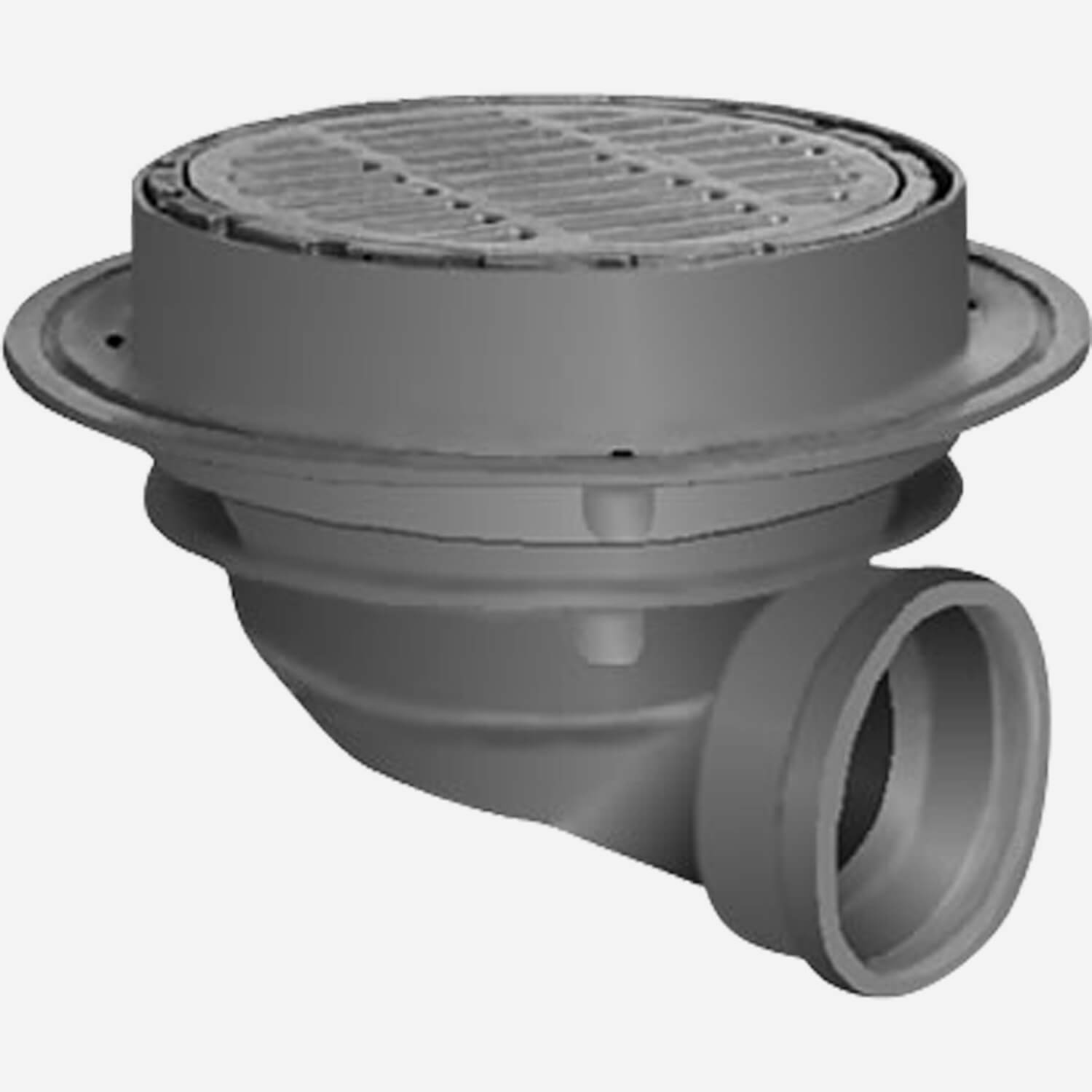

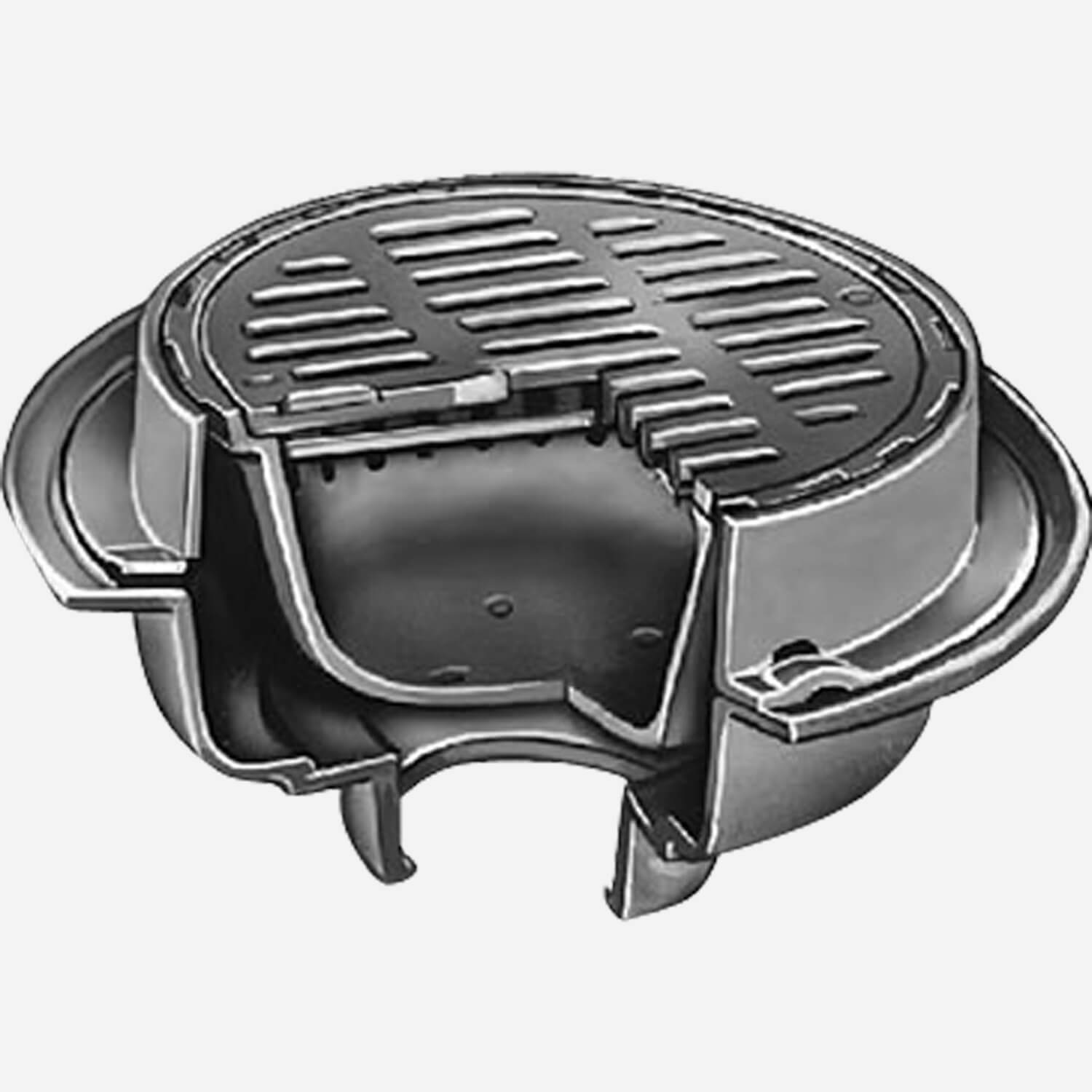

Light Duty Floor Drains with 12" Round Tops and Sediment Bucket
Designed to facilitate maintenance in high-flow areas where wastewater debris must not enter the drainage system. The Safe-Set® design of this floor drain allows proper realignment of the slotted sediment bucket once clean. This light duty floor drain and grate is made of Duco cast iron for static loads up to 4,999 lbs. (2,2500 kg.).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Light Duty Floor Drains with 12" Round Tops and Sediment Bucket [2230 | Bottom Outlet; 2235 | Side Outlet] | 609 KB | |||
 | | Light Duty Floor Drains with 12" Round Tops and Sediment Bucket [2235 | Side Outlet; 2230 | Bottom Outlet] | 0 | 136 KB | ||
| | Light Duty Floor Drains with 12" Round Tops and Sediment Bucket - Bottom Outlet | 0 | 215 KB | ||
 | | Medium Duty Floor Drains with 12" Round Adjustable Tops [2330C | Deep Body, Caulk Bottom Outlet; 2330Y | Deep Body, No-Hub Bottom Outlet; 2331C | Shallow Body, Caulk Bottom Outlet] | 0 | 1 MB | ||
| | Medium Duty Floor Drains with 12" Round Adjustable Tops [2335C | Caulk Side Outlet; 2335T | Thread Side Outlet] | 0 | 688 KB | ||
| | Light Duty Floor Drains with 12" Round Tops and Sediment Bucket [2230 | Bottom Outlet] | 0 | 328 KB | ||
| | Light Duty Floor Drains with 12" Round Tops and Solid Free Standing Sediment Bucket | 0 | 467 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
 | | Light Duty Floor Drains with 12" Round Tops and Sediment Bucket [2230 | Bottom Outlet] | 0 | 49 KB | ||
| | Technical Data for Floor Drains | 0 | 637 KB | ||
| | Parts Order Guide for Floor Drains | 0 | 6 MB | ||
| | Order Guidelines for Floor Drains | 0 | 120 KB |
Specifications
| Variations | Hinged Grate -H, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., NO-HUB Adaptor, Vandal Proof Grate - U, Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof Grate - U, (2) 3/8” (10) Tappings -TAP, Stainless steel mesh grate (256.00 sq. in.) 1 meter, Stainless Steel Mesh Lined Bucket -BS |
| Optional Materials | Ductile Iron Grate & Bucket -MGB, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB |
| Product Type | Floor Drain |
