Model 2340

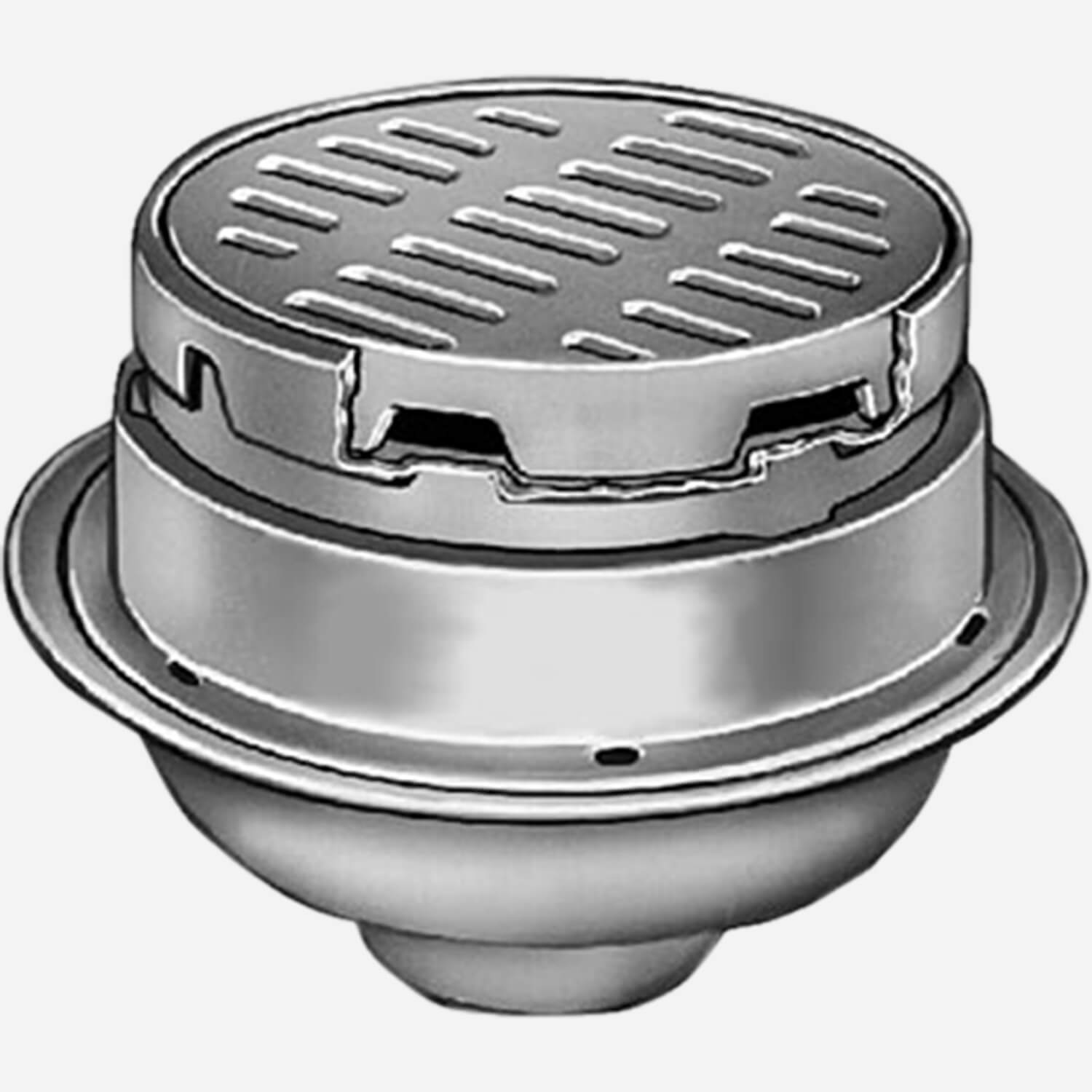

Heavy Duty Floor Drains with 12" Adjustable Round Tops and Tractor Grate
Engineered to withstand a static load of up to 7,999 lbs. (3,750 kg.), this durable Duco cast iron floor drain and tractor grate has an adjustable 12" diam. top for accurate leveling with adjacent surfaces. It is available in shallow body and side outlet configurations.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Heavy Duty Floor Drains with 12" Adjustable Round Tops and Tractor Grate [Deep Body with Bottom Outlet 2340C, 2340T, 2340Y; Shallow Body with Bottom Outlet 2341C, 2341T; Side Outlet 2345C, 2345T] | 1008 KB | |||
 | | Heavy Duty Floor Drains with 12" Adjustable Round Tops and Tractor Grate [Deep Body with Bottom Outlet 2340C, 2340T, 2340Y; Shallow Body with Bottom Outlet 2341C, 2341T; Side Outlet 2345C, 2345T] | 0 | 132 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Technical Data for Floor Drains | 0 | 637 KB | ||
| | Parts Order Guide for Floor Drains | 0 | 6 MB | ||
| | Order Guidelines for Floor Drains | 0 | 120 KB |
Specifications
| Variations | Adjustable Extensions 4 1/2(115) to 6"(150) -E, Flat Bottom Strainer -FBS, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., NO-HUB Adaptor, Sediment Bucket -B, Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof Grate - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB |
| Product Type | Floor Drain |
Models
Heavy Duty Floor Drains with 12" Adjustable Round Tops and Tractor Grate
DEEP BODY BOTTOM OUTLET
2340C | Caulk Outlet
2340T | Thread Outlet
2340Y | No-Hub Outlet
SHALLOW BODY BOTTOM OUTLET
2341C | Caulk Outlet
2341T | Thread Outlet

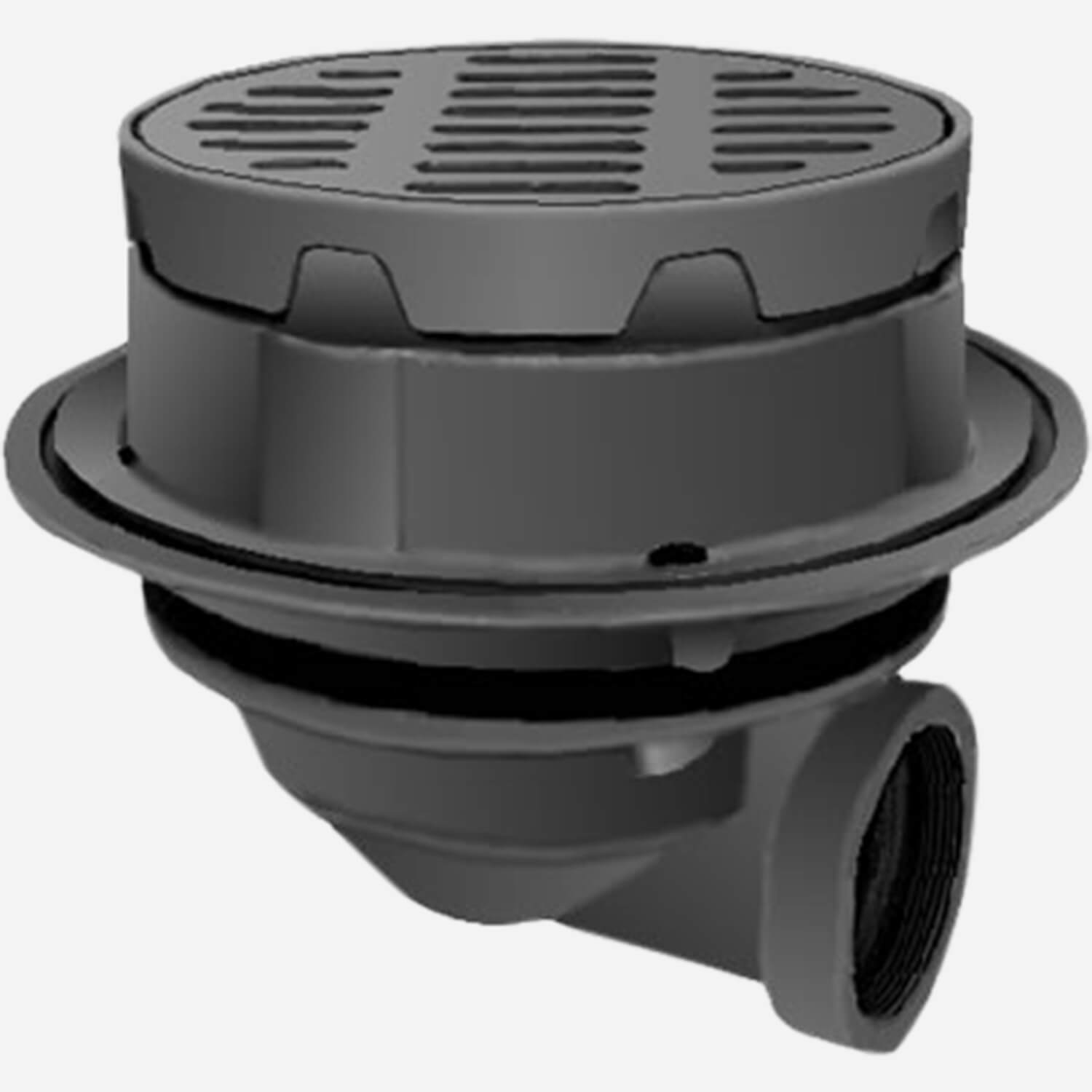

SIDE OUTLET
2345C | Caulk Outlet
2345T | Thread Outlet
OPTIONAL STRAINER HEADS
Suffix A | Round Strainer
Suffix B | Square Strainer
Suffix AV | Square Strainer which works with Flapper Backwater Valve
Suffix BS | Strainer Head with Square Hinged Cover
Suffix C | Reinforced Round Strainer
Suffix D | 7" Diameter Reinforced Tractor Round Strainer
Suffix E | 9" Diameter Reinforced Tractor Round Strainer
Suffix F | Round Tile Flange Strainer
Suffix F37 | 7" Diameter Adjustable Strainer Head
Suffix F38 | 9" Diameter Adjustable Strainer Head
Suffix G | Low Dome Strainer
Suffix H | Round Solid Hinged Cover Strainer
Suffix K | Reinforced Square Strainer
Suffix L | 4-1/2" x 8" Rectangular Strainer
Suffix M | 4" x 12" Rectangular Strainer
Suffix N | 5" x 9" Rectangular Strainer
Suffix P | 5" x 13" Rectangular Strainer
Suffix R | 6" x 10" Rectangular Strainer
Suffix T | 5" x 17" Rectangular Strainer
Suffix V | 3-1/2" x 3-1/2" x 4-1/2" Angle Strainer
Suffix W | 6-3/4" x 6-3/4" x 6-1/2" Angle Strainer
Suffix X | Extension Adaptor
Suffix Y | 2" Pipe Size Overflow with Standpipe
Suffix Z | 3" Pipe Size Overflow with Standpipe
