Medium Sump Boxes

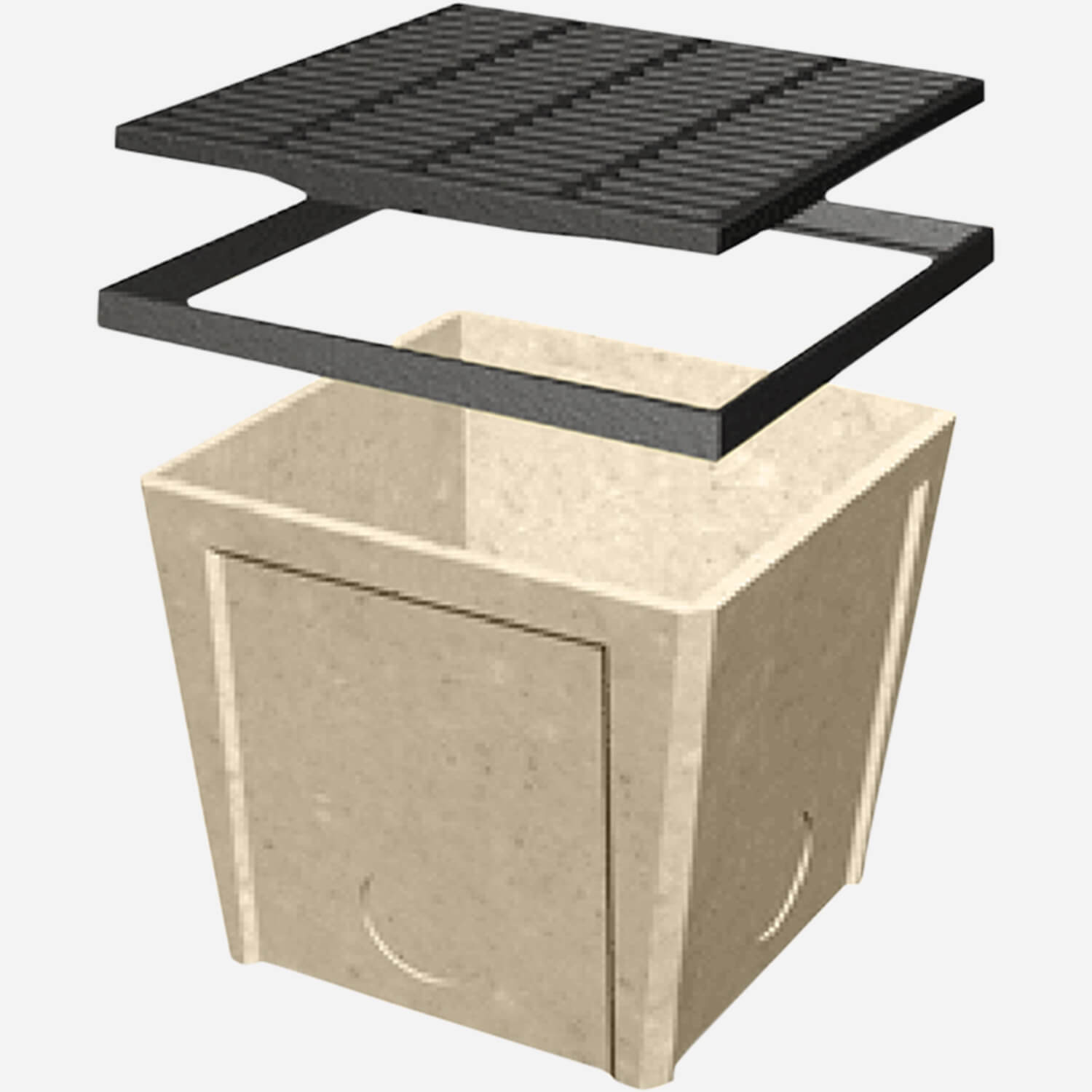

Smith Trench Drain Drainage Systems Sump Boxes are preassembled modular units which offer solutions to many applications. Well-suited for high capacity flow rates, solids and sludge handling, chemical containment, and pump housing, the smaller sump boxes are available in a range of sizes from 2’ x 2’ x 2’ to 3’ x 3’x 3’ nominal sizes.
These polymer concrete sump boxes are easily adapted for uses with any of the Channel Slope Precast Polymer Concrete Systems. Upon specification, knockouts can be custom fabricated for pipe connections. Regularly furnished with cast iron frame and loose set cast iron slotted grate. Jay R. Smith Mfg. Co. Drainage Systems’ trained staff will assist in specifying the 9846 Sump Box to meet your special needs.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Submittal 9846 Sump Boxes | 158 KB | |||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Quote Worksheet Smith Drainage Systems | 0 | 39 KB |
Models
Polymer Concrete One-Piece Sump Box with Duco Coated Cast Iron Frame and Grate. Load Class C. Specify Diameter and Location of Invert of Inlet and Outlet

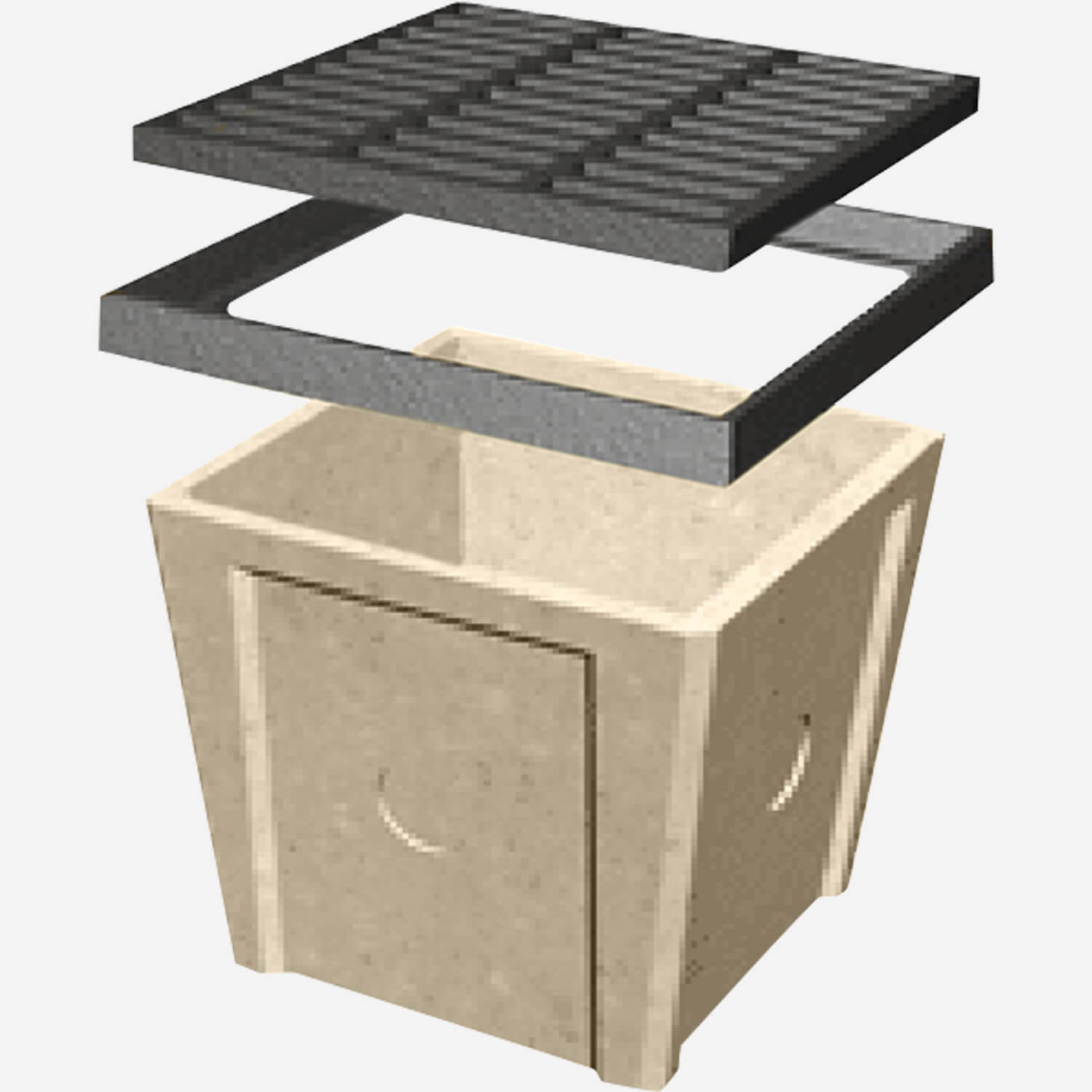

9846
Inside Dimension: 2' x 2' (610 mm x 610 mm)
Capacity: 43.3 gallon (164 liter)
Height without Frame: 24" (610 mm)
Height with Frame: 26.75" (680 mm)
Top Outside Dimension: 27.88 (708 mm)
9847
Inside Dimension: 3' x 3' (914 mm x 914 mm)
Capacity: 161.2 gallon (610 liter)
Height without Frame: 35.75" (909 mm)
Height with Frame: 38.50" (978 mm)
Top Outside Dimension: 40.50 (1029 mm)
