Model 1110

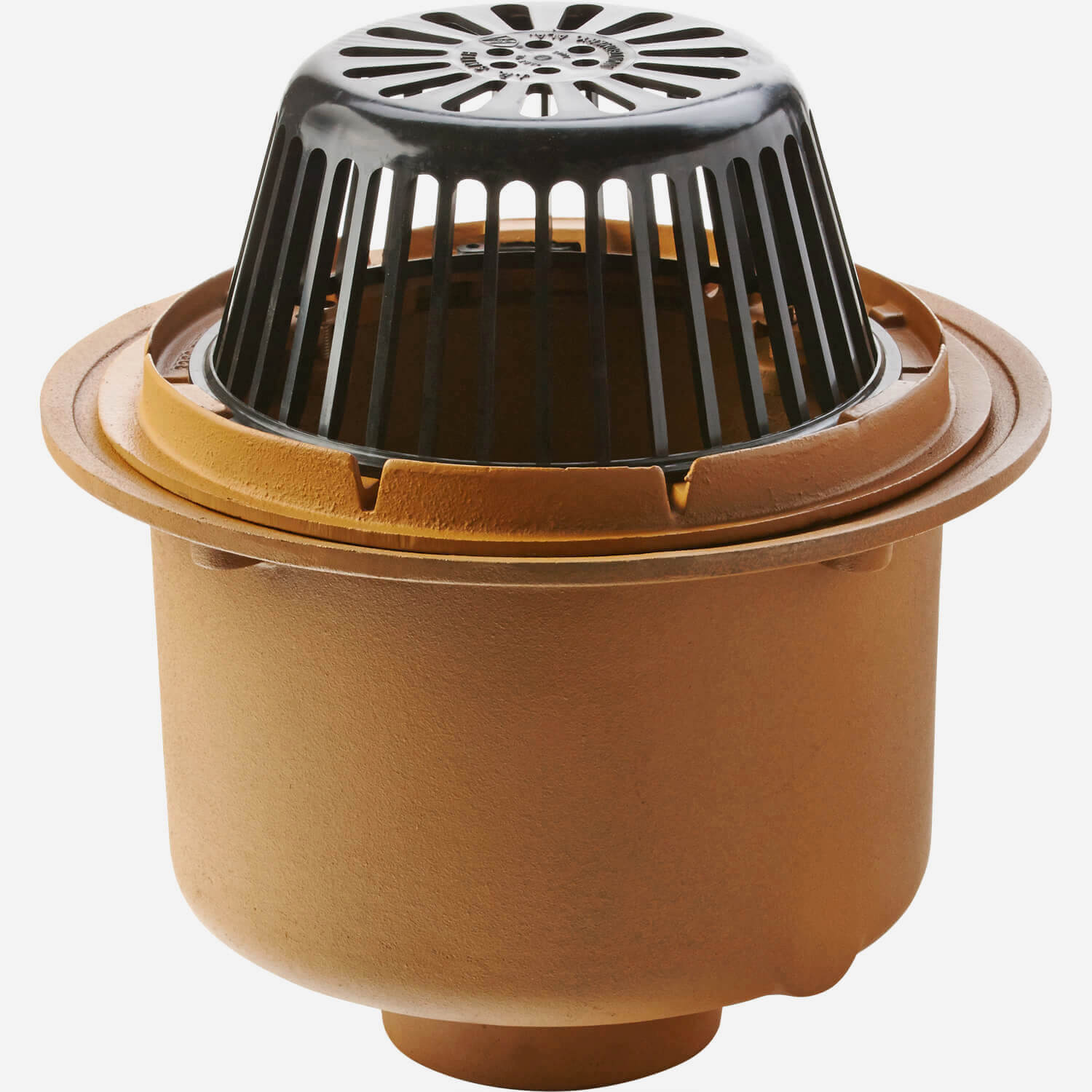

Deep Sump Heavy Downpour Roof Drain and Low Profile Dome
Designed to drain unusually heavy rains from flat roofs of any construction, this 16" (406) diam., Duco coated cast iron drain has a 11" (275) deep, 12" (305) diam. sump that allows entrapped air, which would stop water from entering the drain pipe/leader, to escape. Its combined gravel stop and flashing collar grips roofing membranes for a leakproof seal without puncturing. The drain is protected from debris by a low profile polyethylene dome.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Deep Sump Heavy Downpour Roof Drains - 16" Diameter - Low Profile Dome [1110C | Caulk Bottom Outlet; 1110T | Threaded Bottom Outlet; 1110Y | No-Hub Bottom Outlet; 1120C | Caulk Side Outlet; 1120T | Threaded Side Outlet] | 606 KB | |||
 | | Deep Sump Heavy Downpour Roof Drains - 16" Diameter - Low Profile Dome [1110C | Caulk Bottom Outlet; 1110T | Threaded Bottom Outlet; 1110Y | No-Hub Bottom Outlet; 1120C | Caulk Side Outlet; 1120T | Threaded Side Outlet] | 0 | 118 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Specifications for Roof Drains | 0 | 230 KB | ||
| | Technical Data for Roof Drains | 0 | 2 MB | ||
| | Parts Order Guide for Roof Drains | 0 | 4 MB | ||
| | Order Guidelines for Roof Drains | 0 | 120 KB |
Specifications
| Variations | Expansion Joint (Specify Fig. 1710), Extension -E - (Specify Height), Sump Receiver -R, Underdeck Clamp -C, (2) 3/8” (10) Tappings -TAP, Stainless Steel Mesh Over Dome -SSM |
| Optional Materials | Galvanized Cast Iron Dome -CIDG, Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized -G, Rough Bronze Dome -RBD |
| Product Type | Roof Drain |
Models
Deep Sump Heavy Downpour Roof Drains - 16" (406 mm) Diameter - Low Profile Dome
Bottom Outlet
1110C | Caulked
1110T | Threaded
1110Y | No-Hub
Side Outlet
1120C | Caulked
1120T | Threaded
