Model DX1250

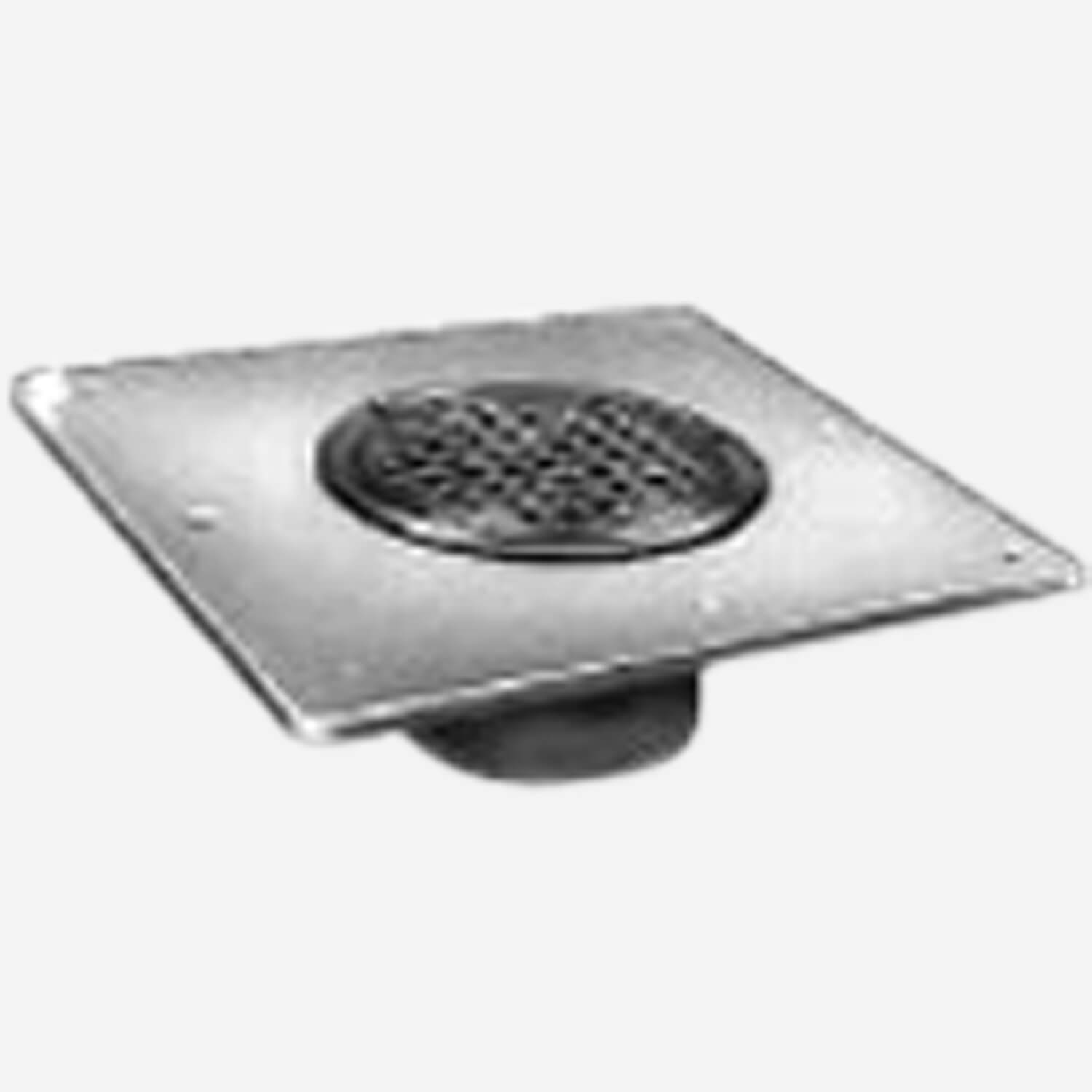

Square Wide Flange Body Roof Drain with Nickel Bronze Tractor Grate
Engineered for wood or concrete deck installation where waterproof finished decking is installed, this 7 3/4" diam. general purpose floor drain has a 14-1/4" sq. flange that provides a large surface for bonding with waterproofing membranes. A tough, 6-1/2" nickel bronze tractor grate is secured with screws to the drains body and supports heavy traffic.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Square Wide Flange Body Roof Drain with Nickel Bronze Tractor Grate | 945 KB | |||
 | | Square Wide Flange Body Roof Drain with Nickel Bronze Tractor Grate | 0 | 18 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Specifications for Roof Drains | 0 | 230 KB | ||
| | Technical Data for Roof Drains | 0 | 2 MB | ||
| | Parts Order Guide for Roof Drains | 0 | 4 MB | ||
| | Order Guidelines for Roof Drains | 0 | 120 KB |
Specifications
| Variations | Membrane Clamp - (Specify DX2565R), NO-HUB Adaptor - (Specify Fig. 2646Y), Securing Holes -SH, Sediment Bucket -B, Underdeck Clamp -C, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Galvanized Cast Iron -G, Polished Bronze -PB |
| Product Type | Roof Drain |
