Model 1909
Planter Area Drain for Multi-Levels

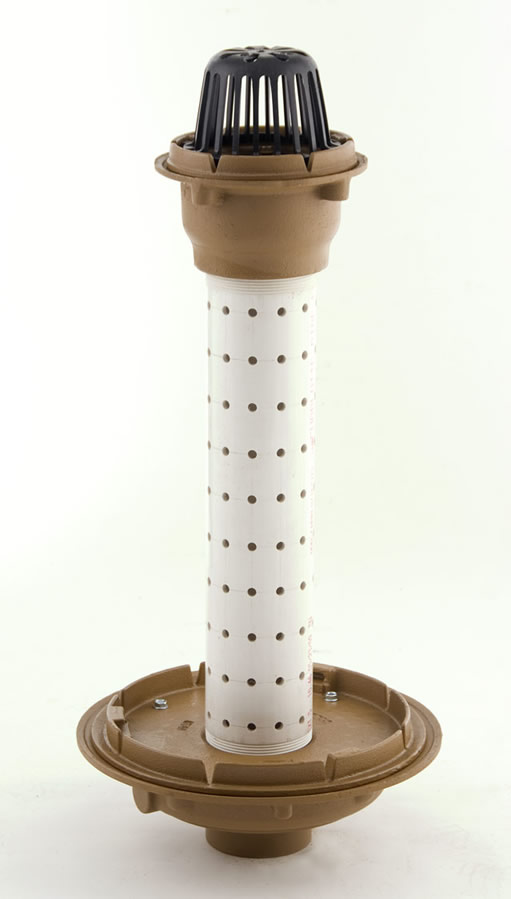

Designed for sub-surface installation in multi-level planting areas of green roof systems, this 15 1/4" diam. duco cast iron drain protects roof decking while a 8 1/2" diam. surface level drain with gravel-stop dome sits above-ground atop a 4" diam. perforated PVC standpipe that supports optimal vegetation growth.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Plant Area Drains [1909C | Caulk Bottom Outlet; 1909Y | No-Hub Bottom Outlet] | 489 KB | |||
 | | Plant Area Drains [1909C | Caulk Bottom Outlet; 1909Y | No-Hub Bottom Outlet] | 0 | 173 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Green Roof and Cool Roof Drains | 0 | 2 MB | ||
 | | Plant Area Drains [1909C | Caulk Bottom Outlet; 1909Y | No-Hub Bottom Outlet] | 0 | 36 KB | ||
| | Technical Data for Roof Drains | 0 | 2 MB | ||
| | Order Guidelines for Roof Drains | 0 | 120 KB |
Specifications
| Variations | L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy, Solid Standpipe -SP, Standpipe Covered with Stainless Steel Mesh -SSM, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron -G - Body & Collar, Galvanized Cast Iron Dome -CIDG, Rough Bronze Dome -RBD |
| Product Type | Roof Drain |
Models
1909C | Caulk Bottom Outlet
1909Y | No-Hub Bottom Outlet
1909Y | No-Hub Bottom Outlet
