Model 1330-1357

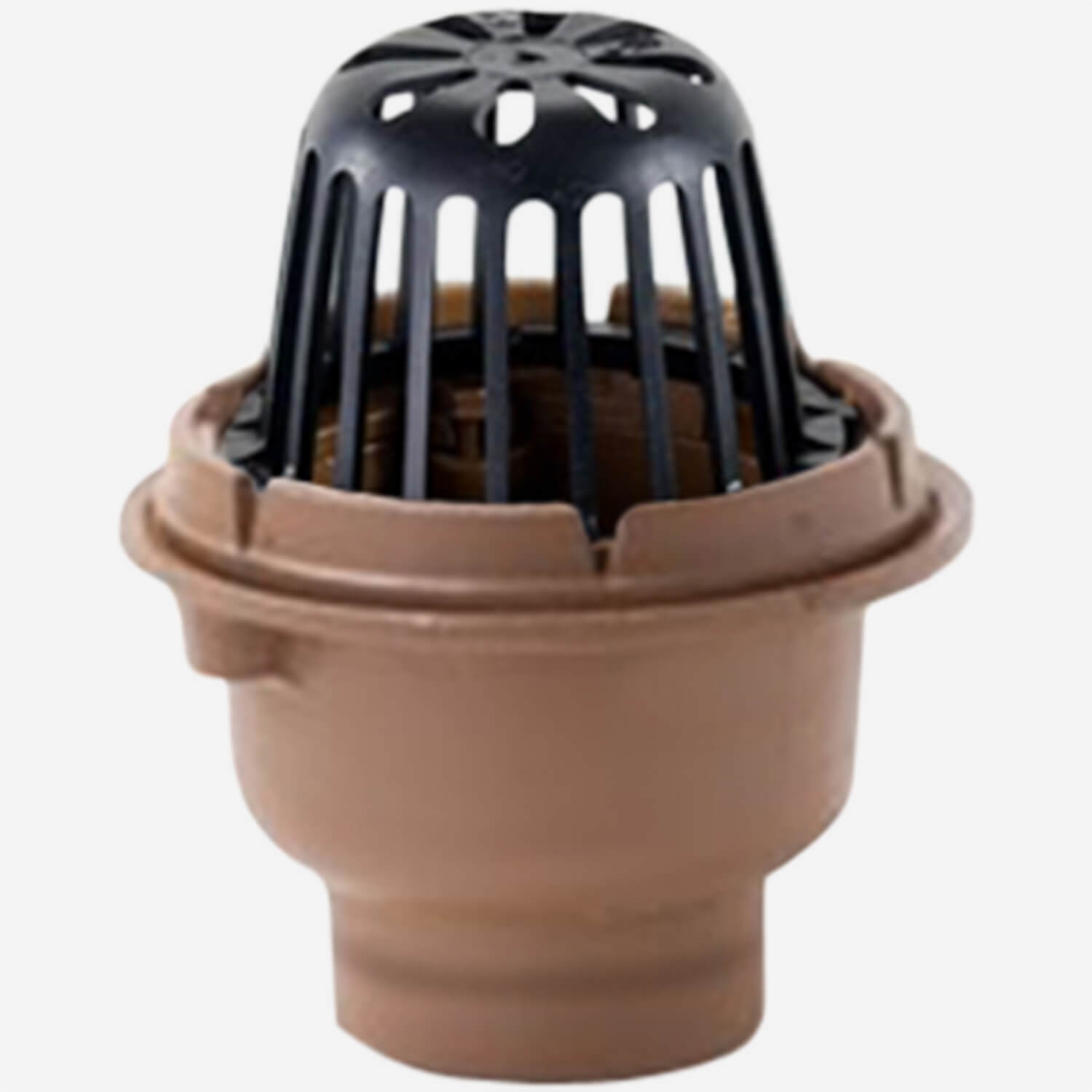

8-1/2 Inch Diameter Body Roof Drain - Low Profile Dome
The small 8-1/2" (215) diam. body of this versatile roof drain permits installation in flat roofs, gutters and roof valleys where limited space is available. Its flashing clamp securely grips surrounding roofing materials without puncturing them for leakproof performance. This drain is made of corrosion resistant, Duco coated cast iron and topped by a polyethylene dome strainer that keeps drainage systems debris-free for years of service.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | General Purpose Roof Drain - 8-1/2-Inch Diameter - Low Profile Dome [1330C | Caulk Bottom Outlet; 1330Y | No-Hub Bottom Outlet 1330T | Threaded Bottom Outlet; 1340C | Caulk Side Outlet;1340T | Threaded Side Outlet] | 490 KB | |||
 | | General Purpose Roof Drain - 8-1/2-Inch Diameter - Low Profile Dome [1340C | Caulk Side Outlet;1340T | Threaded Side Outlet] | 0 | 302 KB | ||
| | General Purpose Roof Drain with Deck Plate - 8-1/2-Inch Diameter - Low Profile Dome [1330C-RDP | Caulk Bottom Outlet; 1330Y-RDP | No-Hub Bottom Outlet] | 0 | 103 KB | ||
| | Roof Drain for Insulated Built-Up Membrane Roof - With Perforated Stainless Steel Extension [1357C | Caulk Bottom Outlet; 1357Y | No-Hub Bottom Outlet] | 0 | 148 KB | ||
| | General Purpose Roof Drain with Top Mount Deck Extension Plate - 8-1/2-Inch Diameter - Low Profile Dome [1330C-DEP | Caulk Bottom Outlet; 1330Y-DEP | No-Hub Bottom Outlet 1330T-DEP | Threaded Bottom Outlet] | 0 | 74 KB | ||
| | General Purpose Roof Drain - 8-1/2-Inch Diameter - Low Profile Dome [1330C | Caulk Bottom Outlet; 1330Y | No-Hub Bottom Outlet 1330T | Threaded Bottom Outlet] | 0 | 245 KB | ||
 | | General Purpose Roof Drain - 8-1/2-Inch Diameter - Low Profile Dome [1330C | Caulk Bottom Outlet; 1330Y | No-Hub Bottom Outlet 1330T | Threaded Bottom Outlet; 1340C | Caulk Side Outlet;1340T | Threaded Side Outlet] | 0 | 300 KB | ||
| | General Purpose Roof Drain - 8-1/2-Inch Diameter - Low Profile Dome [1340C | Caulk Side Outlet; 1340T | Threaded Side Outlet] | 0 | 548 KB | ||
| | General Purpose Roof Drain with Deck Plate - 8-1/2-Inch Diameter - Low Profile Dome [1330C-RDP | Caulk Bottom Outlet; 1330Y-RDP | No-Hub Bottom Outlet] | 0 | 725 KB | ||
| | Roof Drain for Insulated Built-Up Membrane Roof - With Perforated Stainless Steel Extension [1357C | Caulk Bottom Outlet; 1357Y | No-Hub Bottom Outlet] | 0 | 606 KB | ||
| | General Purpose Roof Drain with Top Mount Deck Extension Plate - 8-1/2-Inch Diameter - Low Profile Dome [1330C-DEP | Caulk Bottom Outlet; 1330Y-DEP | No-Hub Bottom Outlet 1330T-DEP | Threaded Bottom Outlet] | 0 | 962 KB | ||
| | General Purpose Roof Drain with Vertical Extension - 8-1/2-Inch Diameter - Low Profile Dome [1330C-E | Caulk Bottom Outlet; 1330Y-E | No-Hub Bottom Outlet; 1330T-E | Threaded Bottom Outlet; 1340C-E | Caulk Side Outlet;1340T-E | Threaded Side Outlet] | 0 | 446 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Specifications for Roof Drains | 0 | 230 KB | ||
 | | General Purpose Roof Drain - 8-1/2-Inch Diameter - Low Profile Dome [1330C | Caulk Bottom Outlet; 1330Y | No-Hub Bottom Outlet; 1330T | Threaded Bottom Outlet] | 0 | 23 KB | ||
| | Technical Data for Roof Drains | 0 | 2 MB | ||
| | Parts Order Guide for Roof Drains | 0 | 4 MB | ||
| | Order Guidelines for Roof Drains | 0 | 120 KB |
Specifications
| Variations | Expansion Joint (Specify Fig. 1710) - (Fig. 1330 only), Extension -E - (Specify Height), L-Shaped Underdeck Clamp -CL, L Speedi-Set® Service Weight - (Fig. 1330 Only), LXH Speedi-Set® Extra Heavy - (Fig. 1330 Only), NO-HUB Adaptor - Fig. 1340 Only (Specify Fig. 2646Y), Secondary Flashing Clamp -C2, Sump Receiver -R, Underdeck Clamp -C, Vandal Proof - Dome - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Roof Deck Plate -RDP, Water Dams (see submittal for available sizes) -WD |
| Optional Materials | Aluminum Dome -AD, Cast Iron Dome -CID, Galvanized Cast Iron -G - Body & Collar, Galvanized Cast Iron Dome -CIDG, Rough Bronze Dome -RBD |
| Product Type | Roof Drain |
Models
General Purpose Roof Drain - 8-1/2-Inch Diameter - Low Profile Dome [submittal]
1330C | Caulk Bottom Outlet
1330Y | No-Hub Bottom Outlet
1330T | Threaded Bottom Outlet
1340C | Caulk Side Outlet
1340T | Threaded Side Outlet
General Purpose Roof Drain with Vertical Extension - 8-1/2-Inch Diameter - Low Profile Dome [submittal]
1330C-E | Caulk Bottom Outlet
1330Y-E | No-Hub Bottom Oulet
1330T-E | Threaded Bottom Outlet
1340C-E | Caulk Side Outlet
1340T-E | Threaded Side Outlet

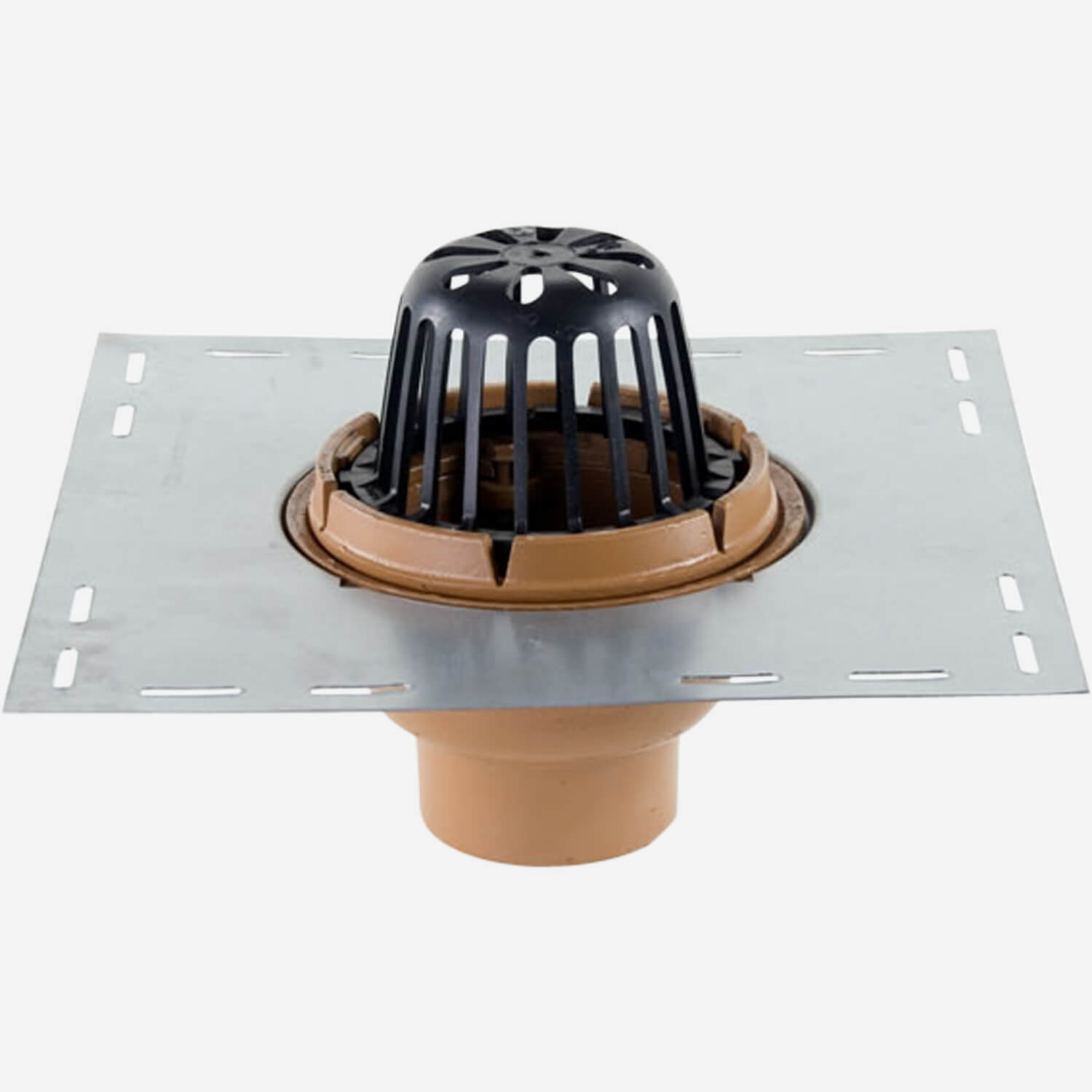

General Purpose Roof Drain with Deck Plate - 8-1/2-Inch Diameter - Low Profile Dome [submittal]
1330C-RDP | Caulk Bottom Outlet
1330Y-RDP | No-Hub Bottom Outlet
General Purpose Roof Drain with Top Mount Deck Extension Plate - 8-1/2-Inch Diameter - Low Profile Dome [submittal]
1330C-DEP | Caulk Bottom Outlet
1330Y-DEP | No-Hub Bottom Outlet
1330T-DEP | Threaded Bottom Outlet
Roof Drain for Insulated Built-Up Membrane Roof - With Perforated Stainless Steel Extension [submittal]
1357C | Caulk Bottom Outlet
1357Y | No-Hub Bottom Outlet
