Model 0834 Series
Floor Mounted Support for Wall-Mounted Bi-Level Electrical Water Cooler
Smith floor-mounted fixture supports are fabricated of tubular, epoxy-coated steel uprights welded to pre-drilled steel bases. The uprights are furnished with heavy-gauge backing plates with studs attached for securing typically two water coolers. The installer can specify stud dimensions.

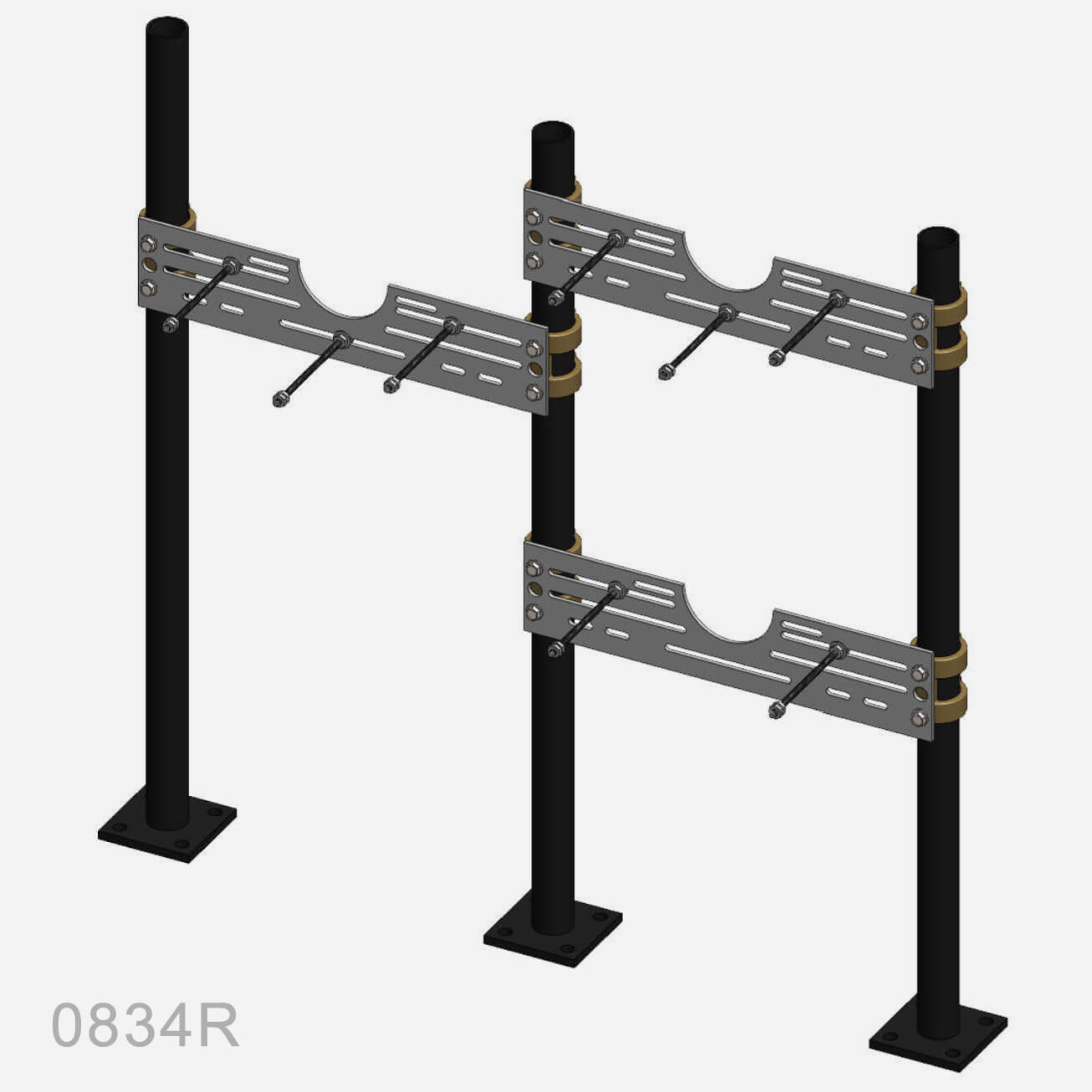

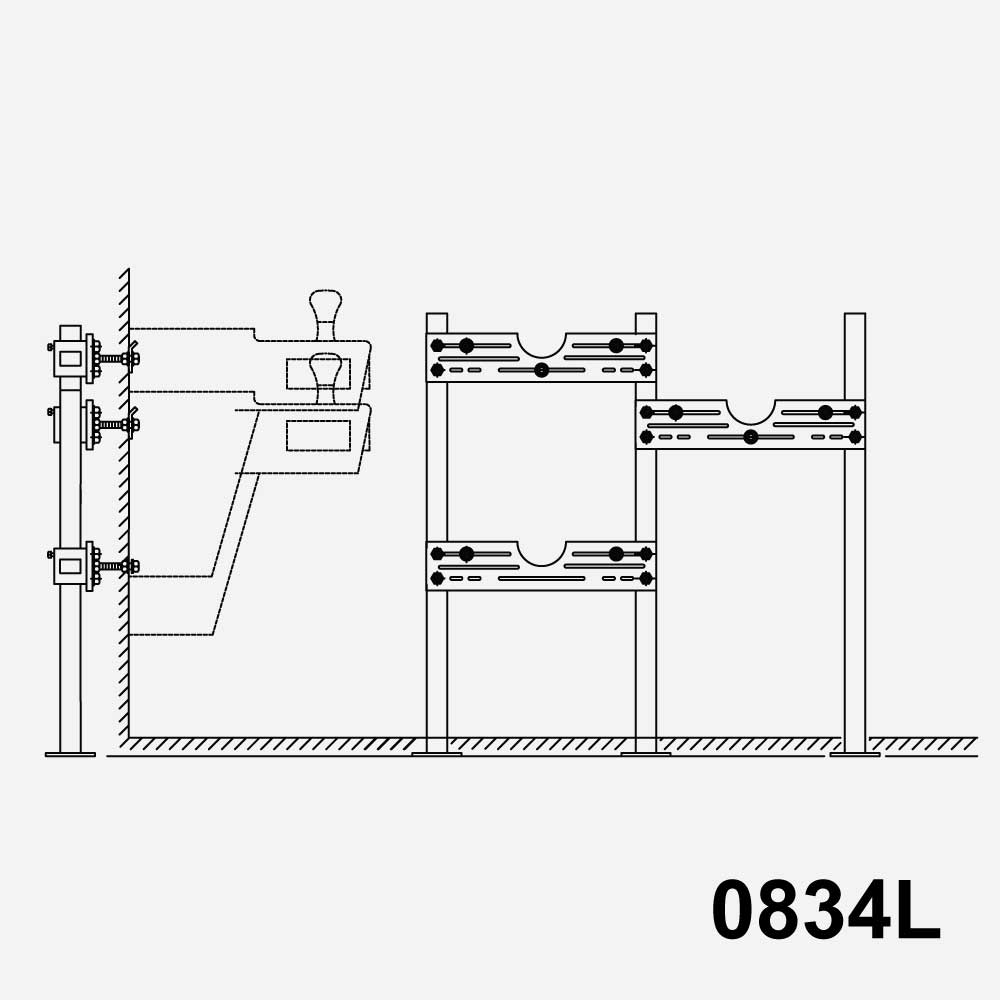

Specify Figures 0834L (left side high) or 0834R (right side high) for typical installation using 3 support plates.

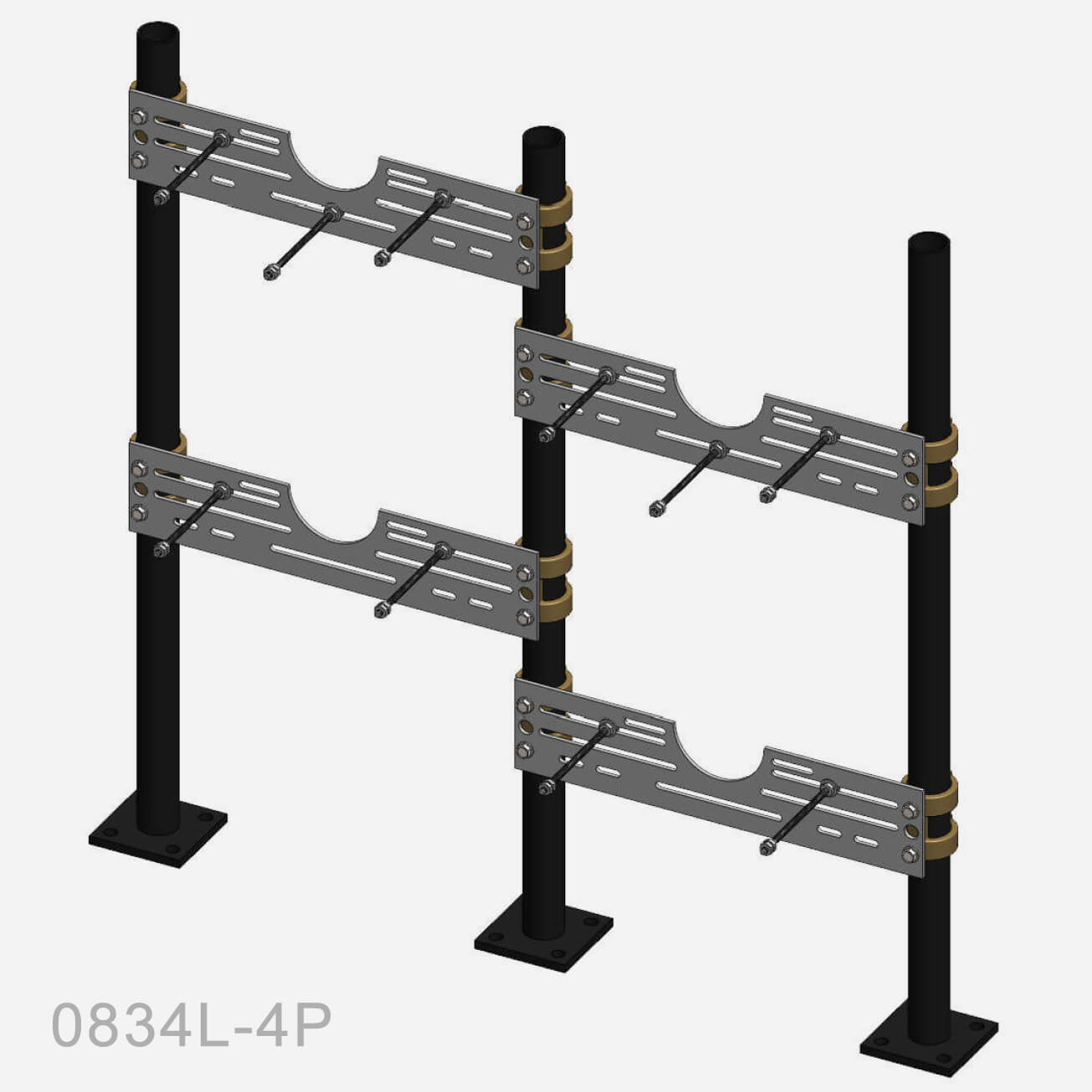

Specify Figures 0834L-4P (left side high) or 0834L-4P (right side high) for heavy-duty installation using 4 support plates.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Floor Mounted Support for Bi-Level Wall Mounted Water Coolers including 3 Support Plates and Studs - Typical Installation | 294 KB | |||
 | | Floor Mounted Support for Bi-Level Wall Mounted Water Coolers including Support Plates and Studs [834L | 3 plates Left Side High] | 0 | 92 KB | ||
 | | Floor Mounted Support for Bi-Level Wall Mounted Water Coolers including Support Plates and Studs [834 | 3 plates; 0834L-4P | Heavy Duty Installation with 4 Plates,- Left Side High; 0834R-4P | Heavy Duty Installation with 4 Plates,- Righ Side High] | 0 | 3 MB | ||
| | Floor Mounted Support for Bi-Level Wall Mounted Water Coolers including 4 Support Plates and Studs - Left Side High Heavy Duty Installation | 0 | 379 KB | ||
| | Floor Mounted Support for Bi-Level Wall Mounted Water Coolers including 4 Support Plates and Studs - Right Side High Heavy Duty Installation | 0 | 382 KB | ||
| | Floor Mounted Support for Wall-Mounted Bi-Level Electrical Water Cooler with 3 Mounting Plates- Exclusive for Install on Elkay EZSTLDDLC, EZSTTLDDSC, EZSTLDDWSSK, EZSTLDDWSVRLK, EZSTLG8, EZSTL8 and others. | 0 | 840 KB | ||
| | Floor Mounted Support for Wall-Mounted Bi-Level Electrical Water Cooler with 4 Mounting Plates- Exclusive for Install on Elkay EZSTLDDLC, EZSTTLDDSC, EZSTLDDWSSK, EZSTLDDWSVRLK, EZSTLG8, EZSTL8, EZSTL8C, EZOSTL8, EZSTL8LCand others. | 0 | 880 KB | ||
| | Floor Mounted Support for Wall-Mounted Bi-Level Electrical Water Cooler with 3 Mounting Plates- Exclusive for Install on Murdock A172108F-UG, A172108F-UG-SO, A172108F-UG-VR, A172108S-UG, A172108S-US-SO, A172108S-UG-VR, A172408F-UG and others | 0 | 522 KB | ||
| | Floor Mounted Support for Wall-Mounted Bi-Level Electrical Water Cooler with 4 Mounting Plates- Exclusive for Install on Murdock A172108F-UG, A172108F-UG-SO, A172108F-UG-VR, A172108S-UG, A172108S-US-SO, A172108S-UG-VR, A172408F-UG, and others | 0 | 541 KB |
Specifications
| Product Type | Lavatory and Sink Support |
