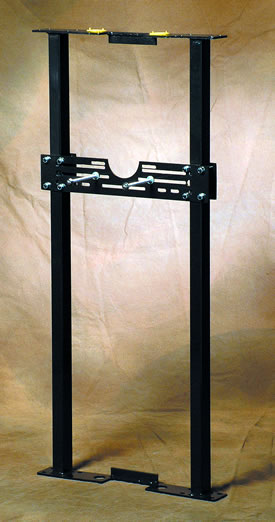

Labor Saver® Upright for High Back Lavatories with Concealed Wall Hanger - Floor Mounted

Model 0801

Pre-assembled, Easy to Adjust, Good for Narrow Wall and Metal Stud Configurations.

The rigid, unitized frame of our Labor Saver® floor mounted supports for high back lavatories drastically speeds and simplifies installation. Fabricated of epoxy coated heavy gauge steel, they are built to fit in narrow wall cavities. The uprights are furnished with a heavy gauge backing plate that is pre punched to accept fasteners, anchors, supply and drainage lines.

Pro Tip: The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	Answers	File Size
Submittals	Submittal 0801 Support	Submittal 0801 Support		369 KB
Drawings	0801 Support (dwg)	DWG 0801 Support	0	59 KB
Submittals	Submittal 0801D Support	Submittal 0801D Support	0	377 KB
Articles	Article: Labor Saver®	Article: Labor Saver®	0	142 KB
Specifications	Specifications for Lavatory Supports	Specifications for Lavatory Supports	0	142 KB
Brochures/Flyers	Lavatory Support Flyer (pdf)	Flyer Lavatory Support	0	2 MB
Brochures/Flyers	Contractor Labor Saving Products Brochure (pdf)	Contractor Labor Saving Products Brochure (pdf)	0	5 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	0	7 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	0	718 KB
Case Studies	Case Study Federal Building Installation Labor Saver®	Case Study Federal Building Installation Labor Saver®	0	58 KB
Case Studies	Case Study Lourdes Hospital Labor Saver®	Case Study Lourdes Hospital Labor Saver®	0	153 KB
Case Studies	Case Study Pre-Fabrication Battery Installation Labor Saver®	Case Study Pre-Fabrication Battery Installation Labor Saver®	0	52 KB
Cross References	Cross Ref Standard Fixture Support vs LaborSaver®	Cross Ref Standard to Labor Saver Fixture Support	0	242 KB
Images	0801 - Labor Saver Upright for High Back Lavatories with Concealed Wall Hanger (hi res jpg)		0	29 KB
Manuals	Technical Data for Lavatory Supports	Technical Data for Lavatory Supports	0	493 KB
Parts Manuals	Parts Order Guide for Lavatory Supports	Parts Order Guide for Lavatory Supports	0	749 KB
Ordering	Order Guidelines for Lavatory Supports	Order Guidelines for Lavatory Supports	0	120 KB
Ordering	Quote Worksheet Smith Drainage Systems (pdf)	Quote Worksheet Smith Drainage Systems	0	39 KB
Videos	Labor Saver® (video)	Video Labor Saver®	0	132 KB
