Stainless Steel Cored Hole Hydrant Box
Easy Installation in Concrete Buildings

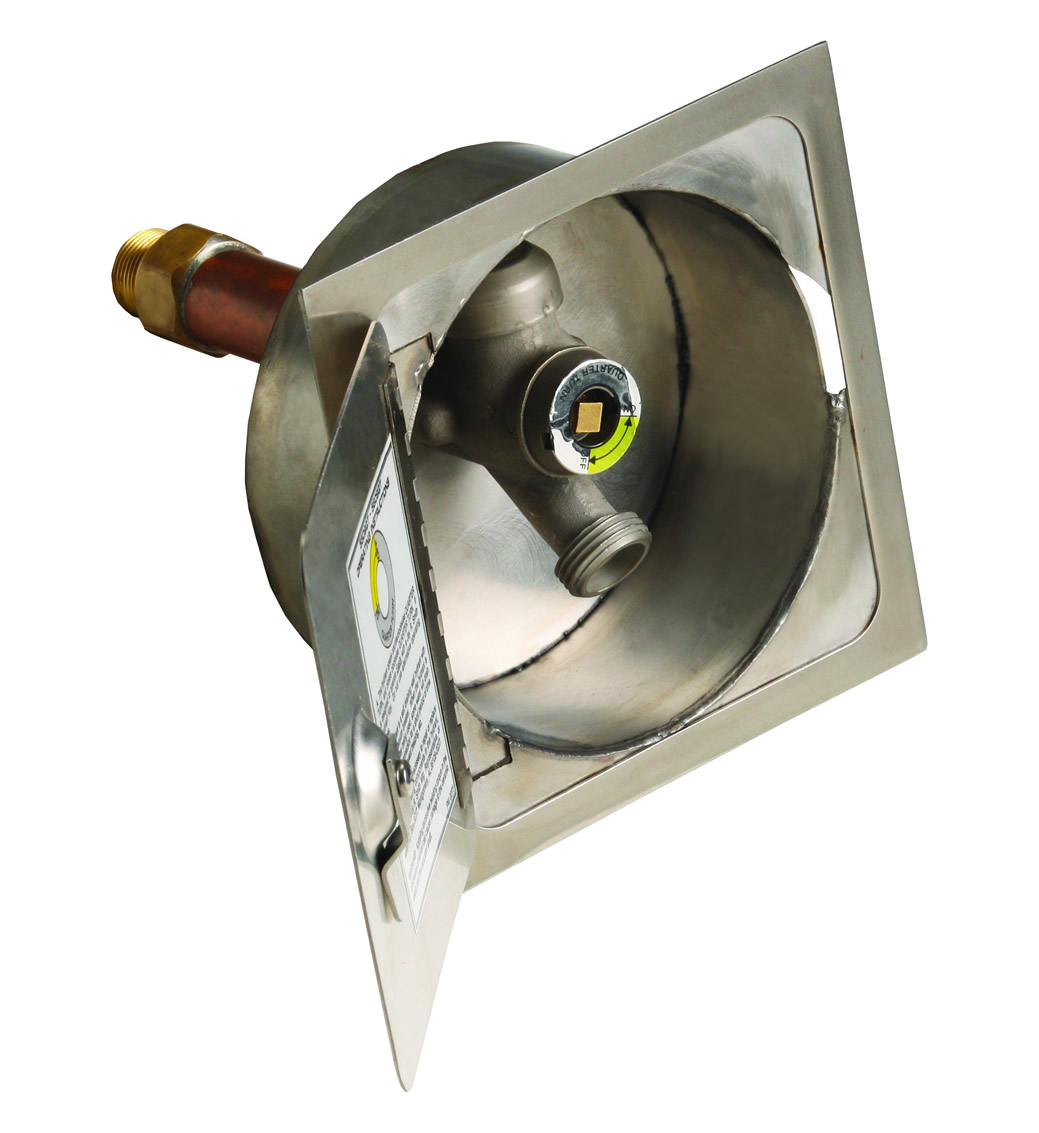

Specifically designed with tilt-up concrete buildings in mind, this hydrant box will cut your wall hydrant installation labor time by at least 75 percent. Once your walls are in place, you simply core drill a six-inch hole in the wall and slide the hydrant box right in. The stainless steel recessed hydrant box conceals the nozzle and operating mechanism of hydrant. The locking cover prevents unauthorized use.
Pro-Tip: Save the drilling until after the building has been erected and the plumbing is in place. As you know, even approved final drawings have a way of changing at the last minute.
Specifically designed with tilt-up concrete buildings in mind, this hydrant box will cut your wall hydrant installation labor time by at least 75 percent. Once your walls are in place, you simply core drill a six-inch hole in the wall and slide the hydrant box right in.
Labor Saving Features:- Fits 6” (150 mm) diameter cored drill hole.
- Flush installation to eliminate catch points.
- Frame, cover & housing are made of 16 gauge, type 304 stainless steel.
- Locking hinged cover opens 180º.
- Simple & easy to install in cored drill concrete wall.
- Regularly furnished with the 5609QT hydrant.
- Quarter-turn full-flow feature.
- 3/4” inlet and hose connection.
- Removable “T” handle key.
- Flush installation with backer plate.
- Bronze nickel plated hydrant.
- Mild climate, non-freeze hydrant with integral vacuum breaker and vandal resistant cap.
- Commercial and light commercial construction applications.
- Complies with ASSE 1019B, 1052
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | "Quarterhorse" Quarter-Turn Non-Freeze Wall Hydrant with Integral Vacuum Breaker and Stainless Steel Box - Box Type Hydrant with Concealed Hose Connection for Cored 6" Diameter Hole in Concrete Wall - accommodate Wall Thickness (As Needed) | 1 MB | |||
 | | "Quarterhorse" Quarter-Turn Non-Freeze Wall Hydrant with Integral Vacuum Breaker and Stainless Steel Box - Box Type Hydrant with Concealed Hose Connection for Cored 6" Diameter Hole in Concrete Wall - Accommodate Wall Thickness (As Needed) | 0 | 28 KB | ||
| | Brochure Professional Grade Wall and Ground Hydrant | 0 | 6 MB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 0 | 5 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Professional grade Hydrants for Commercial and light Commercial construction. | 0 | 2 MB | ||
 | | "Quarterhorse" Quarter-Turn Non-Freeze Wall Hydrant with Integral Vacuum Breaker and Stainless Steel Box - Box Type Hydrant with Concealed Hose Connection for Cored 6" Diameter Hole in Concrete Wall - Accommodate Wall Thickness (As Needed) | 0 | 115 KB | ||
| | Technical Data of Hydrants | 0 | 265 KB | ||
| | Parts Order Guide for Hydrants | 0 | 2 MB | ||
| | Order Guidelines for Hydrants | 0 | 118 KB | ||
| | Quote Worksheet Smith Drainage Systems | 0 | 39 KB | ||
 | | Video Stainless Steel Cored Hole Drilled Hydrant | 0 | 133 KB | ||
| | Overview of Smith Hydrant | 0 | 132 KB |
Specifications
| Variations | Adjustable Wall Clamp -WC, Cylinder Lock -CL, 1"(25) Hose Connection -HC1, 1"(25) Male NPT Inlet Connection -IC1, Cover Cast with Words "Water" -W, (2) 3/8” (10) Tappings -TAP |
| Product Type | Hydrant |
| Benefit | Labor Saving |
