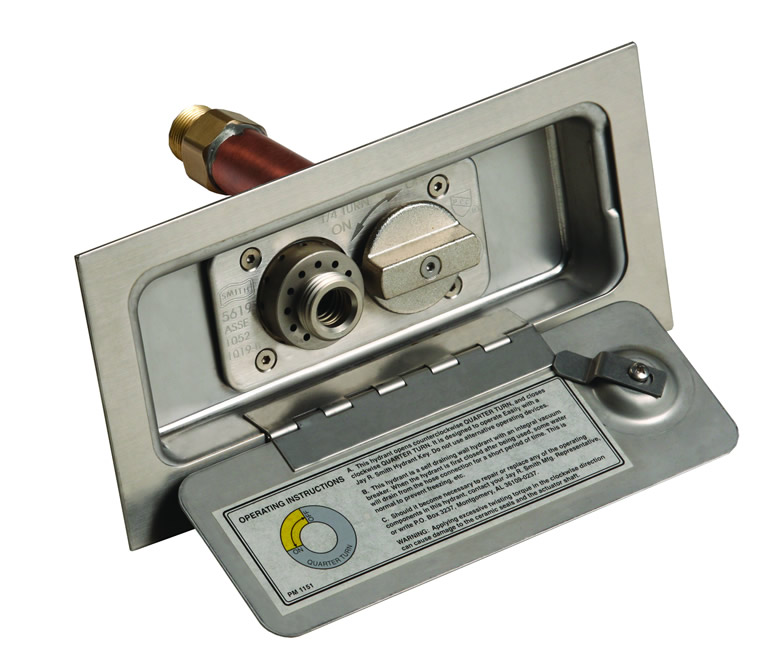

Guardian Dual Check® Hydrant and Stainless Steel Box with Concealed Hose Connection
Fits the Space of One Standard Brick, Aesthetic Design for Building Exterior, Ergonomic Design
The Guardian Hydrant allows water to be shut off at the hydrant, preventing building-wide service disruptions. It offers freeze protection for outdoors applications and full flow with a quarter turn of the key or handle. An integral vacuum breaker and dual check valves eliminate contamination of the water supply. The stainless steel recessed box conceals the nozzle and operating mechanism. The locking cover prevents unauthorized use. Designed to fits the space of one standard brick.
Pro-Tip: The Guardian Dual Check hydrant, with the box, is the go-to choice for contractors working on brick façade buildings. This ergonomic hydrant is designed to fit into the space of one standard brick for easy installation. That adds up to significant time savings because you eliminate extra cuts and mortar repair.
Labor Saving Features:- Quarter-turn full-flow feature.
- 3/4" inlet and hose connection.
- Removable "T" handle key or ergonomically designed wheel handle.
- Flush installation to eliminate catch points.
- 16 gauge steel frame cover & 20 gauge housing, type 304 stainless
- Bronze hydrant with stainless steel face.
- Drop down locking hinged cover opens 180º to allow access without damaging cover.
- Self draining non-freeze hydrant with dual check valve & integral vacuum breaker.
- Fits flush to building in one standard course brick.
- Commercial construction applications.
- Complies with ASME A112.21.3M
- Complies with ASSE 1019B, 1052
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Guardian Dual Check Quarter-Turn Non-Freeze Wall Hydrant with Automatic Draining, Integral Vacuum Breaker, Dual Check Valve and Stainless Steel Box - Box Type with Concealed Hose Connection | 1 MB | |||
 | | Guardian Dual Check Quarter-Turn Non-Freeze Wall Hydrant with Automatic Draining, Integral Vacuum Breaker, Dual Check Valve and Stainless Steel Box - Box Type with Concealed Hose Connection | 0 | 453 KB | ||
 | | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 0 | 262 KB | ||
| | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 0 | 209 KB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 0 | 5 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Professional grade Hydrants for Commercial and light Commercial construction. | 0 | 2 MB | ||
| | Specifications for Hydrants | 0 | 179 KB | ||
| | Brochure Professional Grade Wall and Ground Hydrant | 0 | 6 MB | ||
| | Case Study The Guardian Hydrant, High School Application | 0 | 45 KB | ||
 | | Guardian Dual Check Quarter-Turn Non-Freeze Wall Hydrant with Automatic Draining, Integral Vacuum Breaker, Dual Check Valve and Stainless Steel Box - Box Type with Concealed Hose Connection | 0 | 85 KB | ||
| | Technical Data of Hydrants | 0 | 265 KB | ||
| | Parts Order Guide for Hydrants | 0 | 2 MB | ||
| | Order Guidelines for Hydrants | 0 | 118 KB | ||
| | Quote Worksheet Smith Drainage Systems | 0 | 39 KB | ||
 | | Video The Guardian Dual Check® Hydrant Demonstration | 0 | 131 KB | ||
| | Overview of Smith Hydrant | 0 | 132 KB |
Specifications
| Variations | Adjustable Wall Clamp -WC, 1"(25) Hose Connection -HC1, 1"(25) Male NPT Inlet Connection -IC1, Mild Climate -SAP, Cylinder Lock -CL, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Polished Bronze -PB - Box Face, Nickel Bronze Top -NB, Rough Bronze Box Face -RB, Chrome Plated -CP - Box Face |
| Product Type | Hydrant |
| Patent | 6,752,167 |
| Benefit | Labor Saving |
