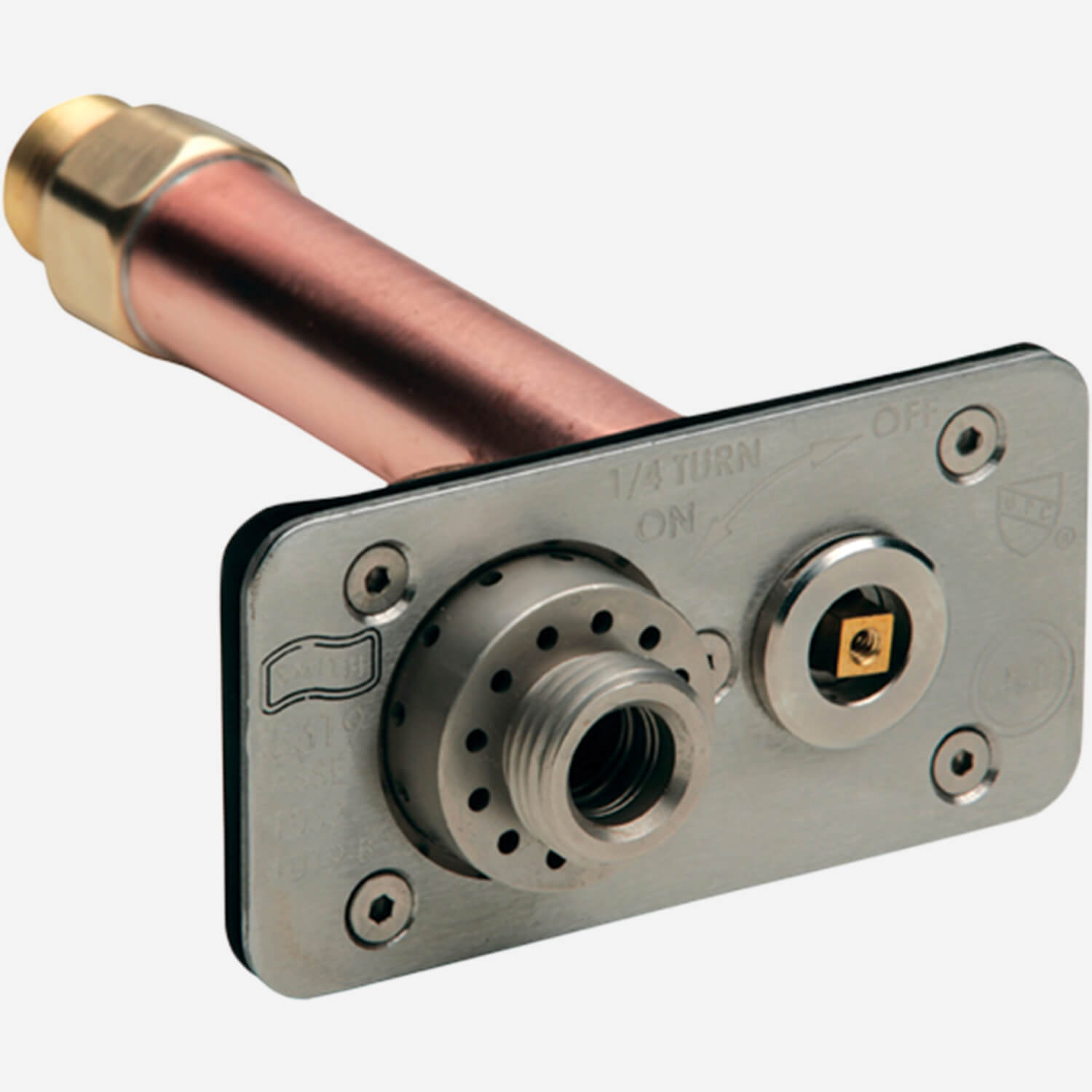

Guardian Dual Check® Quarter-Turn Non-Freeze Wall Hydrant
Fits the Space of One Standard Brick, Aesthetic Design for Building Exterior, Ergonomic Design
Our Bronze Guardian Dual Check hydrant has an exposed, corrosion-resistant, stainless steel face housing its 3/4" hose connection and tamper proof valve that takes an easy quarter turn of its removable key to open fully. Fitting flush with the brick façade, this labor saving device fits in the space of a standard brick cutting installation costs. Its self draining valve stem, available in 4" to 24" lengths for freeze proof installation in walls of almost any thickness, keeps drinking water from contamination with its integral vacuum breaker and dual check valve.
Pro-Tip: The Guardian Dual Check hydrant, with the box, is the go-to choice for contractors working on brick façade buildings. This ergonomic hydrant is designed to fit into the space of one standard brick for easy installation. That adds up to significant time savings because you eliminate extra cuts and mortar repair.
Labor Saving Features:- Quarter-turn full-flow feature.
- 3/4" inlet and hose connection.
- Removable "T" handle key or ergonomically designed wheel handle.
- Flush installation to eliminate catch points.
- Bronze hydrant with stainless steel face.
- Self draining non-freeze hydrant with dual check valve & integral vacuum breaker.
- Fits flush to building in one standard course brick.
- Commercial construction applications.
- Complies with ANSI A112.21.3M
- Comples with ASSE 1019B & 1052
- IAPMO Listed, File #2749
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Non-Freeze Quarter-Turn Guardian Plus Hydrant with Automatic Draining Integral Vacuum Breaker, Integral Service Shut-Off Valve, Dual Check Valve, and Exposed Hose Connection | 568 KB | |||
| | Non-Freeze Quarter-Turn Guardian Plus Hydrant with Automatic Draining Integral Vacuum Breaker, Integral Service Shut-Off Valve, Dual Check Valve, and Exposed Hose Connection | 1 MB | |||
 | | Non-Freeze Quarter-Turn Guardian Plus Hydrant with Automatic Draining Integral Vacuum Breaker, Integral Service Shut-Off Valve, Dual Check Valve, and Exposed Hose Connection | 0 | 372 KB | ||
 | | Non-Freeze Quarter-Turn Guardian Plus Hydrant with Automatic Draining Integral Vacuum Breaker, Integral Service Shut-Off Valve, Dual Check Valve, and Exposed Hose Connection | 0 | 292 KB | ||
 | | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 0 | 262 KB | ||
| | Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbs | 0 | 209 KB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 0 | 5 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Professional grade Hydrants for Commercial and light Commercial construction. | 0 | 2 MB | ||
| | Specifications for Hydrants | 0 | 179 KB | ||
| | Brochure Professional Grade Wall and Ground Hydrant | 0 | 6 MB | ||
| | Case Study The Guardian Hydrant, High School Application | 0 | 45 KB | ||
 | | Non-Freeze Quarter-Turn Guardian Plus Hydrant with Automatic Draining Integral Vacuum Breaker, Integral Service Shut-Off Valve, Dual Check Valve, and Exposed Hose Connection | 0 | 108 KB | ||
| | Technical Data of Hydrants | 0 | 265 KB | ||
| | Order Guidelines for Hydrants | 0 | 118 KB | ||
| | Quote Worksheet Smith Drainage Systems | 0 | 39 KB | ||
 | | Video The Guardian Dual Check® Hydrant Demonstration | 0 | 131 KB | ||
| | Overview of Smith Hydrant | 0 | 132 KB |
Specifications
| Variations | Adjustable Wall Clamp -WC, 1"(25) Hose Connection -HC1, 1"(25) Male NPT Inlet Connection -IC1, Mild Climate -SAP, Wheel Handle -WH, (2) 3/8” (10) Tappings -TAP |
| Product Type | Hydrant |
| Patent | 6,752,167 |
| Benefit | Labor Saving |
