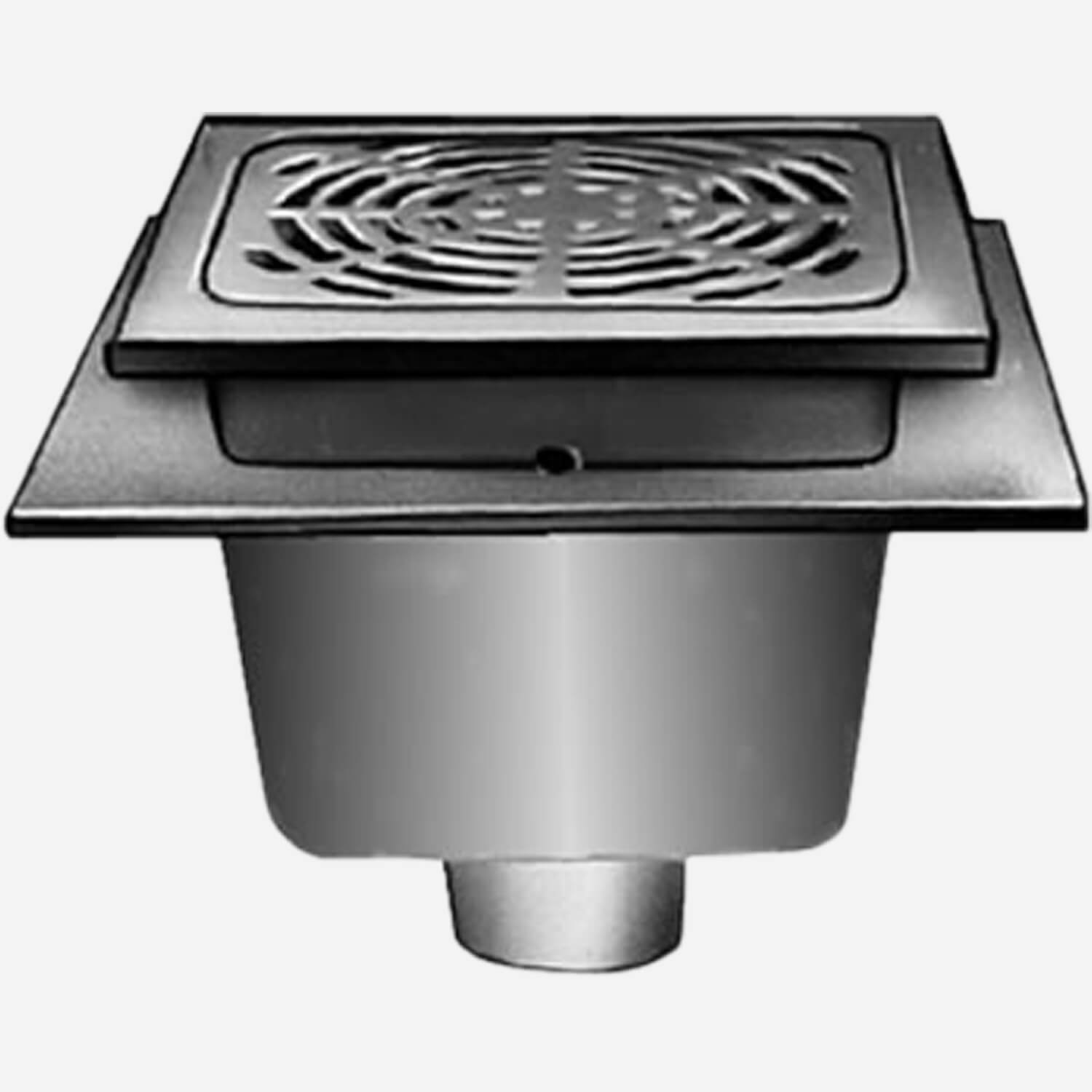

Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Medium, Deep and Extra Deep Receptor and ARC Square Non-Traffic Top

Model 3420, 3430, 3440

Engineered for long service life in food handling facilities, schools, and hospitals away from foot or other traffic, this 12” square Sani-Ceptor® cast iron floor drain is specially coated for acid resistance where the highest standard of sanitation is required. The medium 6” (150), deep 8” (205) and extra deep 10” (255). capacity drain bodies have an integral flange which can accept an optional flashing clamp permitting them to be installed in many types of construction. This drain is covered by a loose set grate and is available with an aluminum dome bottom strainer or white ABS sediment bucket to keep drain lines debris free.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	Answers	File Size
Submittals	Submittal 3420, 3430, 3440 Drain (pdf)	Sani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic Tops - 12" Square Tops - Medium, Deep, and Extra Deep Receptor [3420C, 3420Y, 3430C, 3430Y, 3440C, 3440Y, 3421C, 3421Y, 3431C, 3431Y, 3441C, 3441Y]		812 KB
Drawings	3420, 3430, 3440 Drain (dwg)	Sani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic Tops - 12" Square Tops - Medium, Deep, and Extra Deep Receptor [3420C, 3420Y, 3430C, 3430Y, 3440C, 3440Y, 3421C, 3421Y, 3431C, 3431Y, 3441C, 3441Y]	0	99 KB
Revit/BIM/ITM Files	3420 Drawing Revit Drawing	Sani-Ceptor® Acid-Resistant Coated Floor & Indirect Waste Drain Non-Traffic Tops - 12" Square Tops - Medium, Deep, and Extra Deep Receptor [3420C, 3420Y, 3430C, 3430Y, 3440C, 3440Y, 3421C, 3421Y, 3431C, 3431Y, 3441C, 3441Y]	0	224 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (doc)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	0	98 KB
Product MasterSpec	MasterSpec: 221319.13, Sanitary Drains (pdf)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	0	145 KB
Technical Data Sheets	Article: Considerations to be Addressed When Selecting Sanitary Floor Drains	Article: Considerations to be Addressed When Selecting Sanitary Floor Drains	0	271 KB
Specifications	Specifications for Sanitary Floor Drains	Specifications for Sanitary Floor Drains	0	328 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	0	7 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	0	718 KB
Manuals	Technical Data for Sanitary Floor Drains	Sani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data	0	599 KB
Ordering	Order Guidelines for Sanitary Floor Drains	Order Guidelines for Sanitary Floor Drains	0	116 KB
Parts Manuals	Parts Order Guide for Sanitary Floor Drains		0	1 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Aluminum Flat Bottom Strainer -FBS, Flashing Clamp -C, Less Flange - (Specify Fig. 3425, 3426, 3435, 3436, 3445, 3446), Polished Aluminum Dome Bottom Strainer -PDBS, L Speedi-Set® Service Weight, LXH Speedi-Set® Extra Heavy, (2) 3/8” (10) Tappings -TAP, Drain Installation Device -DID
Optional Materials	All Duco Cast Iron Receptor and Grate -CI, All Galvanized Receptor and Grate -G
Product Type	Sanitary Floor, Area and Indirect Waste Drain

Models

Sani-Ceptor® Acid-Resistance Coating Floor and Indirect Waste Drains
Non-Traffic Tops, 12" (305 mm) Square Top, Medium - Deep - Extra Deep Receptor Depths

With Dome Strainer
3420C | 6" (Medium) Depth Receptor, Caulk Bottom Outlet
3420Y | 6" Depth Receptor, No-Hub Bottom Outlet

3430C | 8" (Deep) Depth Receptor, Caulk Bottom Outlet
3430Y | 8" Depth Receptor, No-Hub Bottom Outlet

3440C | 10" (Extra Deep) Depth Receptor, Caulk Bottom Outlet
3440Y | 10" Depth Receptor, No-Hub Bottom Outlet

With Sediment Bucket
3421C | 6" (Medium) Depth Receptor, Caulk Bottom Outlet
3421Y | 6" Depth Receptor, No-Hub Bottom Outlet

3431C | 8" (Deep) Depth Receptor, Caulk Bottom Outlet
3431Y | 8" Depth Receptor, No-Hub Bottom Outlet

3441C | 10" (Extra Deep) Depth Receptor, Caulk Bottom Outlet
3441Y | 10" Depth Receptor, No-Hub Bottom Outlet

Optional Top Grates, Rim, Funnels and Covers
Suffix -10 | Less Acid-Resistance Coating Grate
Suffix -12 | With A.R.C. 1/2 Grate
Suffix -13 | With A.R.C. 3/4 Grate
Suffix -14 | With A.R.C. Grate with 2-1/2" (64) Diameter Center Hole
Suffix -15 | With Nickel Bronze Rim and Aluminum Recessed Grate
Suffix -21 | With A.R.C. Grate and 4" (100) Diameter A.R.C. Funnel
Suffix -22 | With A.R.C. Grate and 6" (150) Diameter A.R.C. Funnel
Suffix -25 | With A.R.C. Grate and 8-1/4" (210) x 3-1/4" (83) x 4-1/2" (115) High Oval A.R.C. Funnel
Suffix -26 | With A.R.C. Grate and 6" (150) x 2-1/2" (64) x 1" (25) High Oval A.R.C. Funnel
Suffix -41 | With A.R.C. Solid Cover
Suffix -42 | With A.R.C. 1/2 Solid Cover
Suffix -43 | With A.R.C. 3/4 Solid Cover
Suffix -44 | With A.R.C. Solid Cover with 2-1/2" (64) Diameter Center Hole

-DID Variation:
FormIt® Drain Installation Device for 12" and 12-1/2" Top Size Floor Sinks, see Submittal 3039-DID
