Model 3460 and 3470
Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Shallow and Deep Receptor and ARC Rectangular Non-Traffic Top
Engineered for long service life in food handling facilities, schools, and hospitals away from foot or other traffic, the shallow 4” by 8” top and deep 6” by 8” top Sani-Ceptor® cast iron floor drains are specially coated for acid resistance where the highest standard of sanitation is required. Designed to fit under counters and near walls, their drain bodies have an integral flange which accept an optional flashing clamp permitting installation in many construction types. Covered by loose set grates, these drains are available with aluminum dome strainers or sediment buckets to keep drain lines debris free.
Downloads
Specifications
| Variations | Acid Resistant Coated 1/2 Grate (Suffix -12), Aluminum Flat Bottom Strainer -FBS, Flashing Clamp -C, Less Flange - (Specify Fig. 3465, 3466, 3475, 3476), Polished Aluminum Dome Bottom Strainer -PDBS, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | All Duco Cast Iron Receptor and Grate -CI, All Galvanized Receptor and Grate -G |
| Product Type | Sanitary Floor, Area and Indirect Waste Drain |
Models

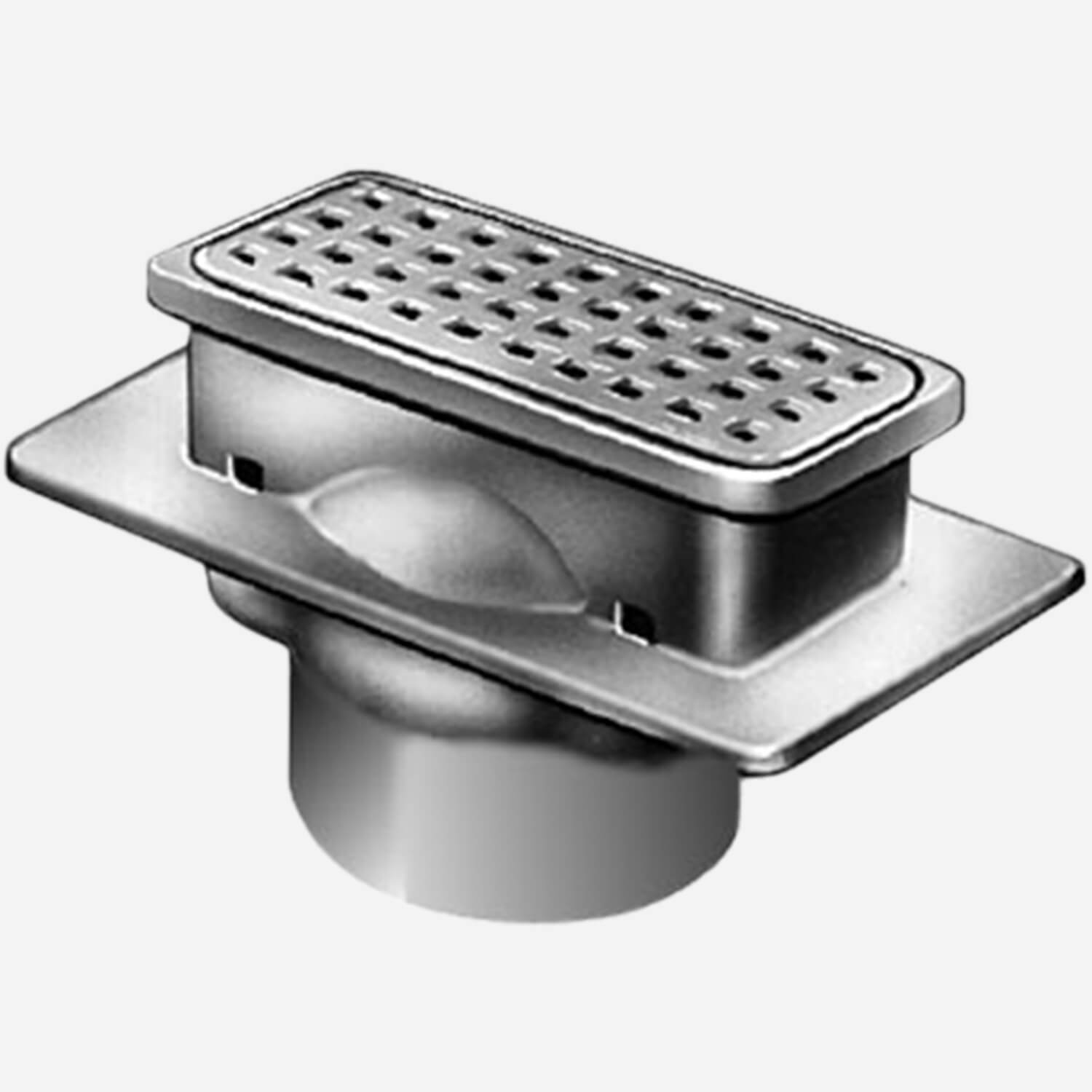

4" x 8" Rectangular Top Shallow Depth 3-1/4" Receptor
With Dome Bottom Strainer
3460C | Caulk Outlet
3460Y | No-Hub Outlet
With Sediment Bucket
3461C | Caulk Outlet
3461Y | No-Hub Outlet

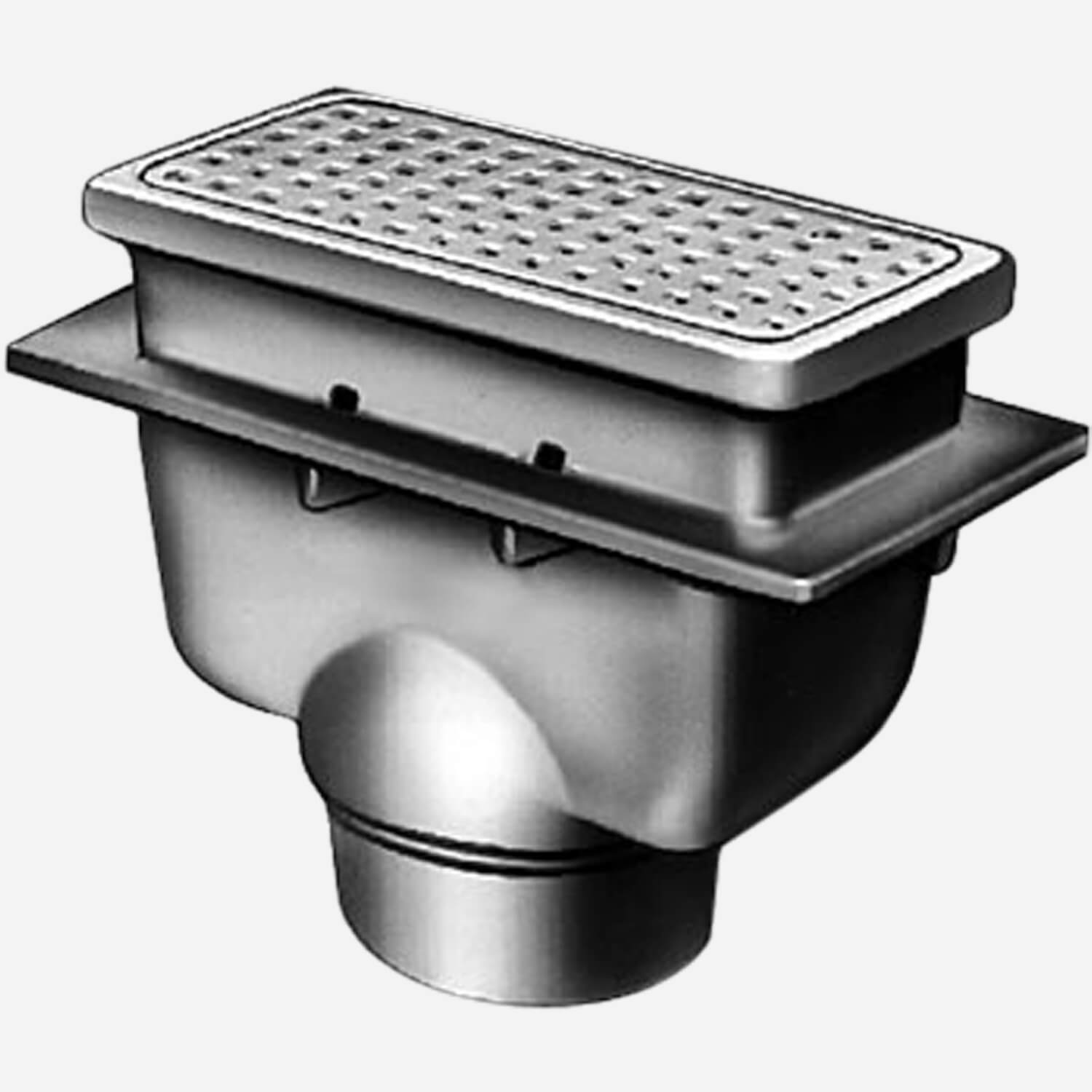

6" x 12" Rectangular Top Deep Depth 7-1/2 Receptor
With Dome Bottom Strainer
3470C | Caulk Outlet
3470Y | No-Hub Outlet
With Sediment Bucket
3471C | Caulk Outlet
3471Y | No-Hub Outlet
