Model 2694DA
Cloverleaf Style Trap Priming Distribution Unit

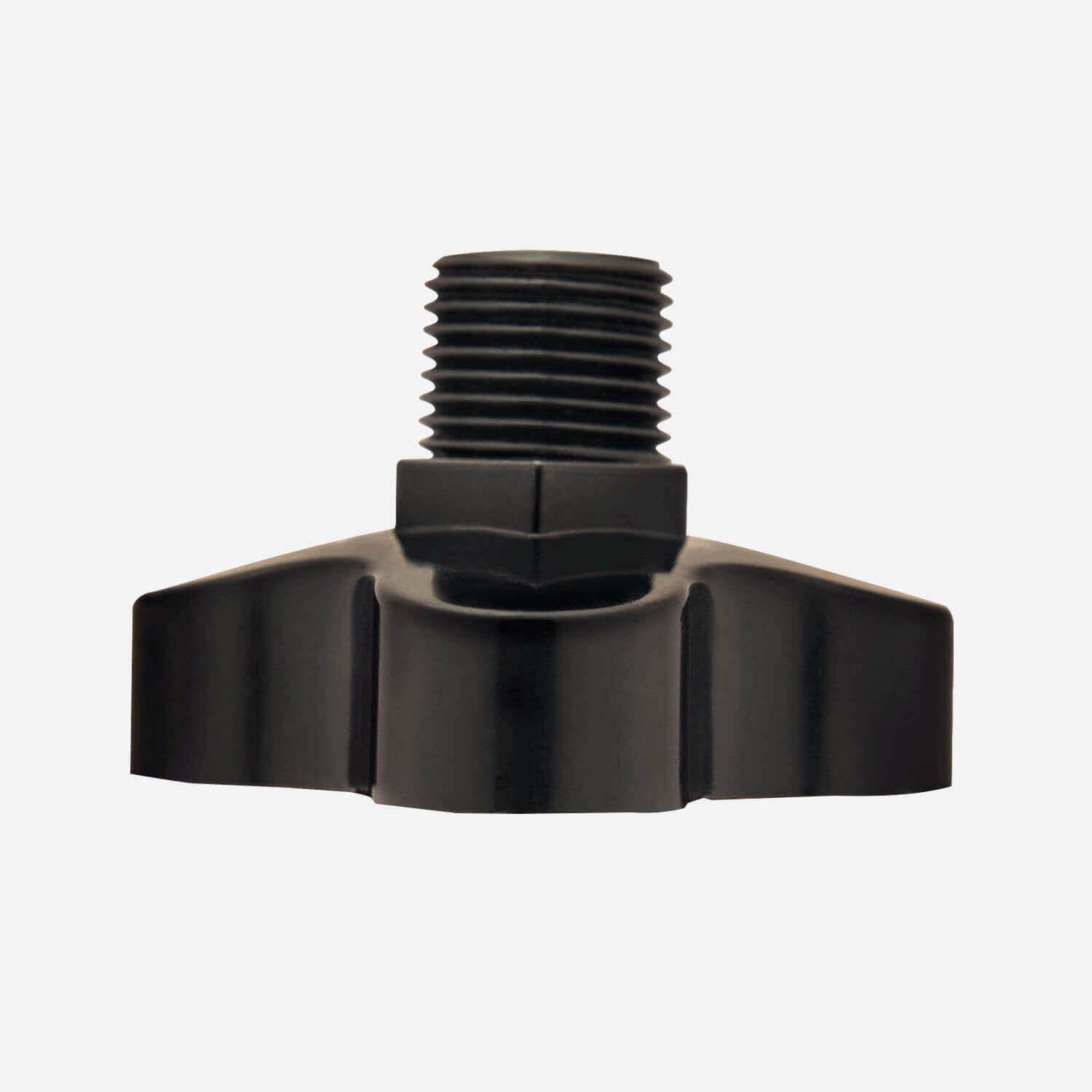

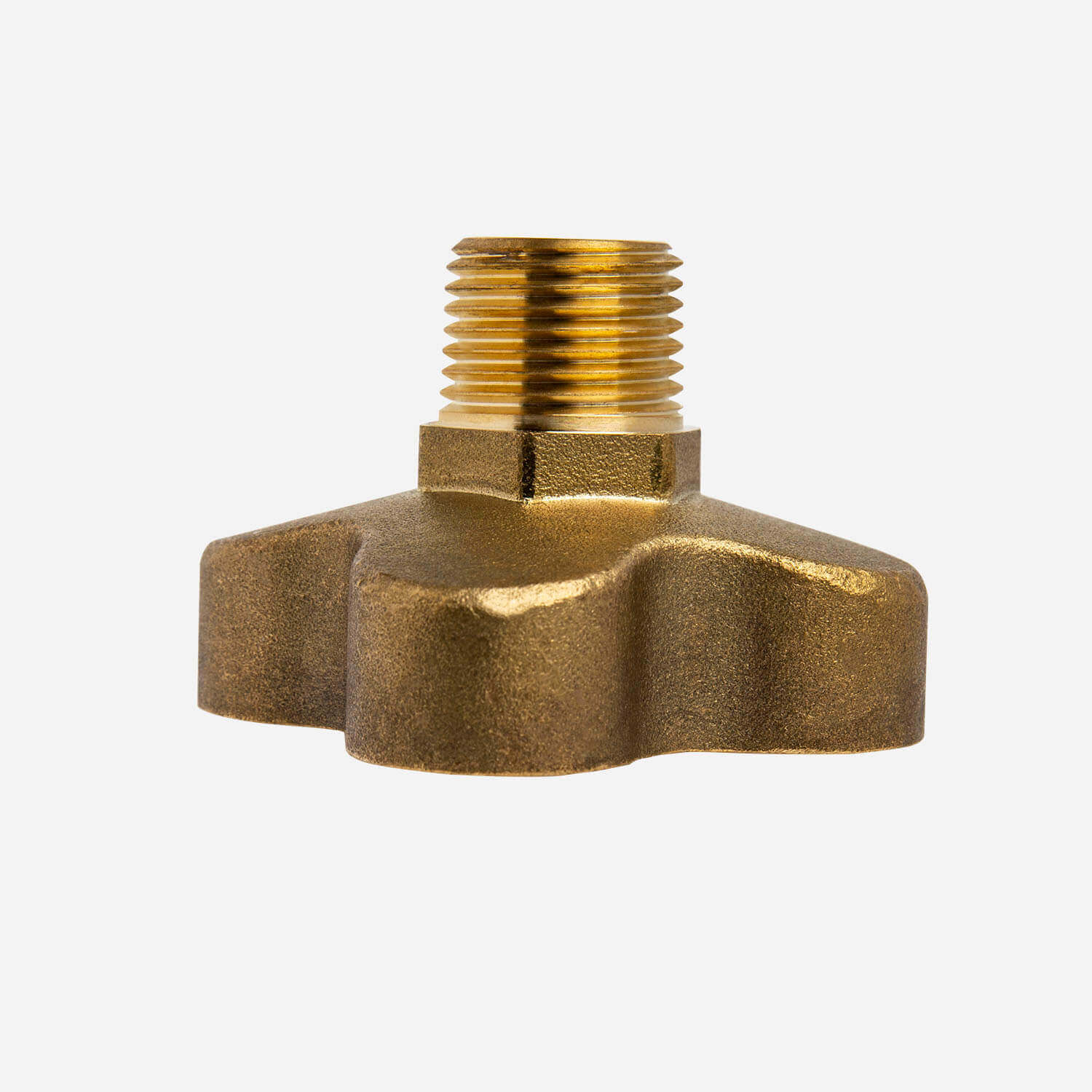

Distribution units connect to trap primers and divide the flow of water evenly in order to prime up to four traps with one trap primer. The Trap Priming Distribution Unit simply and effectively primes up to four floor drains with only one Trap Priming Valve. Unit must be installed level. This distribution is a Cloverleaf Style. It is available in lead-free cast brass or ABS.
The Cloverleaf Style Distribution Unit features:
- Cast lead-free brass or ABS
- Connects to 2 to 4 trapped drains
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Cloverleaf Style Trap Priming Distribution Unit | 595 KB | |||
 | | Cloverleaf Style Trap Priming Distribution Unit | 0 | 348 KB | ||
| | Brochure - Trap Primers, Distribution Units and other Accessories | 0 | 5 MB | ||
| | Flyer - Trap Primer, Distribution Units and other Accessories | 0 | 2 MB | ||
 | | Fluid Controls with Chris Rylant | 0 | 132 KB | ||
| | Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering | 0 | 132 KB | ||
| | Fluid Controls Distribution Units Overview with Chris Levins | 0 | 133 KB | ||
| | Fluid Controls - Trap Primers & Distribution Units with Chris Levins | 0 | 133 KB |
Specifications
| Compliance/Certifications | cUPC, Lead Plumbing Law certified by IAPMO R & T, IAPMO IGC 178 |
Details
| Description | Lead-Free Cast Brass Body Figure No. | ABS Body Figure No. |
|---|---|---|

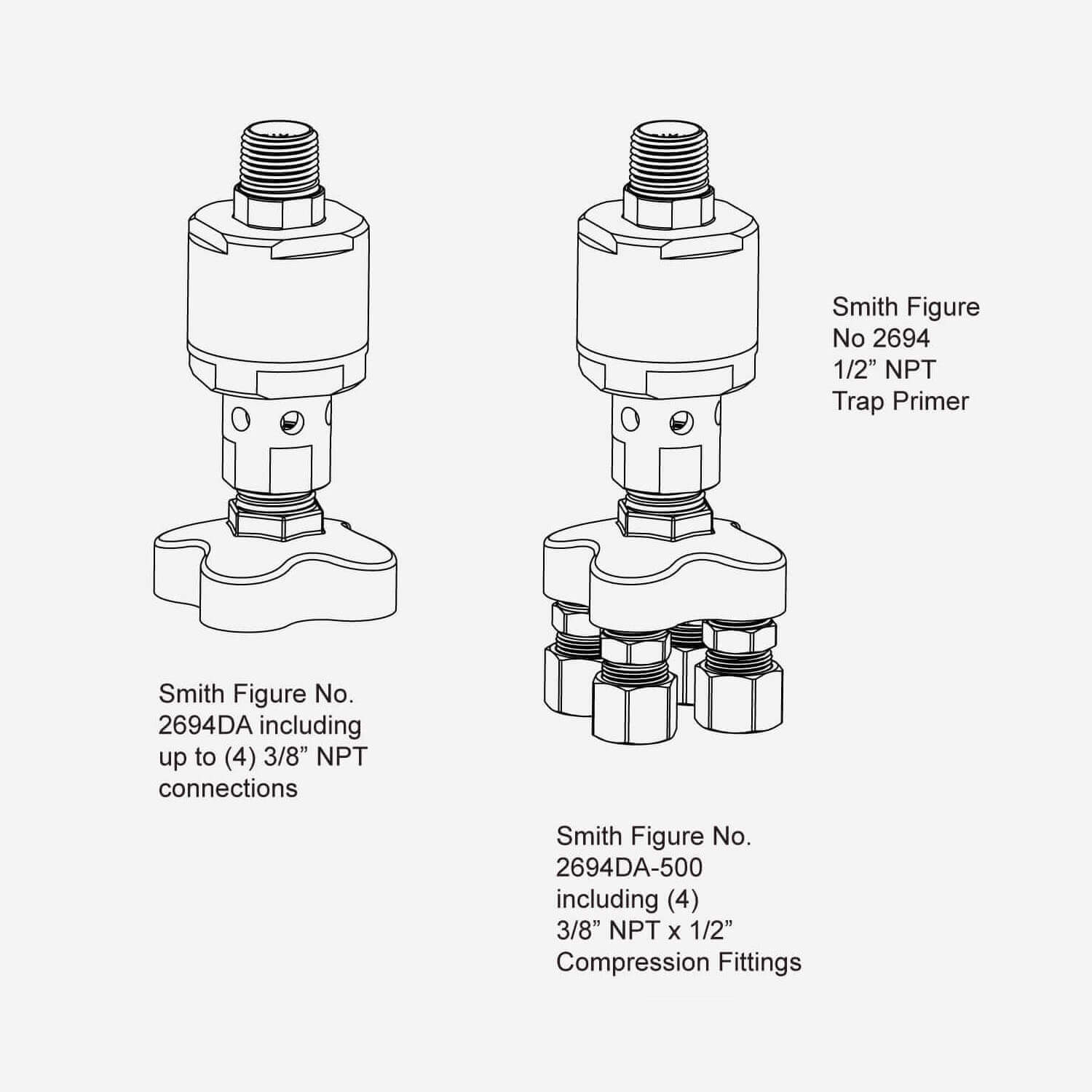

| (4) 3/8" Female Connections with (2) Plugs | 2694DA | 2694DA-ABS |

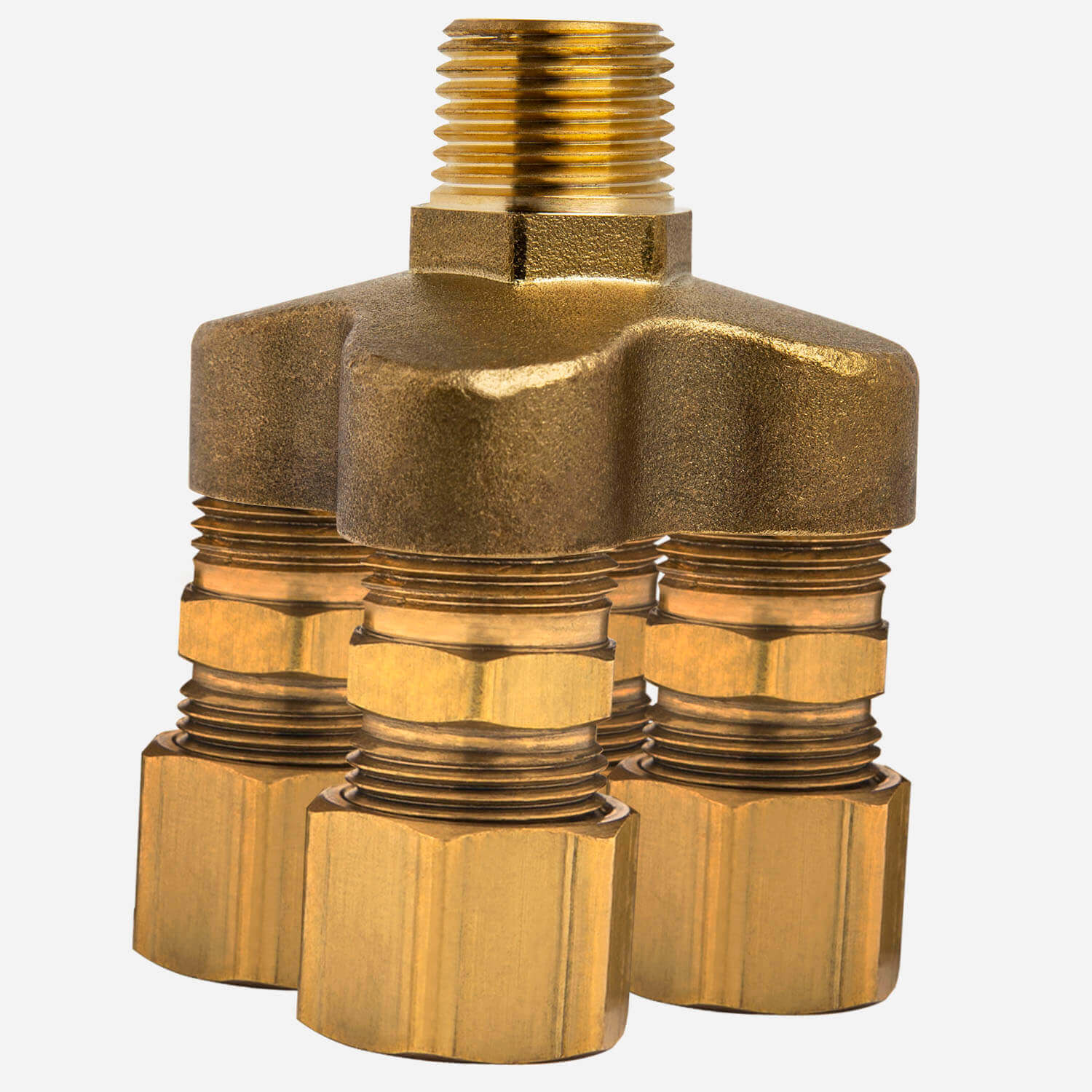

| (4) 3/8" NPT x 1/2"(13) O.D. Compression Fitting | 2694DA-500 | 2694DA-ABS-500 |
| (4) 3/8" NPT x 5/8"(16) O.D. Compression Fitting | 2694DA-625 | 2694DA-ABS-625 |
