Model 276 Series

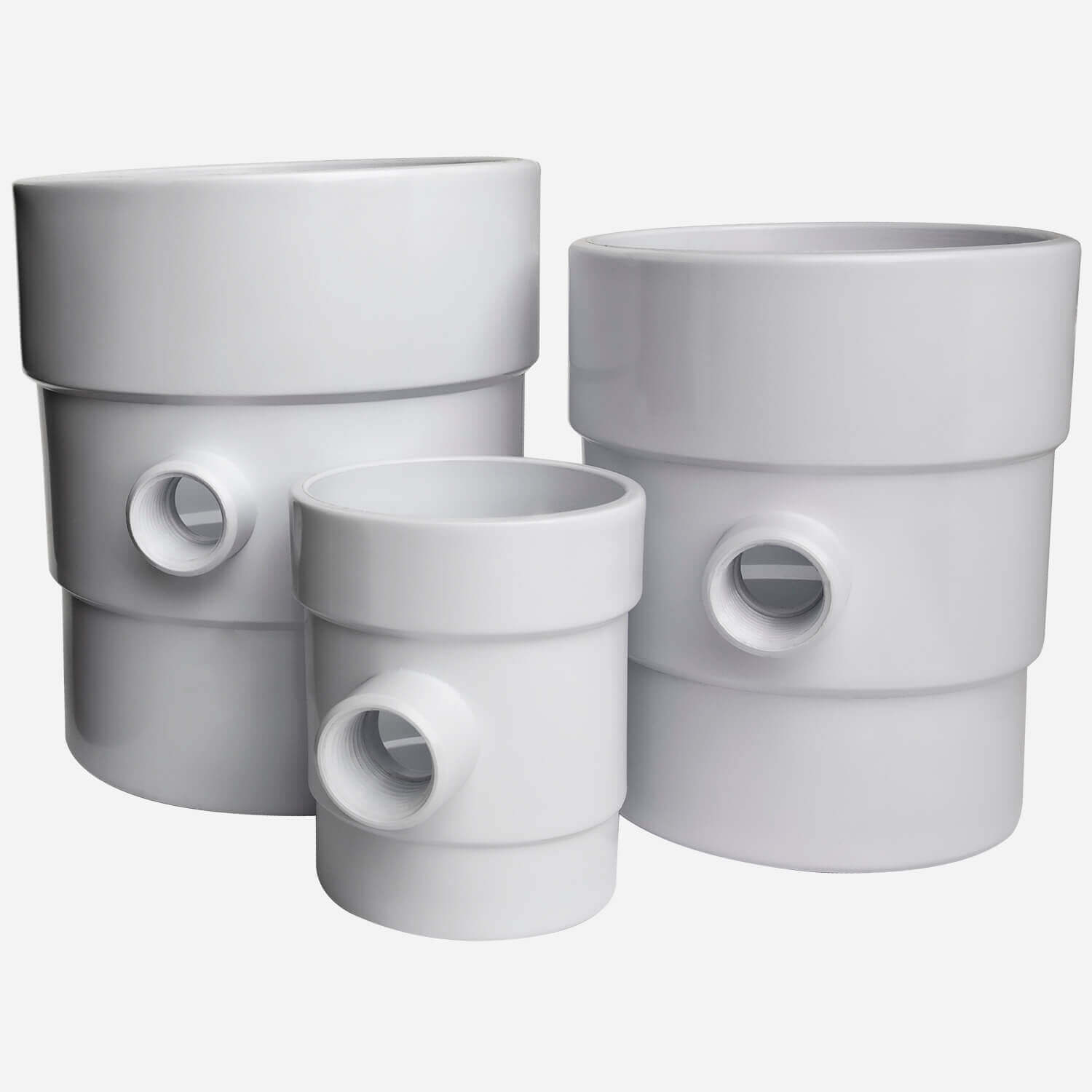

Trap Primer Adapter
Trap primer adapters are connected to the floor drain outlet prior to the P-trap.
Trap primer adapter features:
- Provides a trap primer connection when the floor drain and P-trap are not tapped
- Allows flexibility, can be rotated in any direction prior to bonding, offering a quick and cost-saving installation
- Available in PVC or ABS

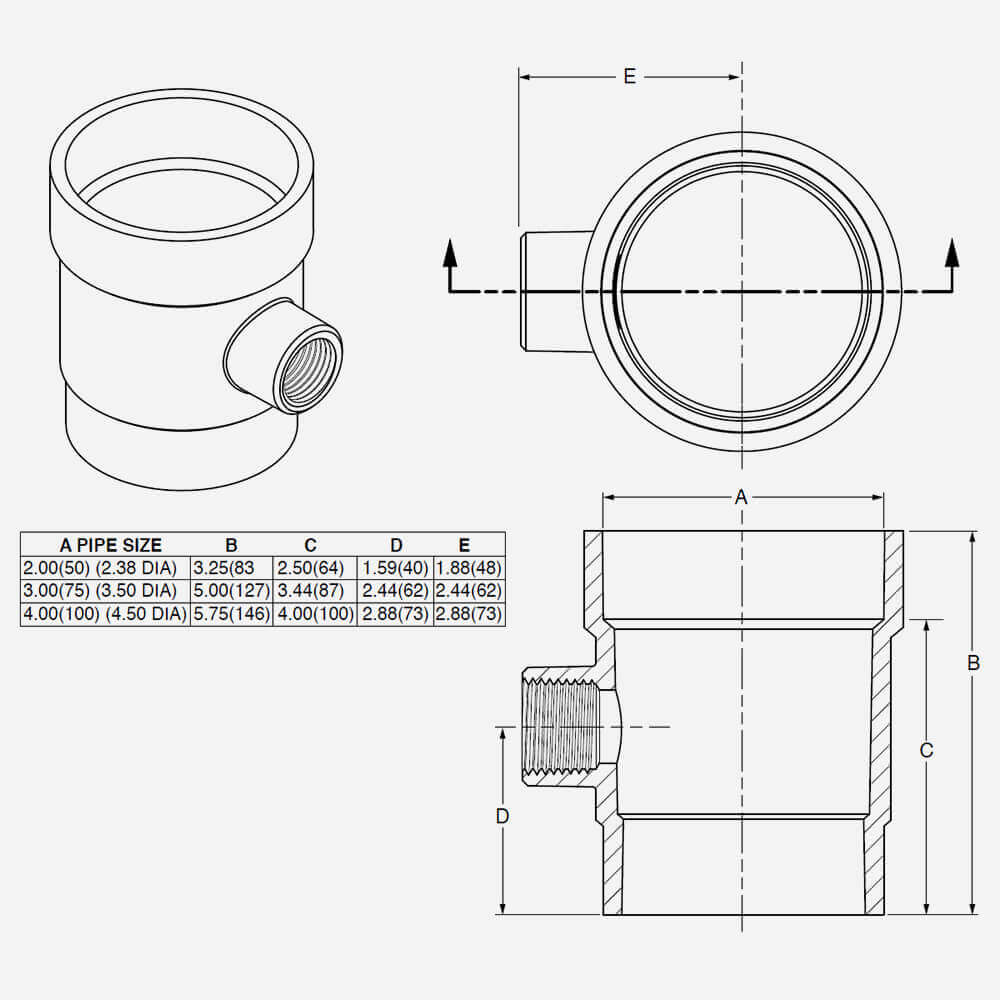

- Available in 2", 3" or 4" pipe sizes

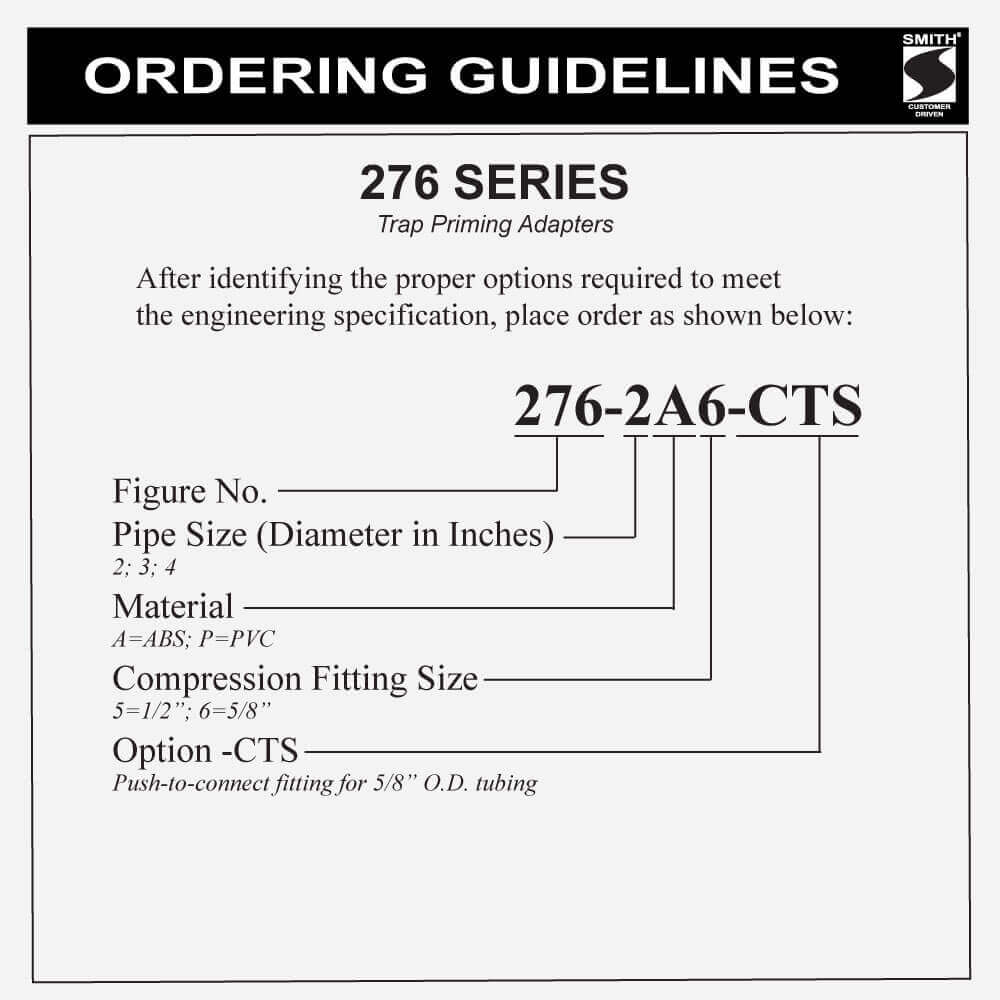

- Availalbe connection sizes/type
- 1/2 inch NPT female
- 1/2 inch OD copper compression
- 5/8 inch OD copper compression
- 5/8 inch OD -CTS push-in fitting
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Trap Primer Adapter | 293 KB | |||
 | | Trap Primer Adapter | 0 | 95 KB | ||
| | Brochure - Trap Primers, Distribution Units and other Accessories | 0 | 5 MB | ||
| | Flyer - Trap Primer, Distribution Units and other Accessories | 0 | 2 MB | ||
 | | Fluid Controls with Chris Rylant | 0 | 132 KB | ||
| | Fluid Controls Product Line Overview with Jerry McDanal, VP of Engineering | 0 | 132 KB | ||
| | Fluid Controls Trap Primers Overview with Chris Levins | 0 | 133 KB | ||
| | Fluid Controls - Trap Primers & Distribution Units with Chris Levins | 0 | 133 KB |
Specifications
| Variations | (2) 3/8” (10) Tappings -TAP |
Details
ABS or PVC Trap Primer Adapter Fitting as seletected providing a 360º adjustment prior to permanent installation, a 1/2" or 5/8" brass compression fitting as selected is provided with each adapter for the connection to a trap priming line from a trap primer valve.
