Model 9930

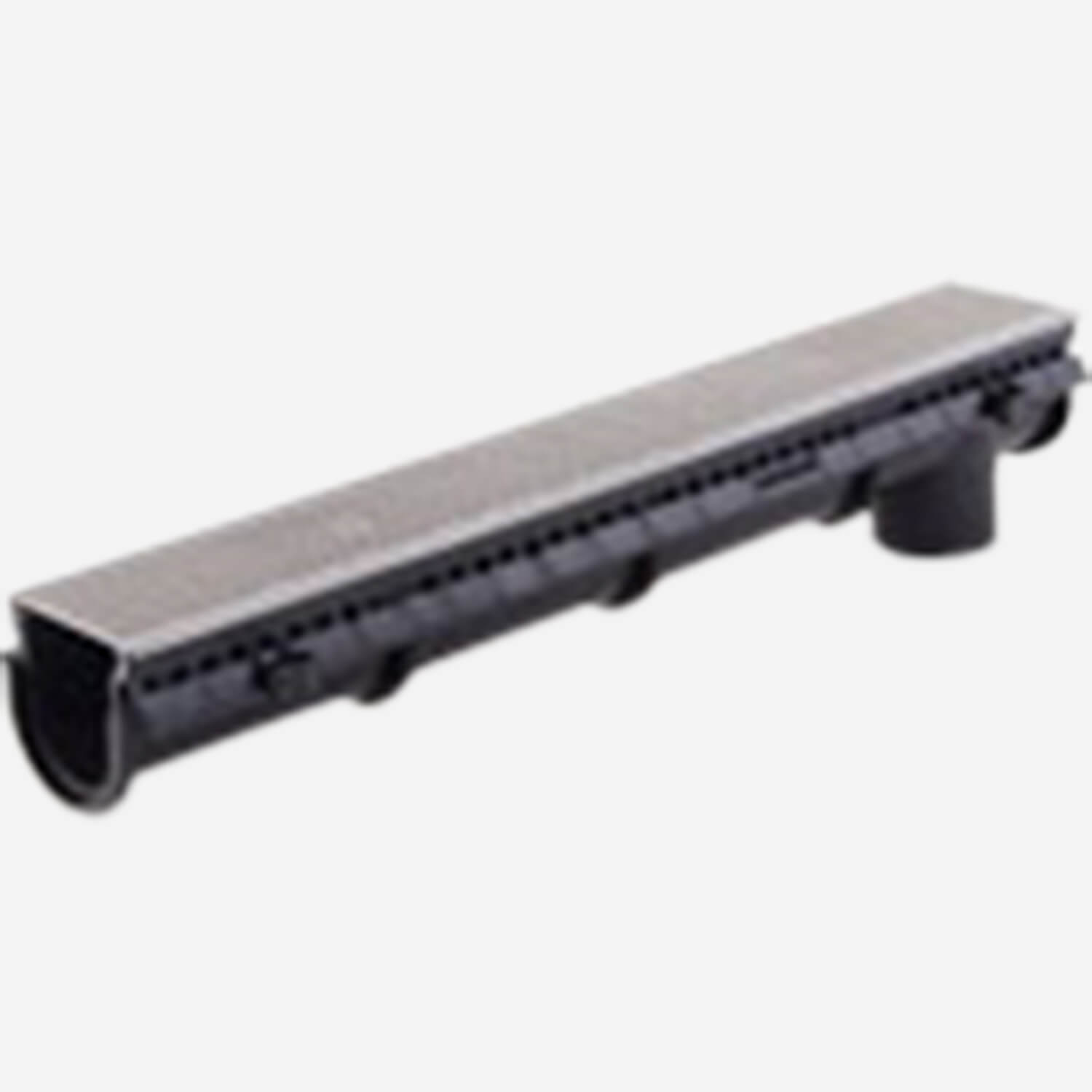

6" Wide Polypropylene Trench Drain System - Enviro-Flo® II
The Enviro-Flo® II is a contractor-friendly, heavy duty trench drain system that is lightweight and easy to handle. It is available with two mounting options and the ability to make more adjustments in the field, the Enviro-Flo II offers flexibility and ease of installation saving time and labor.
This polypropylene trench drain is ideal for use in ballparks, stadiums, chemical processing plants, food and beverage, breweries, swimming pools, driveways, kitchens, and greenhouses.
This polypropylene trench drain is ideal for use in ballparks, stadiums, chemical processing plants, food and beverage, breweries, swimming pools, driveways, kitchens, and greenhouses.
9930 Enviro-Flo® II Features & Benefits
- Lightweight, interlocking polypropylene channels are ideal for heavy duty applications
- Excellent Chemical Resistance
- Superior UV resistance
- Bottom outlet on every section
- Temperature rating up to 180° F
- Load Class A - C
- For catch basin, specify Fig. 9935 Inline Catch Basin
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Install Guide (Technical) for Enviro-Flo® II Trench Drain | 3 MB | |||
| | 6" Wide Polypropylene Trench Drain System - Enviro-Flo® II | 2 MB | |||
 | | Install Guide for 9935 Load Class A-C Installed in Concrete | 0 | 3 MB | ||
| | 6" Wide Polypropylene Trench Drain System with Steel Frame System for Extra Heavy Applications - Enviro-Flo II ® - Detail Double Male Connection Fabrication | 0 | 296 KB | ||
| | Submittal 9935 Drainage System | 0 | 556 KB | ||
| | Assembly Guide for Shallow End on Trench Drain | 0 | 381 KB | ||
| | Install Guide for 9930 Load Class A-C Installed in Asphalt | 0 | 225 KB | ||
| | Install Guide for 9930 Load Class A-C Installed in Concrete | 0 | 218 KB | ||
| | Detail for attaching a shallow Enviro-Flo channel to either a 9935 or 9936 series catch basin | 0 | 353 KB | ||
 | | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 0 | 98 KB | ||
| | Floor drains, Floor sinks, Trench drains, Channel drainage systems. | 0 | 145 KB | ||
| | Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf) | 0 | 497 KB | ||
| | The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications. | 0 | 155 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Trench Drain Complete Source Flyer (pdf) | 0 | 547 KB | ||
| | Your complete trench drain source. Solutions and materials | 0 | 12 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 0 | 5 MB | ||
 | | 0 | 15 KB | |||
| | Quote Worksheet Smith Drainage Systems | 0 | 39 KB | ||
 | | Presentation: Enviro-Flo II Trench Drain System | 0 | 36 MB | ||
| | The Contractor Friendly Enviro-Flo® II Trench Drain Series Ad (pdf) | 0 | 3 MB | ||
| | Trench Drain Options Ad (pdf) | 0 | 2 MB | ||
 | | Watch as Mario Stan explains the value of the custom fabricated Enviro Flo® II Trench Drain System – Series 9930 9931. | 0 | 132 KB | ||
| | Mario Stan walks through the installation of the Enviro Flo® II Trench Drain System – Series 9930 9931. | 0 | 132 KB | ||
| | Enviro Flo® II Trench Drain System – Series 9930 9931 Overview & Features | 0 | 133 KB | ||
| | Learn why the new Enviro-Flo II from Jay R. Smith Mfg. Co. is your best bet for an environmentally friendly trench drain solution. | 0 | 134 KB |
Specifications
| Variations | Closing End Cap Shallow -ES, Closing End Cap Deep -ED, Horizontal Outlet 4" -H4, Catch Basin Only 9935-20, Catch Basin Plastic Bucket -BP, Direction Change Coupling -MC, Stainless Steel Overlay Rails -SSR, 9849 Rante Arrow, 4" NO-HUB Bottom Outlet Adaptor -BO, (2) 3/8” (10) Tappings -TAP |
| Product Type | Trench Drains |
Models
COMPONENTS
9930-001, 9930-N01, 9930-002, 9930-N02, 9930-003, 9930-N03, 9930-004, 9930-N04, 9930-005, 9930-N05, 9930-006, 9930-N06, 9930-007, 9930-N07, 9930-008, 9930-N08, 9930-009, 9930-N09, 9930-010, 9930-N10, 9930-011, 9930-N11, 9930-012, 9930-N12, 9930-013, 9930-N13, 9930-014, 9930-N14, 9930-015, 9930-N15, 9930-016, 9930-N16, 9930-017, 9930-N17, 9930-018, 9930-N18, 9930-019, 9930-N19, 9930-020, 9930-N20
VARIATIONS
9930-ES | Closing End Cap Shallow
9930-ED | Closing End Cap Deep
9930-H4 | Horizontal Outlet 4-Inches
9935-CB | Catch Basin Only
9935-BP | Catch Basin Plastic Bucket
9930-MC | Direction Change Coupling
9930-SSR-.5 | Half Meter Stainless Steel Overlay Rails
9930-SSR-1M | One Meter Stainless Steel Overlay Rails
9849-NS | Rante Arrow
9930-BO-004 | 4-Inch NO-HUB Bottom Outlet Adapter
GRATES
Light Duty, Load Class A
9870-410-GP1G, 9870-420-G1G, 9870-450-SS1G, 9870-451-SSPA1G, 9870-447-SSADA1G, 9870-491-HPP.5G, 9870-494-PADAB, 9870-494-PADAG
Heavy Duty, Load Class C
9870-411-GPHD1G, 9870-425-GHD1G, 9870-430-SSM1G, 9870-455-SSHD1G, 9870-465-SSP1G, 9870-479-MD.5G, 9870-480-IW .5G, 9870-481-ID.5G, 9870-492-RC.5G, 9870-462-MC.5G, 9870-478-MADA.5G
