Model 9654
General Purpose Hub Drain

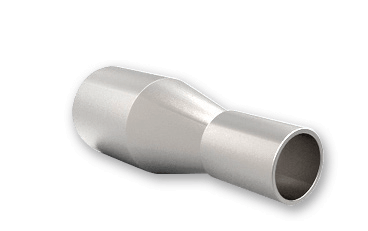

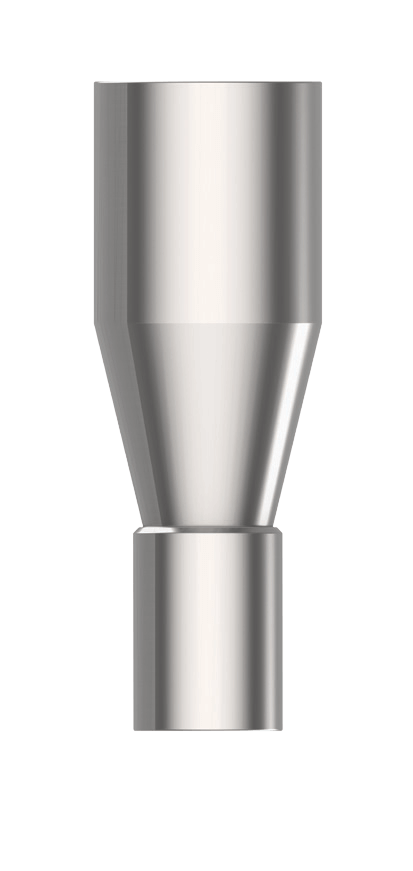

This Type 304 stainless steel Hub Drain is engineered to facilitate the removal of liquid waste indirectly from a drain outlet. This unit serves a vital role in facilities where corrosive liquids frequently enter into the drainage system such as in food and chemical processing plants. Designed with a Schedule 10 nominal wall thickness, this hub drain is available with a 3" outlet (4" dia. top size), 4" outlet (6" dia. top size) and 6" outlet (8" dia. top size).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | General Purpose Stainless Steel Hub Drain [9654BW03-S10 | for 3" pipe size, 9654BW04-S10 | for 4" pipe size, 9654BW06-S10 | for 5" pipe size] | 280 KB | |||
 | | General Purpose Stainless Steel Hub Drain [9654BW03-S10 | for 3" pipe size, 9654BW04-S10 | for 4" pipe size, 9654BW06-S10 | for 5" pipe size] | 0 | 328 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Optional Materials | Type 316 Stainless Steel -316 |
| Compliance/Certifications | USDA Accepted |
Models
9654BW03-S10 | for 3" pipe size
9654BW04-S10 | for 4" pipe size
9654BW06-S10 | for 5" pipe size
