Model 9678-100

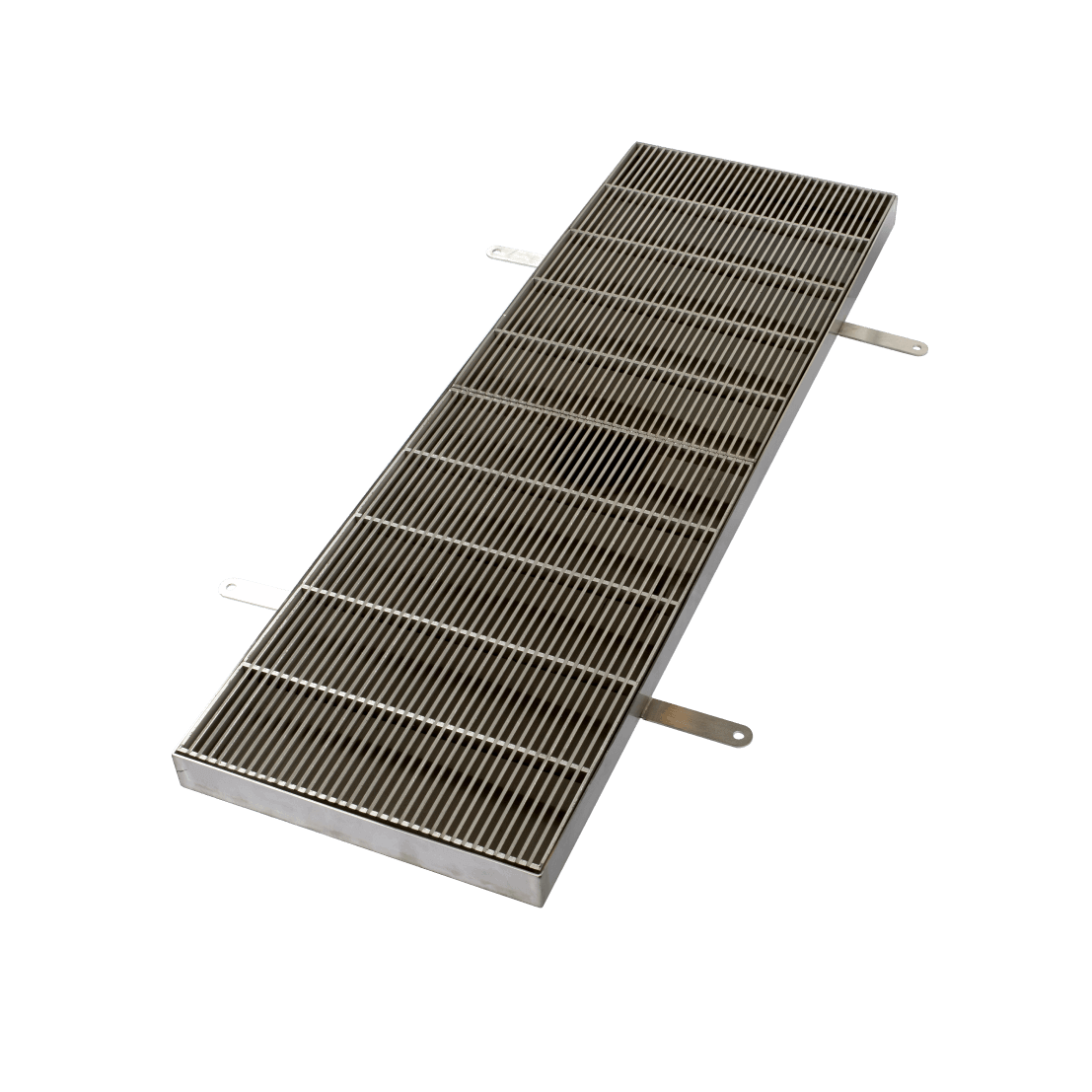

'Threshold' Stainless Steel Linear Drain - 100 GPM
This stainless steel, linear drain effectively prevents water from cascading floor to floor during a fire emergency. The ADA compliant, heel proof drain and grate is intended for use in front of elevators, in elevator lobbies, stairways, and similar applications to receive and drain water with flow rates up to 100 GPM. At 2" deep, it does not disturb post-tension slabs. This drain complies with California building code 403.6.1, 403.6.2, 3007.4, 3008.4, and San Francisco Fire Code, Section 511.1.4.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Threshold Stainless Steel Drain - 100 GPM | 733 KB | |||
| | Article: Jay R. Smith Crafts Speedy Solution for J.W. McClenahan’s Drainage Dilemma (pdf) | 0 | 497 KB | ||
| | The chart will assist in selecting what base material to specify for trench drain systems. The combination of temperature, chemicals and chemical concentration determines resistance of channel material to the applications. | 0 | 155 KB | ||
| | Threshold Drain Flow Capacity (pdf) | 0 | 5 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Stainless Steel Threshold Drain Heel Proof Grate Flyer (pdf) | 0 | 527 KB | ||
| | Your complete trench drain source. Solutions and materials | 0 | 12 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Stainless Steel Threshold Drain Code Flyer (pdf) | 0 | 520 KB |
Specifications
| Variations | Less Anchor Straps - LAS, Bronze Painted Finish on Grates -BPFG, Inside Black Finish -BPF, 6" No Hub Vertical Outlet, Black Powder Coated Interior, DX Flange -DX, Additional Anchor Straps, Specify Outlet Position, Anchor Straps 12 Req’d -AS, 1/2" NPT Trap Primer Connection -TP, (2) 3/8” (10) Tappings -TAP |
