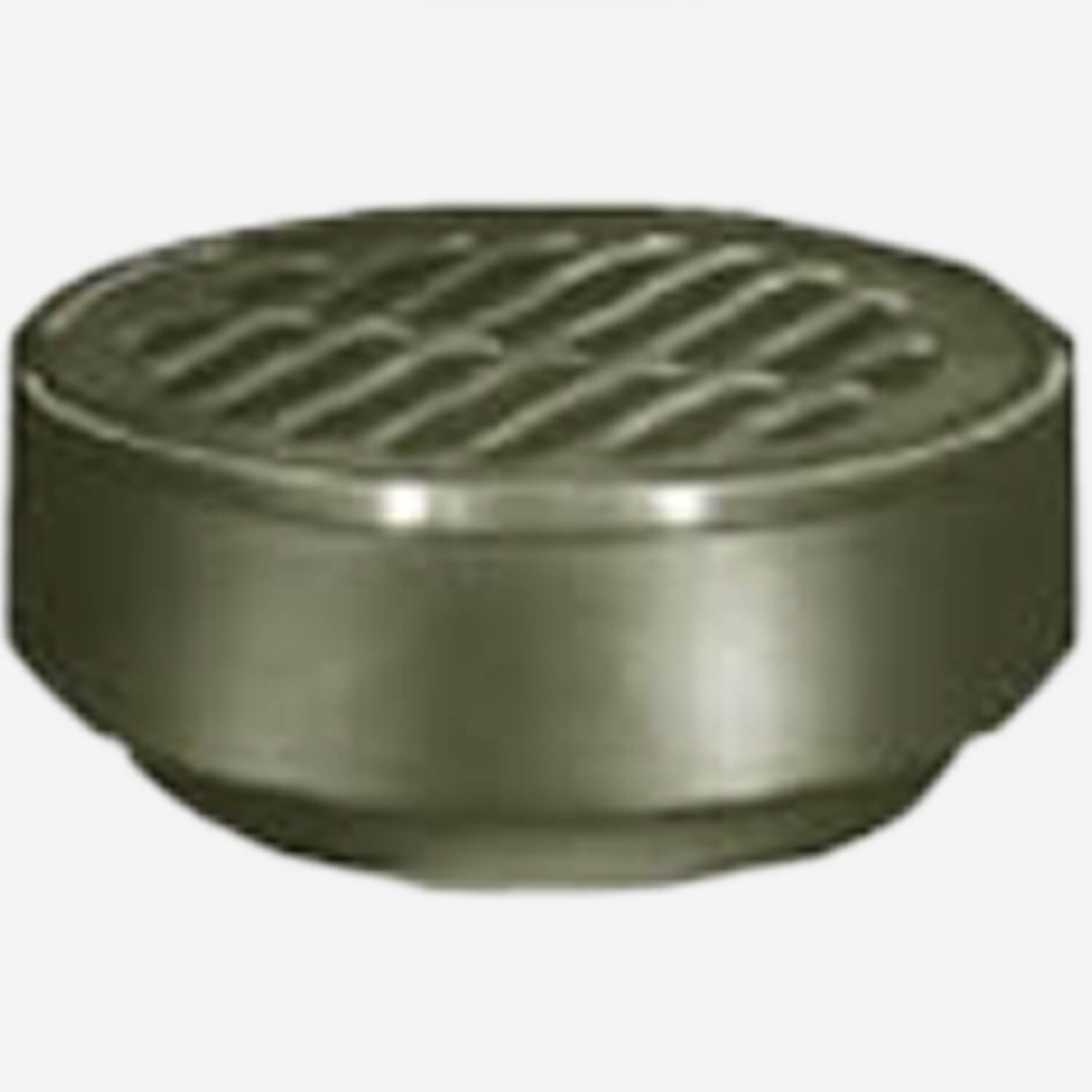

Model 9713 & 9718
Shallow Body Floor Drain with Medium Duty Top
The CF8 rough finish stainless steel (equivalent to type 304) bodies and loose set non-tilt grates in our 9713 and 9718 Medium Duty Top Floor Drains resist corrosive liquids found in chemical laboratories, dairies, breweries, and atomic energy and bottling plants while helping to maintain high levels of sanitation. CF8 Stainless Steel also accommodates machining for threaded outlets, tops, flashing clamps, plugs, and strainers that are offered as options with these drains. (Note: These drains are engineered for use in areas where wastewater is free of sediment or debris and where a shallow body is required.)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Submittal 9713 Drain | 460 KB | |||
 | | 9713 Drain (dwg) | 0 | 50 KB | ||
| | Stainless Steel Drainage Products | 0 | 3 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Order Guidelines for Specialties | 0 | 268 KB |
Specifications
| Variations | 4"(100) Extension -E04, 4(100) or 6"(150) Dia. Funnel (Specify Fig. 9703), 8 3/4(220) x 3 3/4"(95) Funnel (Specify Fig. 9704), Closure Plug and Gasket Available in Stainless Steel -XPSS or Plastic -XPP, Closure Plug with 3/4"(19) Test Plug -TP (Specify Material), Flat Bottom Strainer -FBS, Satin Finish Top - SF, Sediment Bucket -B, Vandal Proof Grate - U, Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP |
| Optional Materials | A-27 Carbon Steel Body - A27B, Cast Iron Grate -CIG, CF8M (Equivalent to Type 316) Stainless Steel - Body -316B, Nickel Bronze Grate - NB, Polished Bronze Grate - PB |
| Product Type | Drain |
