Vertical Fittings with Side Inlet Extra Heavy Duty 750 Lbs. for Siphon Jet Water Closets
Contractor labor saving, shallow rough-in, adjustable fixture support for bariatric siphon jet water closets featuring vertical fittings with side inlet. When installed correctly it is able to support 750 lbs (340.20 kg).

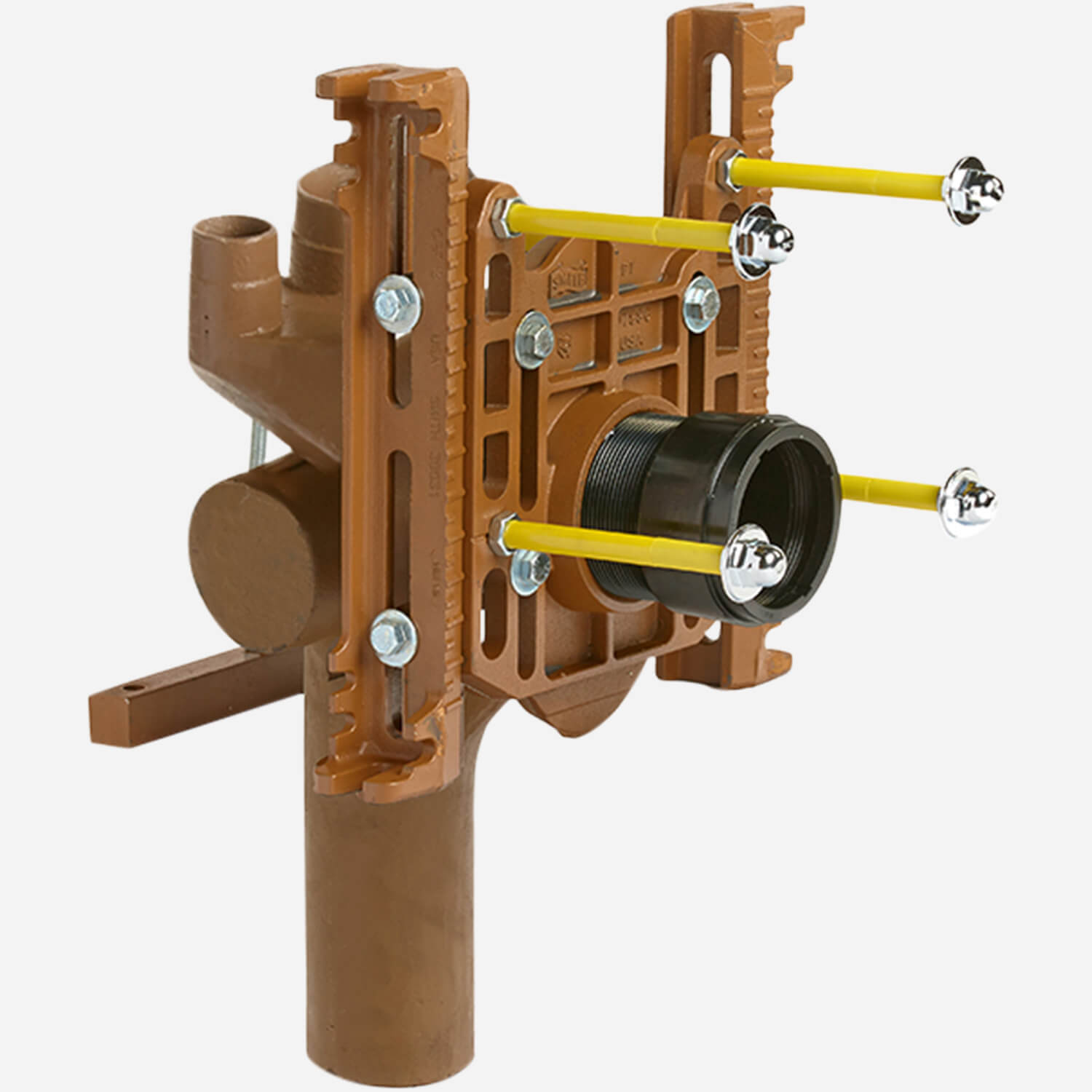

Figure 0240Y-M54-XX features no hub vertical fittings, side inlet, face plate, and side-mounted base assembly.
Figure 0240Y-M58-M54-XX features no hub vertical fittings, side inlet, face plate, side-mounted base assembly, adjustable nipple, and o-ring
Figure 0240-M54-XX features vertical fittings, side inlet, face plate, and side-mounted base assembly
Additional supports are available to facilitate much less than 750 lbs or as much as 1,000 lbs (454 kg) capacities.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Adjustable Support for 750 Lbs Weight Capacity Shallow Rough-In Type Siphon Jet Water Closet - No Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Support Assembly | 1 MB | |||
 | | Vertical Fittings with Side Inlet Extra Heavy Duty 750 Lbs. for Siphon Jet Water Closet [0240Y-M54-XX No Hub - Face Plate, Side-Mounted Base Support Assembly; 0240Y-M58-M54-XX also with Adjustable Nipple and O-Ring] | 0 | 141 KB | ||
| | Adjustable Support for 750 Lbs Weight Capacity Shallow Rough-In Type Siphon Jet Water Closet - No Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple and O-Ring | 0 | 1 MB | ||
| | Adjustable Support for 750 Lbs Weight Capacity Shallow Rough-In Type Siphon Jet Water Closet - Vertical Fittings with Side Inlet, Face Plate, and Side Mounted Base Support Assembly [0240L-M54-XX; 0240R-M54-XX; 0240D-M54-XX] | 0 | 1 MB | ||
| | Technical Data for Water Closet Supports | 0 | 2 MB | ||
| | Article: Water Closet Supports | 0 | 1 MB | ||
| | Article: Bariatric Water Closet Supports | 0 | 324 KB | ||
| | Article: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty Products | 0 | 420 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | 0200Y-M54-XX and 0200Y-M54-XK Series Bariatric Water Closet Supports | 0 | 1 MB | ||
| | Parts Order Guide for Water Closet Supports | 0 | 4 MB | ||
| | Order Guidelines for Water Closet Supports | 0 | 170 KB | ||
| | Quote Worksheet Smith Drainage Systems | 0 | 39 KB |
Specifications
| Product Type | Water Closet Support |
Models
No-Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Assembly [submittal]
0240LY-M54-XX | Left Hand
0240RY-M54-XX | Right Hand
0240DY-M54-XX | Double
No-Hub Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Assembly,
Adjustable Nipple and O-Ring [submittal]
0240LY-M58-M54-XX | Left Hand
0240RY-M58-M54-XX | Right Hand
0240DY-M54-M54-XX | Double
Vertical Fittings with Side Inlet, Face Plate, Side Mounted Base Assembly [submittal]
0240L-M54-XX | Left Hand
0240R-M54-XX | Right Hand
0240D-M54-XX | Double
Also, specify A x B dimensions
4 x 4 (100) x (100); 5 x 4 (125) x (100); 6 x 4 (150) x (100)
