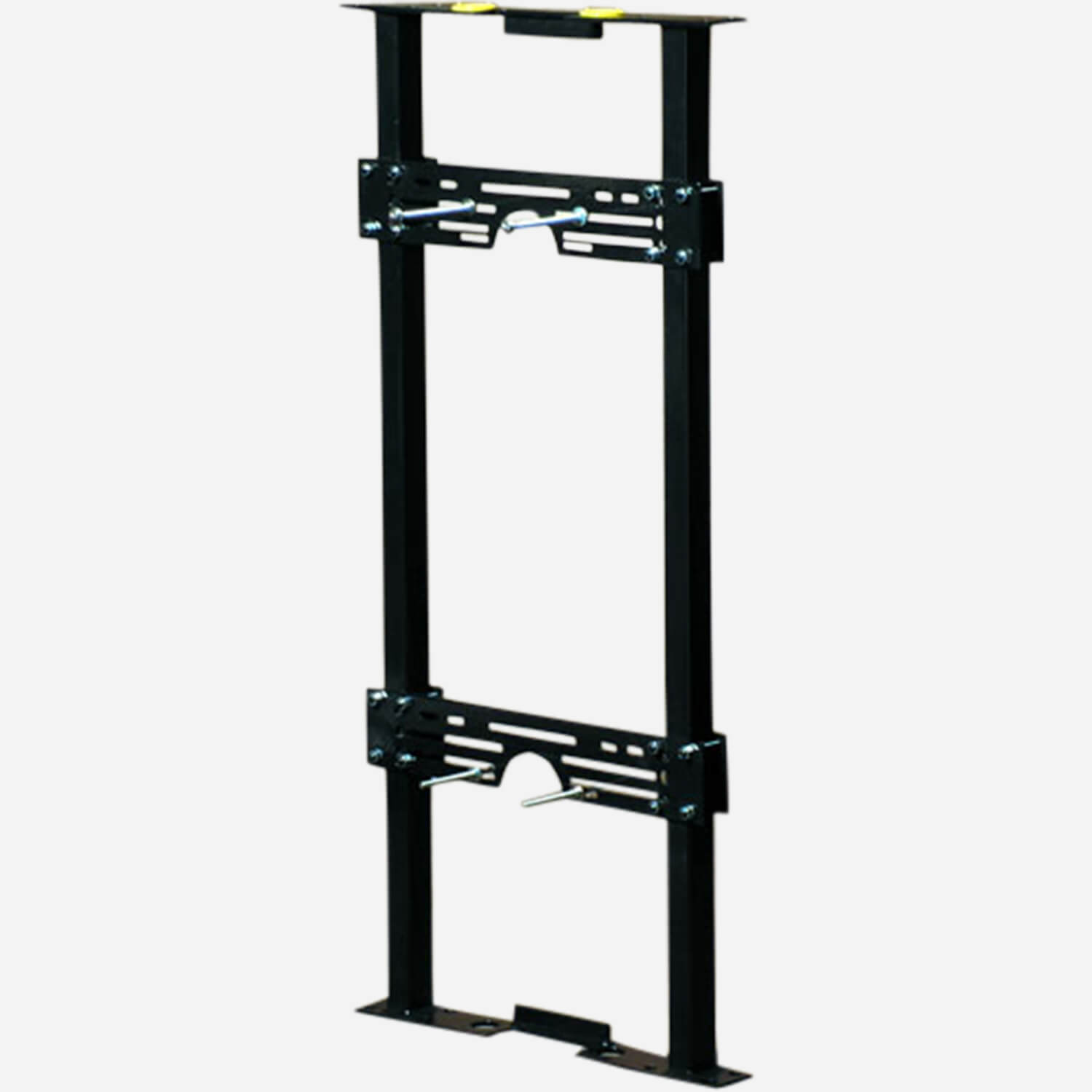

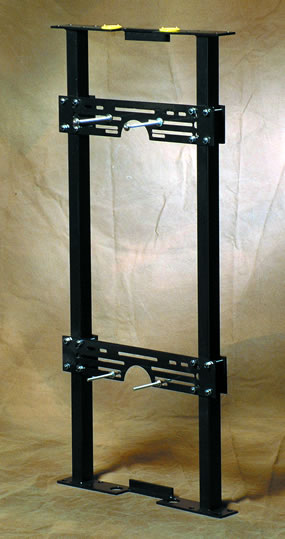

Labor Saver® with Supporting Studs for Blowout and Washout Urinals

Model 0614

Pre-assembled, Easy to Adjust, Good for Narrow Wall and Metal Stud Configurations.

This contractor labor saving support with supporting studs for blowout and washout urinals has been designed to speed up the installation process by using a one-piece, pre-assembled rigid steel frame construction. This innovative support is easy to adjust and allows for installation in narrow wall and metal stud configurations. Meets or exceeds the applicable requirement of ASME A112.6.1 M 1997 and is IAPMO Listed.

Pro Tip: The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.
