Water Hammer Arrestors

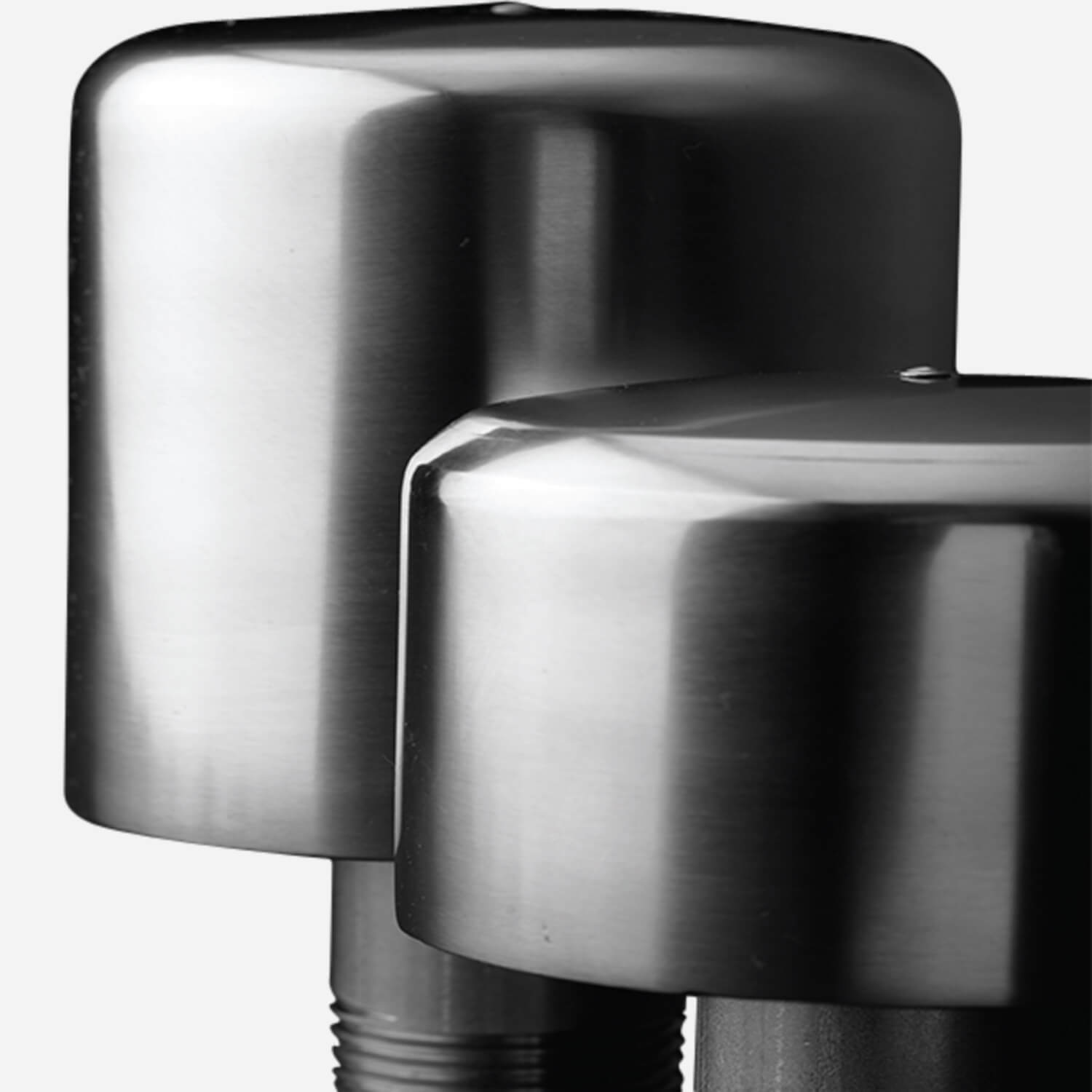

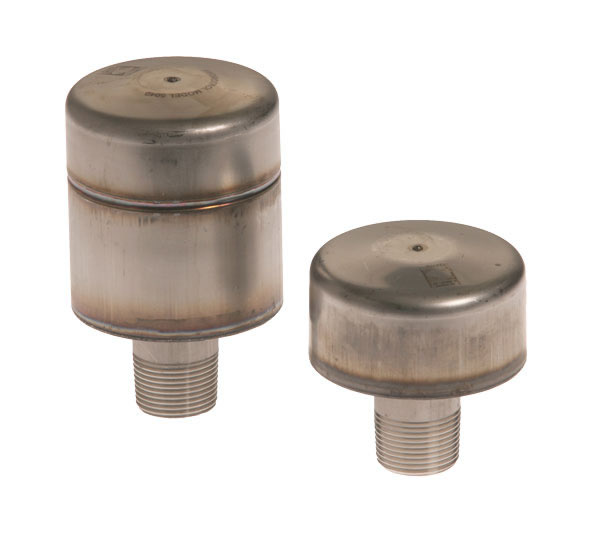

Available in 3/4" and 1" connection sizes and multiple capacities, these water hammer arrestors control the destructive shock of water hammer and reduce pressure in the piping system to safe levels. These Hydrotols arrestors are designed for installation in an upright position. Correctly sized units can be placed at specific locations throughout the water piping system.
Hydrotrols are pre-charged with nitrogen and permanently sealed at the factory. All hydrotrols are constructed entirely of stainless steel.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Water Hammer Arresters [5005 | 1-11 Fixtures Rating, 3/4"(19) Nipple; 5010 | 12-32 Fixtures, 1" (25) Nipple; 5020 | 33-60 Fixtures, 1" (25) Nipple; 5030 | 61-113 Fixtures, 1" (25) Nipple; 5040 | 114-154 Fixtures, 1" (25) Nipple] | 1 MB | |||
 | | Water Hammer Arresters [5005 | 1-11 Fixtures Rating, 3/4"(19) Nipple; 5010 | 12-32 Fixtures, 1" (25) Nipple; 5020 | 33-60 Fixtures, 1" (25) Nipple; 5030 | 61-113 Fixtures, 1" (25) Nipple; 5040 | 114-154 Fixtures, 1" (25) Nipple] | 0 | 23 KB | ||
 | | Water Hammer Arresters [5005 | 1-11 Fixtures Rating, 3/4"(19) Nipple; 5010 | 12-32 Fixtures, 1" (25) Nipple; 5020 | 33-60 Fixtures, 1" (25) Nipple; 5030 | 61-113 Fixtures, 1" (25) Nipple; 5040 | 114-154 Fixtures, 1" (25) Nipple] | 0 | 368 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
 | | Water Hammer Arresters [5005 | 1-11 Fixtures Rating, 3/4"(19) Nipple; 5010 | 12-32 Fixtures, 1" (25) Nipple; 5020 | 33-60 Fixtures, 1" (25) Nipple; 5030 | 61-113 Fixtures, 1" (25) Nipple; 5040 | 114-154 Fixtures, 1" (25) Nipple] | 0 | 23 KB | ||
| | Order Guidelines for Water Hammer Arresters | 0 | 118 KB | ||
| | Usage Guide for Water Hammer Arrestors | 0 | 307 KB |
Specifications
| Product Type | Water Hammer Arrester |
| Compliance/Certifications | ASSE 1010 |
Models
Figure Number with their specifications shown below
Figure 5005
Rated for 1 to 11 fixtures
Nipple 3/4" (19 mm)
Overall Height 3.18" (81 mm)
Figure 5010
Rated for 12 to 32 fixtures
Nipple 1" (25 mm)
Overall Height 3.93" (100 mm)
Figure 5020
Rated for 33 to 60 fixtures
Nipple 1" (25 mm)
Overall Height 4.30" (109 mm)
Figure 5030
Rated for 61 to 113 fixtures
Nipple 1" (25 mm)
Overall Height 5.25" (133 mm)
Figure 5040
Rated for 114 to 154 fixtures
Nipple 1" (25 mm)
Overall Height 5.57" (141 mm)
Figure 5050
Rated for 155 to 330 fixtures
Nipple 1" (25 mm)
Overall Height 6.53" (166 mm)
Answers
The 5005-5050 stainless steel bellows units can be used with most types of liquid conveyed in a piping distribution system. Therefore, if a shock is encountered, it can be controlled. When liquids other than water are involved, it is recommended that Smith’s Sales Engineering group be consulted for evaluation.
